Material: Aluminum Alloy
Type: insulation tension clamp
Brand Name: Wanxie
Color: Grey
I.D: NXJG-Q
Model Number: NXJG-Q
Place of Origin: China (Mainland)

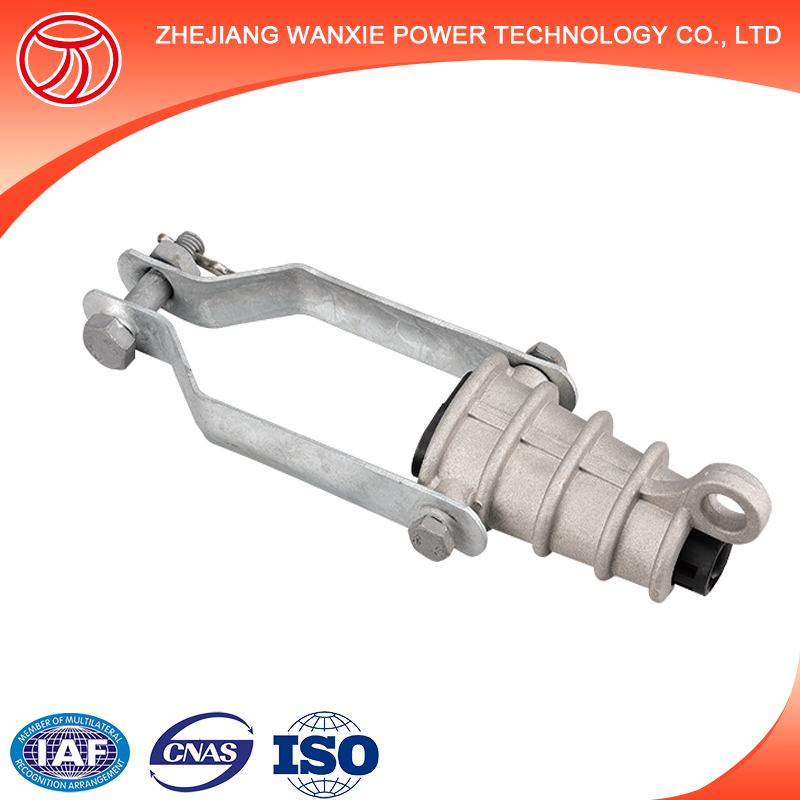

Product name: NXJG-Q series wedge type clamp insulation tension clamp dead end clamp
Material: AL
Color: Grey
Application wire: 35-240 sqmm
Feature: without strippint the insulating layer, directly installation
wedge core: 1KV 35-70

Specifications

NXJG-Q series wedge type clamp insulation tension clamp dead end clamp
NXJGQ series wedge type clamp insulation tension clamp dead end clamp

Application


        NXJ Series is suitable for strain clamp insulation string of 10kV aerial insulation aluminium core wire JKLYJ terminal or two ends fixing and tighten aerial insulation.

Structure feature

  1,the shell made of anti-oxidate high strength aluminum alloy.
  2,the core of wedge made of insulating reinforce plastics, withstand voltage: 18kV not breakdown one min.
  3,Not remove the insulation layer,AI-core wire are current use.
  4,without waste power
  5,Wedge structure

Specification

Strain clampstype

Specification(mm2)

Aerial insulation aluminiumconductor/1kV

Aerial insulation aluminiumconducor/10kV

Grip strength(kN)
Failure load (kN)
Conductor Outsite Dia(mm)
COnductor Outsite Dia(mm)
NXJ-1Q
25
8.4
14.8
2.5
10.5
35
9.8
15.8
3.4
50
11.2
17.1
4.6
70
12.8
18.8
6.7
NXJ-2Q
50
11.2
17.1
4.6
34.7
70
12.8
18.8
6.7
95
14.8
20.4
8.9
120
16.2
21.8
11.3
NXJ-3Q
120
16.2
21.8
11.3
43.4
150
18.2
23.4
13.6
185
20.2
25.0
17.3
240
22.6
27.2
22.5
