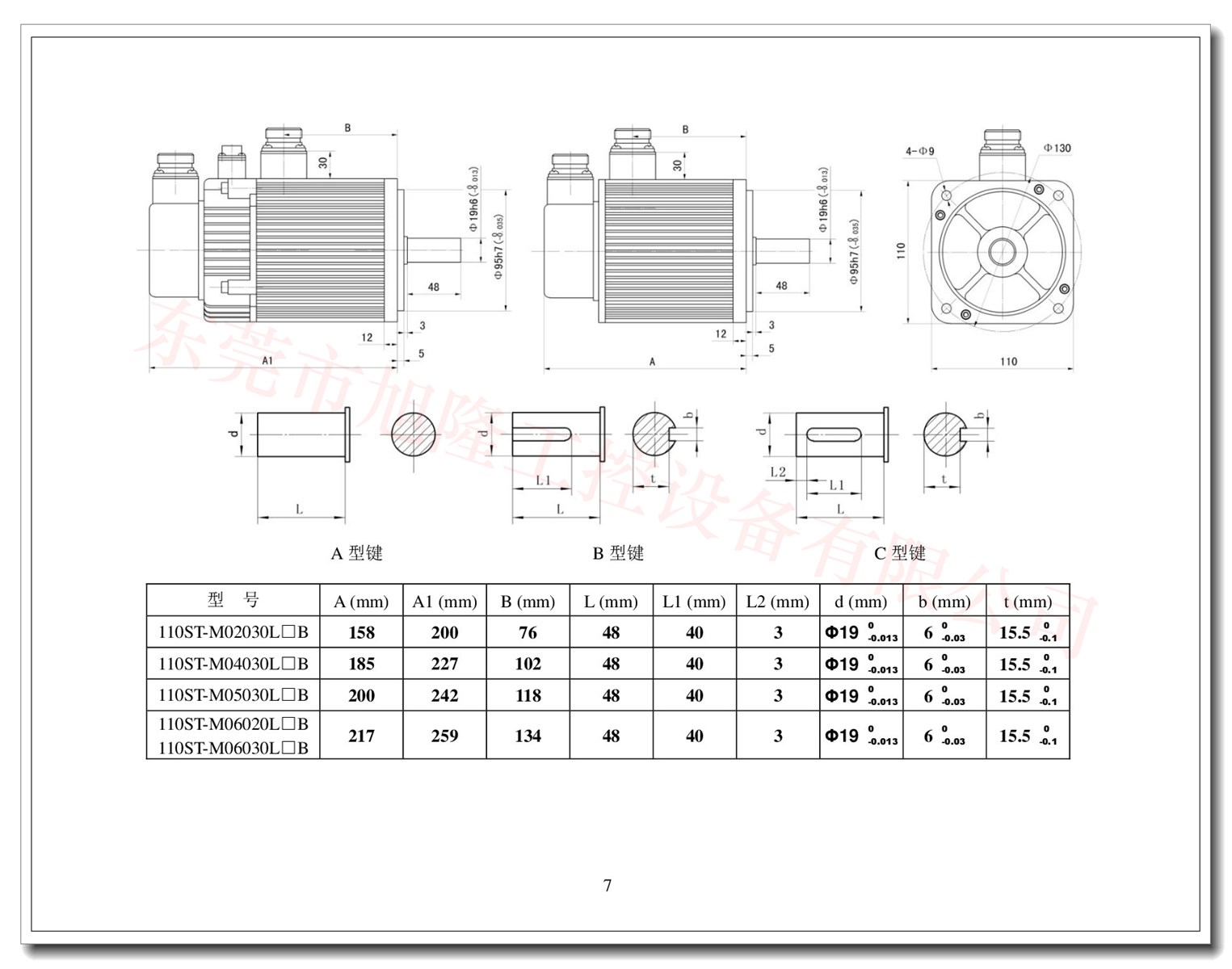

LB Series servo motor models coding principle
110	ST	-	M	020	30	L	F	B	Z	/C
(1)	(2)		(3)	(4)	(5)	(6)	(7)	(8)	(9)	(10)

(1).Stand no.

(2). AC permanent magnet synchronous servo motor

(3). Feedback element type

(4). Rated torque: three digits x 0.1 Nm

(5). Rated speed: two digits x 100 RPM

(6). Drive working voltage (VAC): 220

(7). the encoder code

(8). in the moment of inertia

(9). Installed electrical brake

(10). Slotting shaft extension end code, without the key code



the encoder code:

F: incremental photoelectric encoder composite (2500 c/T)

F1: province line increment compound photoelectric encoder (2500 c/T)

F5: incremental photoelectric encoder composite (5000 c/T)

M: Tamagawa serial protocol of absolute value of photoelectric encoder (17 bit/bit 33)

M1: Tamagawa serial protocol of absolute value of photoelectric encoder (23 - / - 33)

X: rotating transformer
