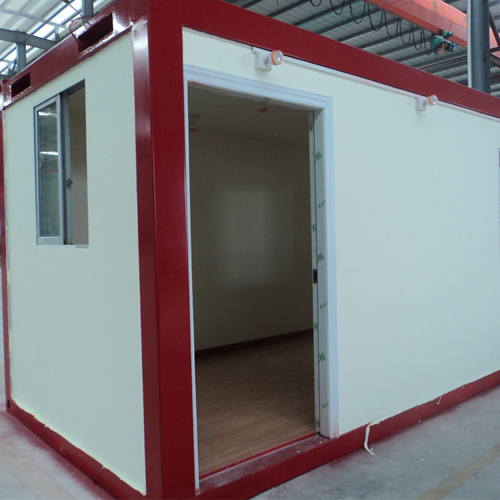

Metal frame assembled container house

Container house is a construction products which is Mobile,prefabricated and reusable.the house adopts standardized Design,factoryproduction,and takes cabinet as the elemental Unit.Container house is not only fit for individual usage,but also for Spacious room application formed by various horizontal and vertical Direction combination.Container house structure uses standardized Structural elements that are welded by profile steel or cold-formed Thin-wall steel.Combined container house is connected and fastened by High strength screw,so that house structure is simple,easy to Install.Container house is widely used for real estate development Company exhibition hall,product showroom,temporary reception Center,commercial temporary office,store and so on.

1. CONTAINERS Product Detail information

1) Steel Structure Panel material

the steel structure panel material included EPS sandwich panel,Rock Wool sandwich panel,PU sandwich panel,fiber-glass,steel sheet.

Steel structure panel material: including wall panel and roof panel

Sandwich core materials: EPS, PU, rock wool, glass wool

Thickness of sandwich panels: 50mm, 75mm, 100mm, 150mm

Single color plate material thickness: 0.376mm, 0.426mm, 0.476mm

SBS container house adopts international shipping container standard Corner fittings ISO 1161:1984. Design structure and materials of corner Fitting satisfy the requirements of GB/T5338,GB/T7392 and GB/T16563 Operation and test regulations.the minimum loaded area is between twist Lock and interface of corner fittings should be 800(1.24in2),when the Lifting device lift the container house at four top corner fitting Holes.

Other steel components:bottom steel frame, top steel frame, column steel sheet, galvnized cover sheet

FIBER GLASS

Glass wool adopts the most advanced centrifugation technique to fiber Glass fibrosis, Such products has large amount and very thin glass Fiber inside. Its total surface area is very large also, so as to Strengthen the resistance of the air, making the air unable to flow and Eliminating the air convection heat transfer; Similarly, huge friction Decays vibration of the sound propagation carriers - air quickly, which Ensures glass wool's good thermal insulation and sound absorption Effect. It is also good material for sound absorption and noise Reduction in steel structure building.

Rock Wool Sandwich Panel

Rock wool sandwich panel is not better than polystyrene and Polyurethane sandwich panel with regard to sole weight, heat conduction, Compressive strength, water absorption rate and other physical and Mechanical properties. however, it can be used under the service Temperature of 600. Besides, this type panel possesses the outstanding Feature of being level A incombustibility, thus rock wool sandwich panel Serviceable range is expanded to light weight construction materials for high requirement on fire-protection rating.
