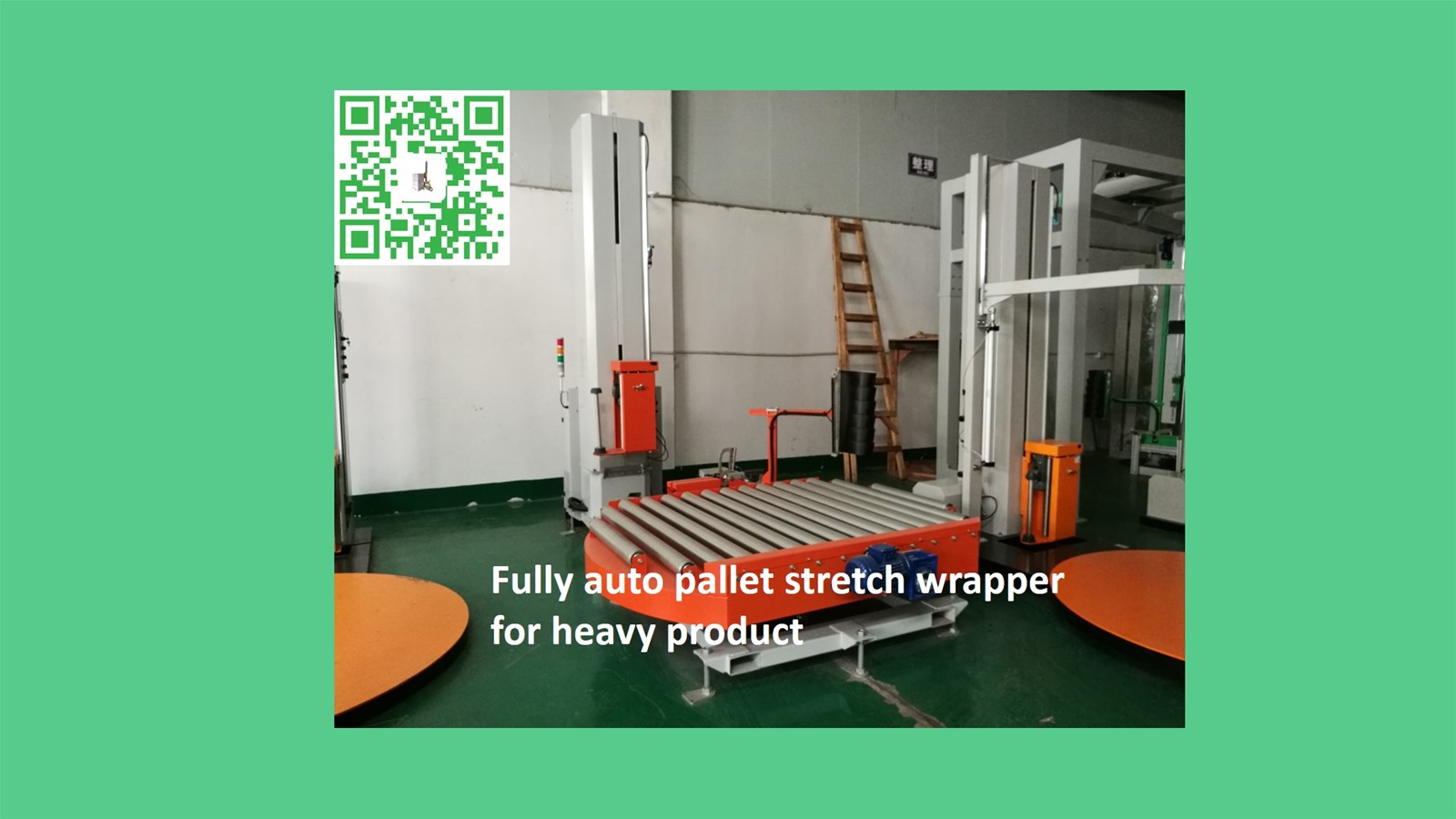

MS303H Fully auto conveyorized pallet wrapper for heavy product

MS303H Auto Turntable Stretch Wrapper is Conveyorized machines for automated unmanned packing lines. Controlled by the same Control system. Pallets can be automatically wrapped to be protected against Dust moisture, and achieve perfect exterior.It can weight reach 2000kg, Especially suitable for heavy products such as chemical industry, beverage, Hardware and electric appliance.

Product details

Export markets:   north America,south America,eastern Europe, Southeast asia, oceania,MID east asia, westem Europe;

Place of oriagn: Shenzhen city of china

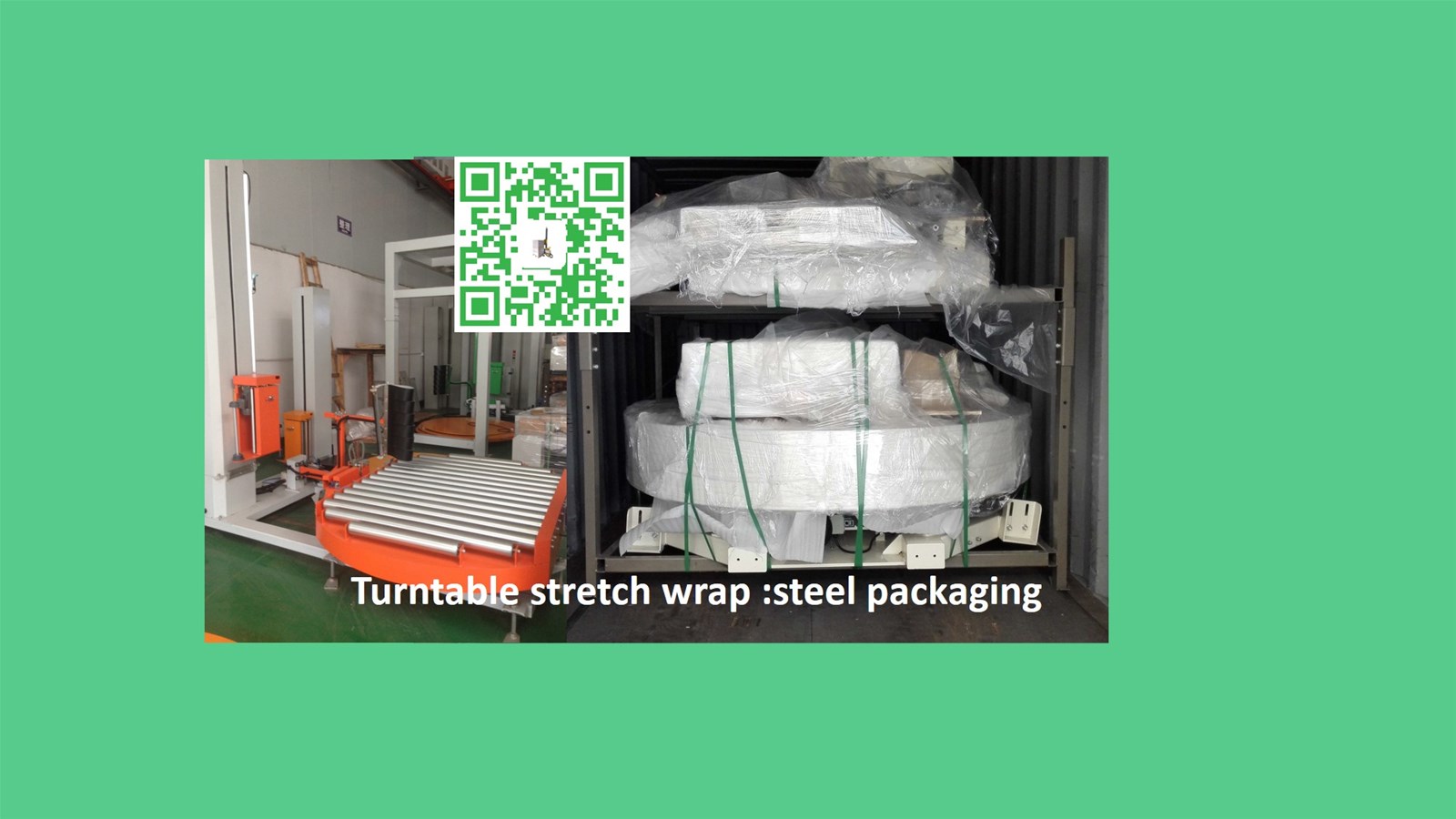

Packaging details: standard wooden package or steel packaging.

Quick details

Application: Chemical, beverage, electrical Appliances, hardware etc

 Model number:MS303h         Control softare:MQS

Turntable Diameter:2000mm,can beCustomized  wrapping Height:1800mm

Application material:Metal    Type: Turntable Stretch film wrapper

Control system:PLC

Motor brand:TCG/Taiwan       PLC:Mitsubishi/Janpan

after-sales service provided:engineers Available to over sea

Brand name:MQSPAC        Certification:ccc,ce,iso,

 Power:3PH,380v      turntable Speed:30-100 rpm/min

Product size:customized   Condition:new

Color:white and orange,can customized

Specifications

Item	Parameters
Turntable Diameter	2000mm,accept customized design
Pallet size	L(800-1200)mm,W(800-1200)mm,accept Customized design
Wrapping Height	1800mm,accept customized design
Loading Weight	2000kg,,accept customized design
Packing Speed	20-45 pallets per hour
Turntable Speed	0-15rpm,speed varibale, turntable soft Start&soft stop
Turntable Height	50050mm
Carriage Speed	0-3m/min
Wrap Set	Wrapping cycles /top wraps /bottom Wraps /overwrap
Air Press	0.4~0.7 Mpa
Cut Method	Heater
Control System	PLC program logic control+Touch Screen
Working Mode	Fully Auto unmanual
Power	3PH,380VAC(optional),50/60Hz,3kw,20A
Machine Weight	1350kg

2. Professional Fully Auto Turntable Pallet Wrapper Control Introduction



1. Turntable diameter 2000mm and/or wrap Height 2400mm, 2600mm, 2900mm.

2. Touch sreen user interface and/or Standalone electric box.

3. Safety fencing for better protection of Operators.

4. Infeed/outfeed conveyors.

5.Controlled by same control system,pallets Can be automatically wrapped  to be Protected against dust&moisture,and achieve perfect exterior looking;

6.Widely used to enhance work Efficiency,reduce labor cost and raise packing grades,in industries such as Chemicals,electric&electronic,food&beverage, paper making,etc;

7.MT107 toP sheet dispenser could be Ordered independently to go with present wrapper.

8Automatic  Stretch film apply&cut,pneumatically driven,remote control device Fitted;

9.Film carriage with safety door, open the Door namely stop, safe in operation and protection in place;



10Automatic stretch film apply & Cut,pneumatically driven, unmanned packaging process,Lean cost;



11Equipment adopting rotary supporting Structure is designed, bearing weighing, smooth running, low noise, Durable,  low failure rate, suitable for Various environment;

12.Accept wrapping machine custom design,Such as Color,Configuration,Performance,Appearance,Material,Wrapping height,Loading weight,Control system,Pallet size and so on.

FAQ.

1)      how can I get the training after I order the machine?

A:machine manual and operation CD will be supplied with you for each machine~!

B:we have Processional engineer team to supply 24 hours service online

C:engineer Available to service machine oversea

D:welcome come to our factory to get training in any time~!



UnderCFR or CIF terms,we are responsible for shipping from china Port to the destination port.Under FOB/EXW terms,clients shall arrange shipment by themselves or their agent.

3)      how is the packing?

Water-proof Plastic film package with foam protection in each corner.

Solid seaworthy Wood box package with PET belt

Save space as Much as possible for container loading

We are professional manufacturer of  Wrap machines with export license.

5)      Where is your factory Located?how can I visit there?

Our factory is located in ShenZhen city,Guangdong Province.It will take 30mins from ShenZhen International airport,2 hours from GuangZhou.

6)      Can you do OEM?

Yes,we can do OEM products.It's no problem.

7)I never use this Kind of wrap machine before,is it easy to learn?

User-

Friendly English manual and operation video Will be send together with the machine.If there is still and question,we can Talk through phone or skype or wechat or whatsapp.

Moreover,you could come to our factory to Learn how to use it before shipment.Our technician will give you professional Guidance.

8)      how Could I know if this machine is suitable for me?

Before ording, we will provide every Details of the orbital wrap machine for you reference,or you could tell us your Detailed requirement,our technician will recommend the most suitable machine For you.Futhermore, before shipment, we can pre-test the equipment to see if it Meets your requirements

MQSPAC is the professional manufacturer of Turntable pallet wrapping machine and,if you need any support our help,pls Just feel free to contact with me

MS303H Turntable stretch wrapper Operation Video:

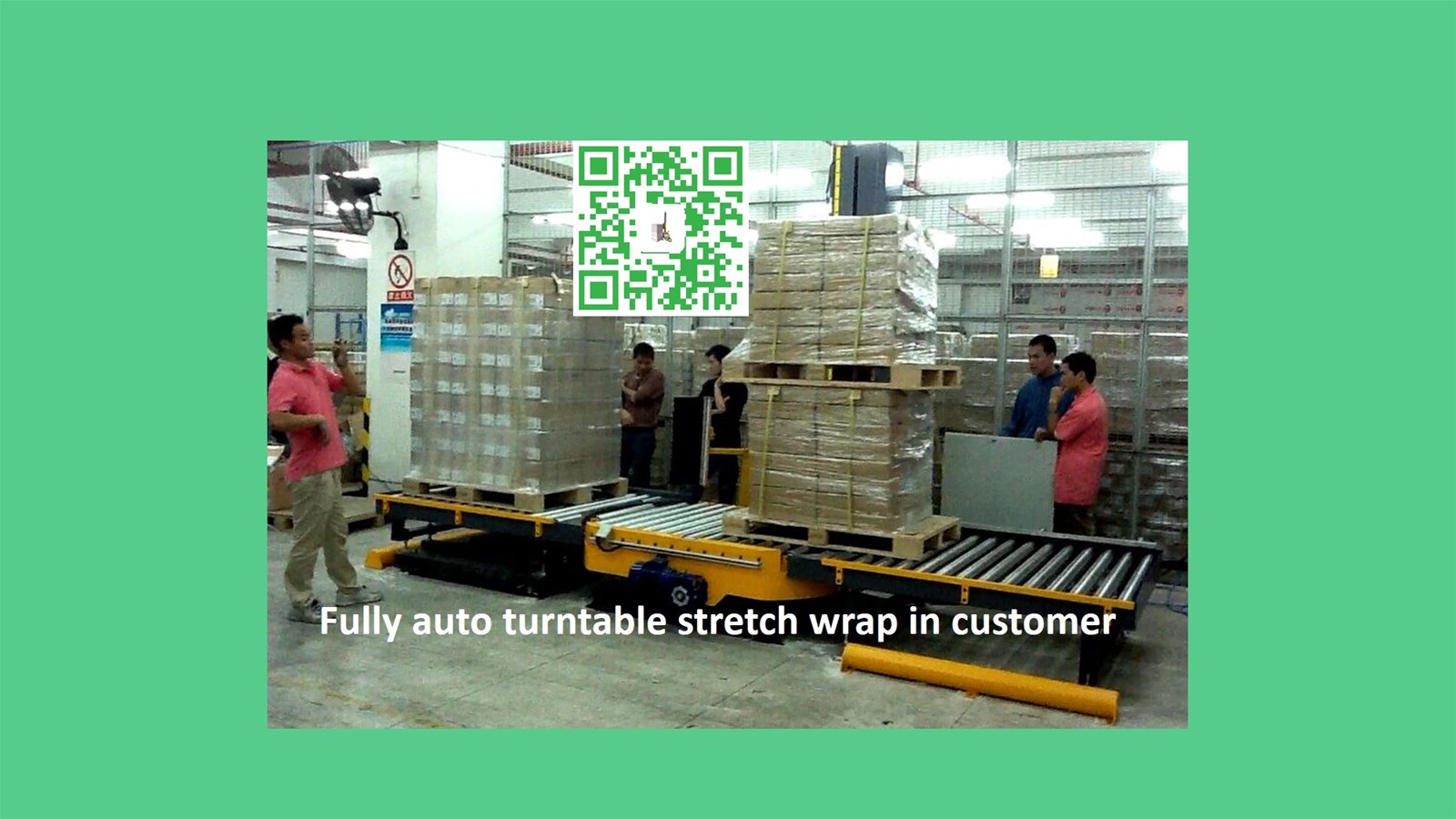

Fully auto turnatbel stretch wrap details:
