Type: | Wrapping Machine |
---|---|
Brand Name: | mqspac |
Packaging Material: | Wood |
Packaging Type: | adhesive tape |
Application: | Beverage,Chemical,Food,Medical |
Condition: | New |
After-sales Service Provided: | Engineers available to service machinery overseas |
Certification: | iso9001 |
Weight: | 450kg |
Dimension(L*W*H): | 1680x1300x1490mm |
Model Number: | MA208 |
Place of Origin: | China (Mainland) |
Power: | 1.5 |
Voltage: | 22OV |
Driven Type: | Electric |
Automatic Grade: | Automatic |
COLOR: | WHITE |
Ring Diameter: | 400mm,optional 300mm,500mm,600mm, |
After-sales service provided: | engineers available to over sea |
Product size: | 200*200MM |
Quick Details
Specifications

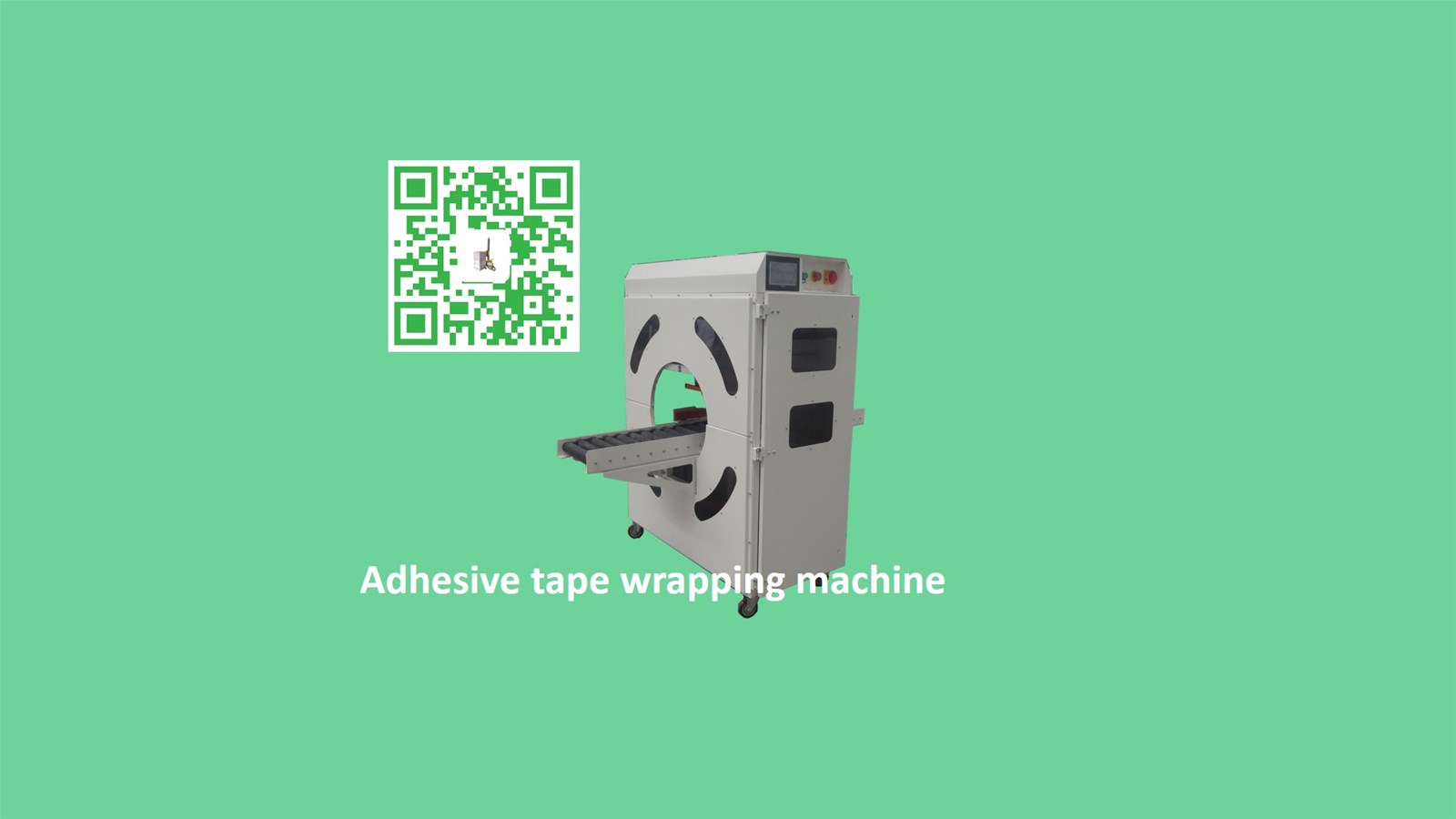

MA208 Tape Wrapping Machine
MA208 Tape Wrapping Machine is made for Smallersquare type products such as carton box. Machine automatically clamp and Cut adhesive tape. Motorized roller or belt conveyors for products in feeding and out feeding. A press on the foot petal starts the wrapping Process.Especially suitable for electronics, food, plastic, etc.
Product details
Export markets: north America,south America,eastern Europe, Southeast asia, oceania,MID east asia, westem Europe;
Place of oriagn: Shenzhen city of china
Packaging details: standard wooden package;
Quick details
Application: especially suitable for Electronics, food, plastic, etc Model number:MA208 Control softare:MQS
Ring Diameter:400mm,optional 300mm,500mm,600mm,
Application material:Metal Type:Adhesive tape Orbital wrap machine
Control system: PLC control
Motor brand:TCG/Taiwan PLC: Panasonic/Janpan
after-sales service provided:engineers Available to over sea
Brand name:MQSPAC Certification:ccc,ce,iso,sgs,ul
Power:1PH,220V,0.75KW Rotation Speed:25-80 rpm
Product size:200 *200 mm Condition:new
Color:white and orrange
Specifications
1. Technical Parameter
Item |
Parameters |
Ring Diameter |
400mm,600mm,accept customized design |
Wrapping size |
L500mm,W200mm,H200mm,accept customized Design |
Tape size |
48mm,60mm,72mm,accept customized Design |
Conveyor Weight |
50kg,accept customized design |
Rotation Speed |
30-80 rpm variable |
Conveyor Height |
Customied design |
Control System |
PLC program logic control |
Air Press |
0.4~0.7 Mpa |
Control System |
PLC program logic control+Touch Screen |
Working Mode |
Fully-auto/unmanual |
Power |
1PH,220VAC(optional),50/60Hz,0.75kw,20A |
Machine Weight |
400kg |
2. Professional Adhesive Tape Wrapper Control Introduction
A;Tape wrapper Can Be used for tape banding;
B: Machine Adopt International advanced manufacturing;
C: Automatic Adhesive tape apply&cut,pneumatically driven;
D: Ideal for Wrapping of suqare type such as carton box, plastic box etc;
E: Accept tape Wrapping machine custom design, such as color, configuration, performance, appearance, material, conveyor height, loading weight, control system, wrapping size and so on.
FAQ.
1) how can I get the training after I order the machine?
A:machine manual and operation CD will be supplied with you for each machine~!
B:we have Processional engineer team to supply 24 hours service online
C:engineer Available to service machine oversea
D:welcome come to our factory to get training in any time~!
UnderCFR or CIF terms,we are responsible for shipping from china Port to the destination port.Under FOB/EXW terms,clients shall arrange shipment by themselves or their agent.

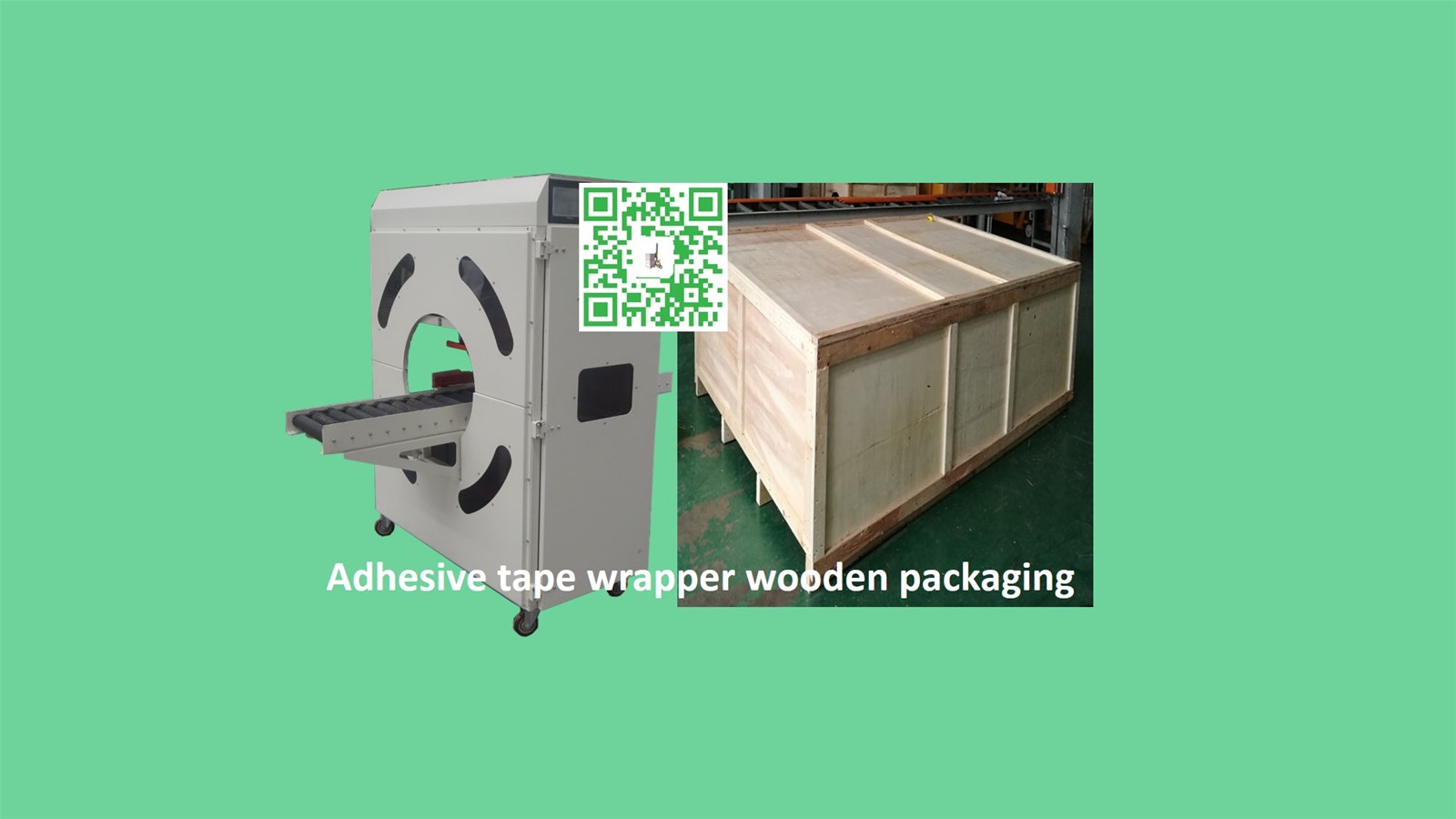

3) how is the packing?
Solid seaworthy wood box Package with PET belt
Save space as much as possible for container loading
We are professional manufacturer of Wrap machines with export license.
5) Where is your factory Located?how can I visit there?
Our factory is located in ShenZhen city,Guangdong Province.It will take 30mins from ShenZhen International airport,2 hours from GuangZhou.
6) Can you do OEM?
Yes,we can do OEM products.It's no problem.
7)I never use this Kind of wrap machine before,is it easy to learn?
User-
Friendly English manual and operation video Will be send together with the machine.If there is still and question,we can Talk through phone or skype or wechat or whatsapp.
Moreover,you could come to our factory to Learn how to use it before shipment.Our technician will give you professional Guidance.
8) how Could I know if this machine is suitable for me?
Before ording, we will provide every Details of the orbital wrap machine for you reference,or you could tell us your Detailed requirement,our technician will recommend the most suitable machine For you.Futhermore, before shipment, we can pre-test the equipment to see if it Meets your requirements
MQSPAC is the professional manufacturer of adhesive Tape wrapper machine and,if you need any support our help,pls just feel free to contact with me

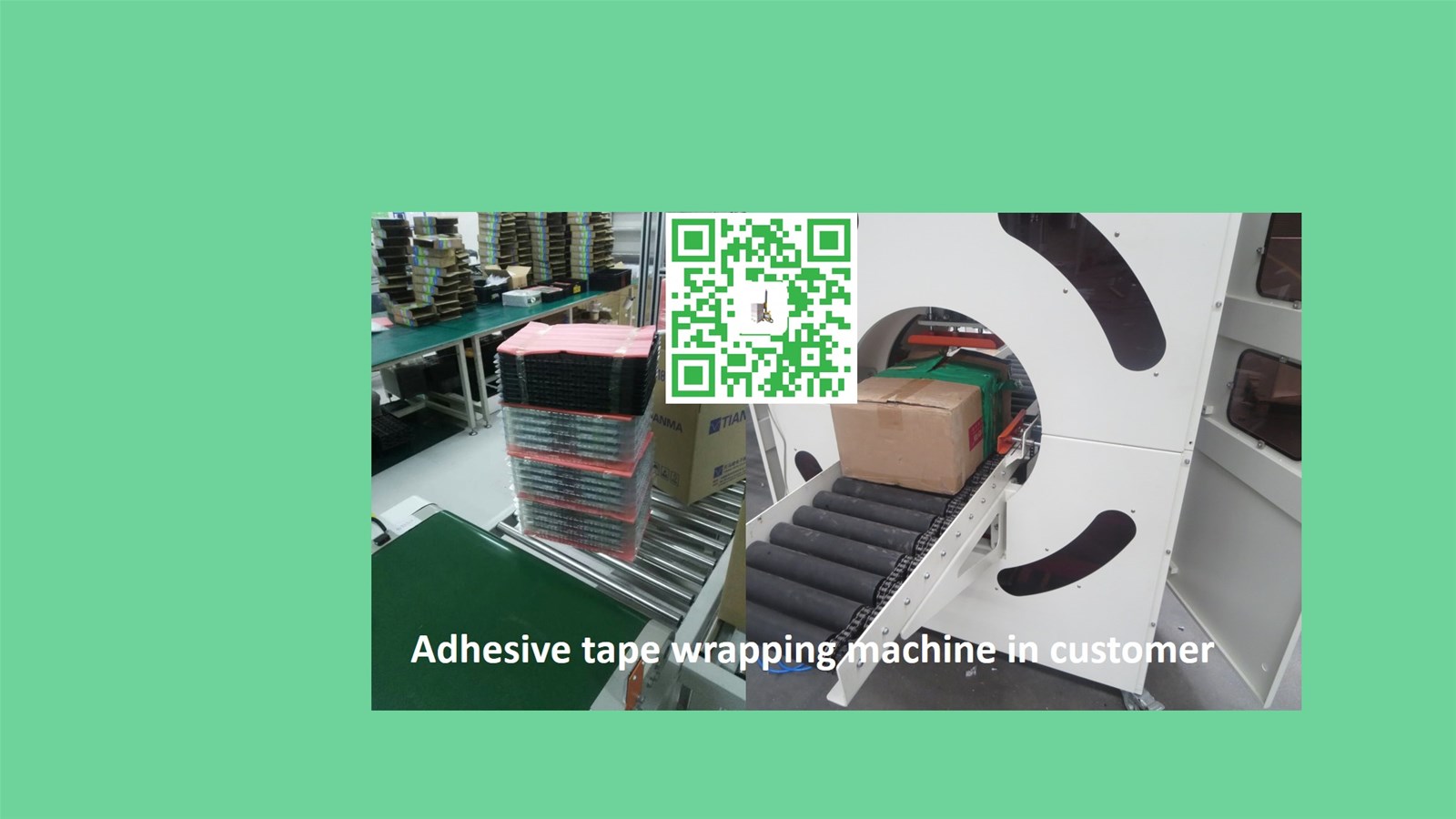

Adhesive tape operation video:
Adhesive Tape wrapper details:
