Brand

WECAN

General

1

Model

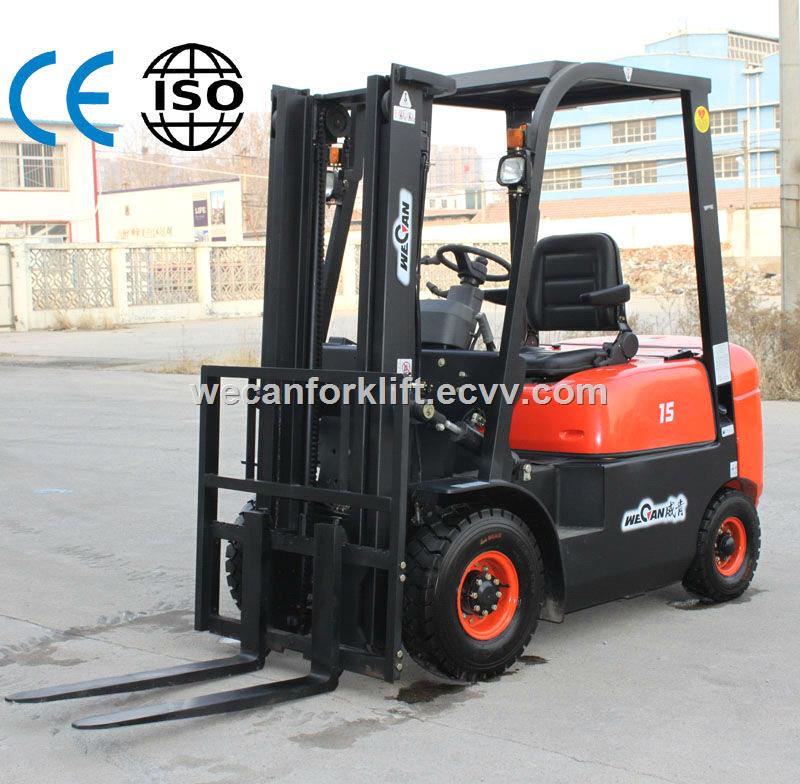

CPCD15FR

2

Rated capacity

kg

1500

3

Load center

mm

500

4

Power type

Diesel

5

Transmission

Hydraulic

Dimensions

6

Lifting height (H1)

mm

3000

7

Free lifting height

mm

70

8

Min. Turning radius

mm

2000

9

Min. under-clearance

mm

110

10

Min. Right angle aisle width

mm

1770

11

Overall length (including fork) (A)

mm

3195

12

Overall width (B)

mm

1085

13

Overall height (mast lowered) (H)

mm

1995

14

Overall height (mast raised) (H2)

mm

4030

15

Overall height (overhead guard) (H3)

mm

2085

16

Fork length (A3)

mm

1070

17

Fork width (B3)

mm

122

18

Fork thickness (H4)

mm

40

Performance

19

Max driving speed (with/without load)

km/h

14.5/15

20

Max lifting speed (with load)

mm/s

500

21

Max traction (with/without load)

kN

14.4/8.4

22

Gradeability (with/without load)

%

15/20

23

Tilting angles (forward/backward) (/)

6/12

24

Total weight

kg

2650

Engine

25

Engine model

China Engine

26

Power

kw

30

27

Rated speed

rpm

2600

28

Displacement

L

2.07

29

No. of cylinder

4

Wheel

30

Front overhang (A1)

mm

430

31

Wheel base (A2)

mm

1450

32

Front tread (B1)

mm

890

33

Rear tread (B2)

mm

920

34

Front tire

mm

6.50-10-10

35

Rear tire

mm

5.00-8-10
