| Power Souce: | LP Gas Engine |
|---|---|
| Type: | Powered Pallet Truck |
| Brand Name: | WECAN |
| Condition: | New |
| Year: | 2017 |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Certification: | CE |
| Overall Dimensions: | 3605*1160*2095 |
| Fork Width: | 122MM |
| Fork Length: | 1070MM |
| Min. Lifting Height: | 60MM |
| Max. Lifting Height: | 3000MM |
| Rated Loading Capacity: | 2000KG |
| Model Number: | CPQYD20FR |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

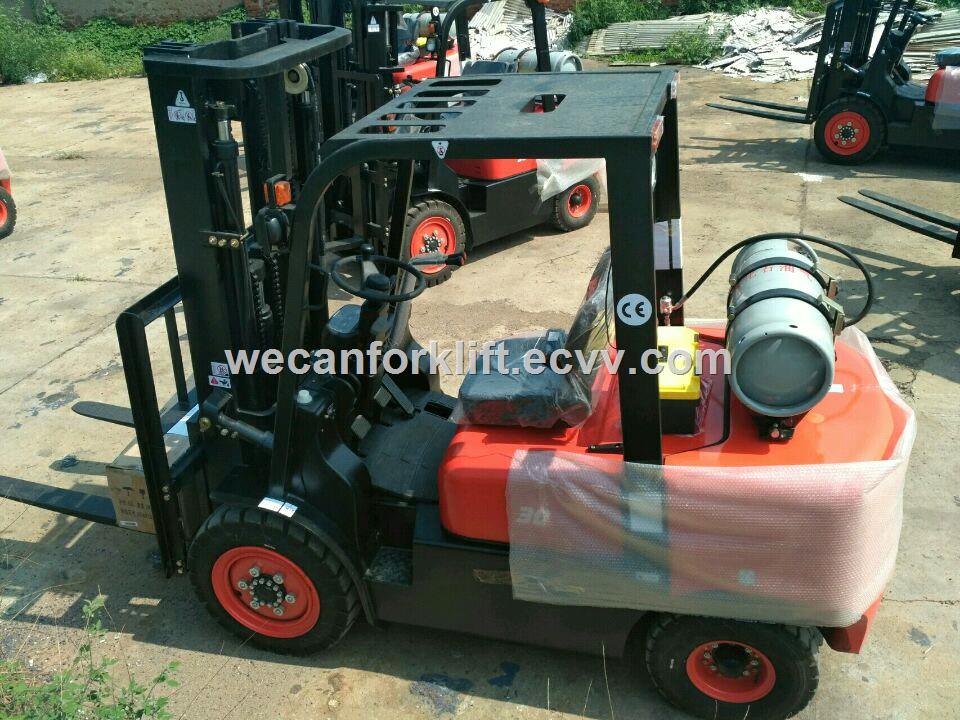

WECAN 2 Ton LPG & Gasoline Forklift Main Characteristics
LPG and gasoline as fuel, more environmental
Seat with safety belt and steady bar
Low center of gravity, small turning radius, more stable and reliable
Safe overhead guard
Hydraulic gear-box and hydraulic steering
Dual air filter
Streamline balance weight
for LPG/Gasoline forklift, you can choose China engine, Nissan K25 engine and Mitsubishi 4G64 engine
Optional mast: 2-stage3.3m/3.5m/4mmast; 3-stage4.5m/5m/5.5m/6m/7.3mmast.
WECAN 2 Ton LPG & Gasoline Forklift Main Specification
Brand |
WECAN | |||
General |
1 |
Model |
CPQYD20G | |
2 |
Rated capacity |
2000kg |
4409lb | |
3 |
Load center |
500mm |
19.7in | |
4 |
Power type |
Gasoline/LPG |
Gasoline/LPG | |
5 |
Transmission |
Hydraulic |
Hydraulic | |
Dimensions |
6 |
Lifting height (H1) |
3000mm |
118.1in |
7 |
Free lifting height |
40mm |
1.57in | |
8 |
Min. Turning radius |
2400mm |
94.5in | |
9 |
Min. under-clearance |
110mm |
4.33in | |
10 |
Min. Right angle aisle width |
2090mm |
82.3in | |
11 |
Overall length (including fork) (A) |
3485mm |
137.2in | |
12 |
Overall width (B) |
1160mm |
45.7in | |
13 |
Overall height (mast lowered) (H) |
2190mm |
86.2in | |
14 |
Overall height (mast raised) (H2) |
4080mm |
160.6in | |
15 |
Overall height (overhead guard) (H3) |
2165mm |
85.2in | |
16 |
Fork length (A3) |
1070mm |
42.1in | |
17 |
Fork width (B3) |
100mm |
3.94in | |
18 |
Fork thickness (H4) |
40mm |
1.57in | |
Performance |
19 |
Max. Driving speed (with/without load) |
17/19km/h |
10.6/11.8mph |
20 |
Max. Lifting speed (with load) |
400mm/s |
0.89mph | |
21 |
Max. Traction (with/without load) |
14/9kn |
14/9kn | |
22 |
Gradeability (with/without load) |
15/20% |
15/20% | |
23 |
Tilting angles (forward/backward) (/) |
6/12 |
6/12 | |
24 |
Total weight |
3320kg |
7319lb | |
Engine |
25 |
Engine model |
China Gasoline Engine |
China Gasoline Engine |
26 |
Power |
41kw |
55ph | |
27 |
Rated speed |
2800rpm |
2800rpm | |
28 |
Displacement |
2.237L |
2.237L | |
29 |
No. of cylinder |
4 |
4 | |
Wheel |
30 |
Front overhang (A1) |
450mm |
17.7in |
31 |
Wheel base (A2) |
1640mm |
64.6in | |
32 |
Front tread (B1) |
970mm |
38.2in | |
33 |
Rear tread (B2) |
970mm |
38.2in | |
34 |
Front tire |
7.00-12 |
7.00-12 | |
35 |
Rear tire |
6.00-9 |
6.00-9 | |
WECAN 2Ton LPG & Gasoline Forklift Optional Items
ENGINE |
EUROCHIAN ENGINE, EURO CHIAN ENGINE, EURO JAPAN ISUZE ENGINE, EURO JAPAN YANMAR ENGINE, etc. | |
MAST HEIGHT |
2-STAGE MASTS:
2-STAGE MAST 3.3M 2-STAGE MAST 3.5M 2-STAGE MAST 4.0M 2-STAGE MAST 4.5M 2-STAGE MAST 5.0M |
3-STAGE MASTS:
3-STAGE MAST 4.5M 3-STAGE MAST 5.5M 3-STAGE MAST 6.0M 3-STAGE MAST 7.3M
|
MAST LENGTH |
1.37M FORK 1.52M FORK 1.82M FORK 2.0M FORK | |
ACCESSORIES |
FULL-FREE LIFT MAST; SIDE SHIFT; FORK POSITIONER, ETC. | |
OTHER ITEMS |
up EXHAUST; SOLID TIRE, ETC | |
