| Standard or Nonstandard: | Standard |
|---|---|
| Structure: | H type |
| Material: | Aluminium |
| Usage: | Heavy Duty |
| Brand Name: | Wanxie |
| Model Number: | LH22 |
| Place of Origin: | China (Mainland) |
| Product name: | Wanxie LH22 H-type parallel groove clamp wire connector line hook clamp |
| Material: | AL |
| Color: | white |
| Outside diameter: | 4.8-25.9mm |
| Feature: | Small resistance, saving energy, safe and reliable operation |
| Certification: | ISO9001 |
| Sample: | Free |
Quick Details
Specifications

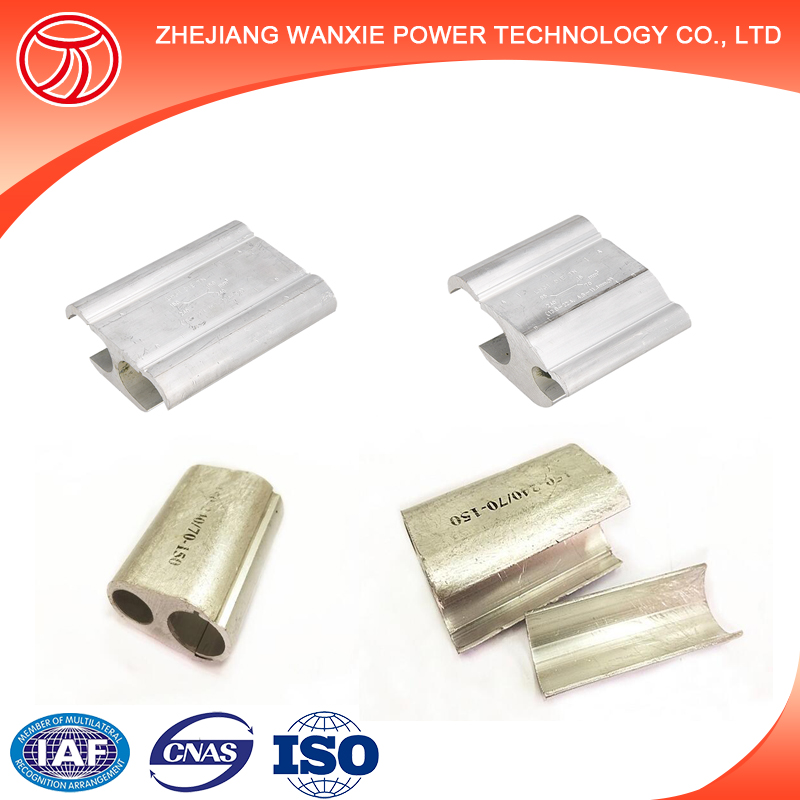

Wanxie LH22 H-type parallel groove clamp wire connector line hook clamp
Product Description
Performance Feature
1. Small resistance, saving energy, safe and reliable operation
2. with special tools for installation, to ensure the quality of the installation
3. Suitable for a variety of wires connection
Application
LH series specific forms parallel groove clamp is suitable for unendure force splicaing and branch on the aerial wire, beinig used with insulation cover, it's action is insulation protection.
| Type | Specification | Crimping | Silicone Rubber Insulation Shield type | |||||||
| A line hook | B line hook | Stamper | Number of Times |
Length (mm1) |
Width | Thick | ||||
| Outside Diameter (mm) |
Sectional Area (mm) |
Outside Diameter (mm) |
Sectional Area 9mm) | |||||||
| LH-11 | 4.8-8.2 | 16-35 | 4.8-8.2 | 16-35 | 0-0 | 2 | 44 | 41.5 | 15 | LHZ-1 |
| LH-21 | 8.3-14.0 | 50-95 | 4.8-9.6 | 16-50 | 1-2 | 3 | 63 | 58 | 22 | LHZ-2 |
| LH-22 | 10.0-14.0 | 50-95 | 10.0-14.0 | 50-95 | 1-2 | 3 | 63 | 63 | 21 | LHZ-2 |
| LH-31 | 13.0-22.4 | 95-240 | 4.8-11.4 | 16-70 | 3-5 | 3 | 63 | 80 | 32 | LHZ-2 |
| LH-32 | 13.0-22.4 | 95-240 | 11.6-16.0 | 70-150 | 3-5 | 3 | 63 | 83 | 32 | LHZ-2 |
| LH-41 | 16.2-22.4 | 150-240 | 16.2-22.4 | 150-240 | 3-5 | 4 | 114 | 90 | 32 | LHZ-3 |
| LH-51 | 22.4-25.9 | 300-400 | 10.0-14.5 | 70-120 | 3-5 | 3 | 89 | LHZ-3 | ||
| LH-52 | 22.4-25.9 | 300-400 | 14.6-18.0 | 120-185 | 3-5 | 3 | 89 | LHZ-3 | ||
| LH-53 | 22.4-25.9 | 300-400 | 18.9-22.4 | 185-240 | 3-5 | 4 | 118 | LHZ-3 | ||
| LH-55 | 22.4-25.9 | 300-400 | 22.4-25.9 | 300-400 | 3-5 | 4 | 118 | LHZ-3 | ||
Zhejiang Wanxie Power Technology Co., Ltd is a professional manufactuer which has 5 years OEM exprience. Our products sells mainly in Europe, America,South Africa and so on. Our company has products of all specifications and its major producTs are overhead insulator fittings, poleline accessories, power line fittings, pocelain insulators and so on. the company has a strong technological power, top-ranking production.and has got the certificate of International Quality System ISO9001.
1, Are you a factory?
We are a professional manufacture.
2, how about the payment terms?
Normally 30% deposit in advance, the balance should be paid before shipment.
3, how about delivery time?
Depend on your order quantity. We can finish order very fast.
4, Can I get a sample?
We can supply 1 or 2 samples for free, client only need to pay express fee.
5, Can you make it according to my drawing?
of course, we can make various products according to your demands.
