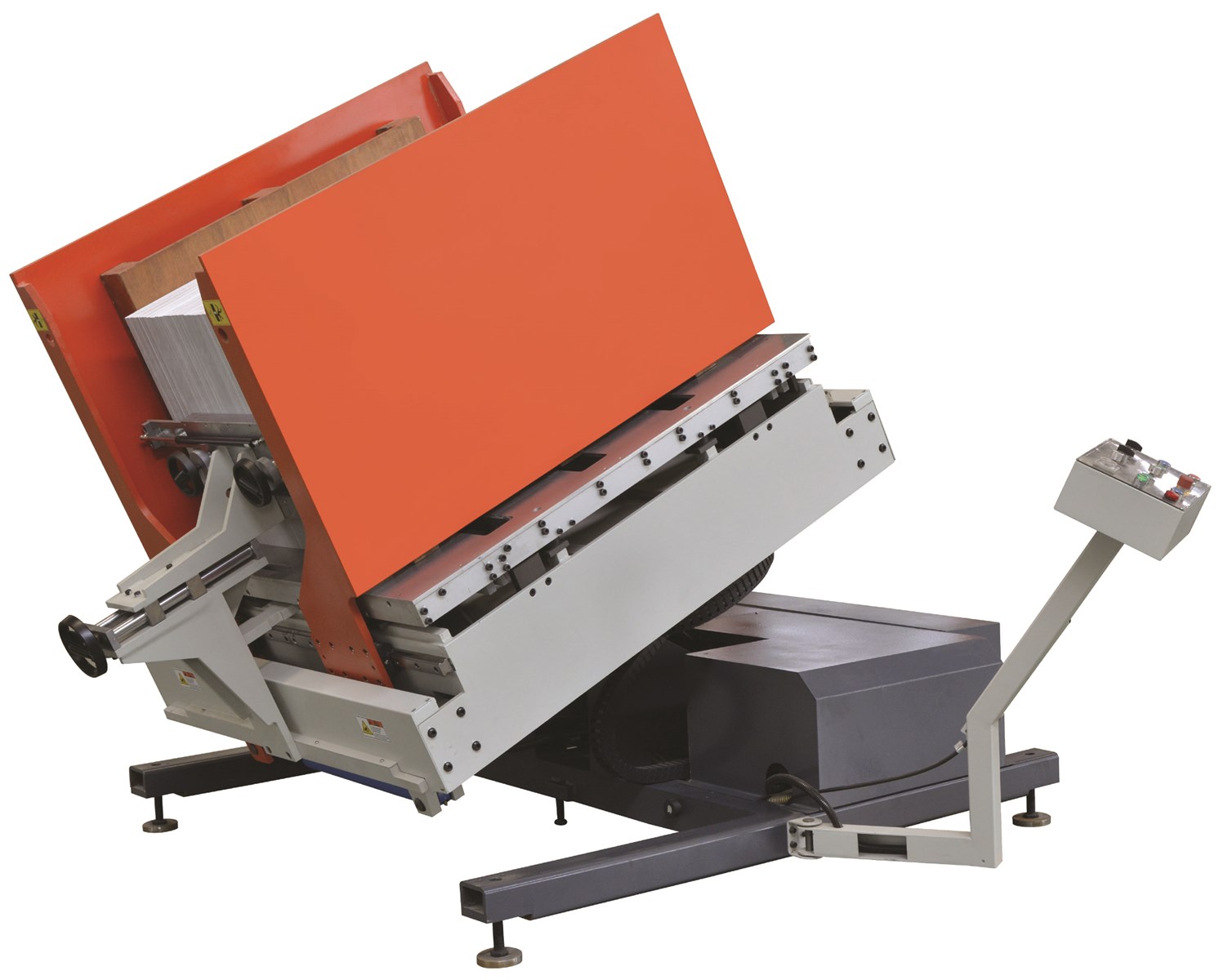

Pile turner machine for dust removing, Paper Separation, aligning and pile turning in printing and packaging

Application:
Pile turner machine is mainly used for dust removing, Paper Separation, aligning and pile turning in printing and packaging industry. It is the necessary equipment to improve the work efficiency and printing quality.



Features:
1.Dust Removing

It can remove the impurities such as paper fibers, paper scraps, and printing powders.

Before printing: the machine can be used for removing the paper fibers, paper scraps and dust to improve the printing quality and reduce the defection rate about 80%.

after printing: the machine can remove the printing powders, give a fast dry to the ink and prevents sticking together as well as paper back pollution. It can stop impurities such as paper fibers, paper scraps go into the printing machine to increase the service life of printing machine
2.Paper Separation

after the vibration and air jetting, the pile is filled with air cushion between the sheets by which the mis-feeding and double-sheeting can be avoided
3. Aligning

with the vibration platform and high pressure air jetting, the whole pile paper can be aligned at one time.
4. Pile Turning

for the piles of double-sided printing paper, the pile turning will improve the work efficiency and lower the intensity of work.the working environment will be much better for workers

5.High Efficiency, Easy Operation

for average, the processes of pile turning, powder removing, separation of paper and aligning only needs about 3 minutes

Easy for operation. No need of special training for operation.



Specification:

Model	1200	1200A	1700
Max Weight of Pile +Pallet	1000kg	1400kg	2500kg
Max Size of Paper	800X1200MM	800X1200MM	1200X1700MM
Min.Opening Width	680MM	920MM	920MM
Max.Opening Width	1440MM	1920MM	1840MM
Power	8KW	8KW	16KW
Power Supply	380V 3Phase 50HZ	380V 3Phase 50HZ	380V 3Phase 50HZ
Hydraulic Pressure	Max 16MPA	Max 16MPA	Max 16MPA
Hydraulic Oil	Summer 46#, Winter 32#	Summer 46#, Winter 32#	Summer 46#, Winter 32#
Oil Tank	12L	12L	12L
Net Weight	2800KG	3600KG	4200KG
Dimension	2370X2090X1890MM	2900X2400X2200MM	2500X2590X2590MM
Noise	<80dB	<80dB	<80dB
Temperature	+12 to +45	+12 to +45	+12 to +45
