| Pressure: | High Pressure |
|---|---|
| Standard or Nonstandard: | Standard |
| Power: | Electric |
| Structure: | Single-stage Pump |
| Brand Name: | NNT |
| Application: | |
| Fuel: | Diesel |
| Usage: | Water |
| Theory: | Centrifugal Pump |
| Model Number: | G |
| Place of Origin: | China (Mainland) |
| Product type: | Sand pump |
| Product name: | Electric industrial pump for river pond sand dredging sand pumping |
| Material: | A05, A49, A03 |
| Warranty: | 1 Year |
| Voltage: | 380V or 440V |
| Certificate: | ISO9001 |
| Diesel engine: | Available |
| Feature: | Large passage |
| Application: | Sand pumping, harbor dredging |
| Color: | Customized |
Quick Details
Specifications
Electric industrial pump for river pond sand dredging sand pumping
Features
Features of Sand pump
1.Casing and spare parts are all made of High chrome alloy (Cr26 material) with Anti-wear,anti-abrasive, longer life Features.
2.High efficiency, lower price and top quality,1 year warranty for slurry pump, and 3 months for wet parts.
3.Capacity up to 1300m3/h, head up to 80m.
4.Widely used in sand sucking, gravel dredging and many kinds of mining plant. Such as gold mining, lead mining and so on.
Parameters
| Parameters for Sand pump | ||||||
| Pump model | Base type | Maximum power(KW) | Impeller | Maximum passage size(mm) | Maximum flow(l/s) | Maximum head(m) |
| 6/4D-G | D | 60 | DG4137 | 82 | 89 | 52 |
| 8/6E-G | E | 120 | EG86137 | 127 | 215 | 50 |
| 8/6F-GH | F | 260 | FGH6137 | 140 | 280 | 90 |
| 10/8F-G | F | 260 | FG8137 | 178 | 275 | 51 |
| 10/8S-GH | S | 560 | FGH8137 | 180 | 450 | 82 |
| 12/10G-G | G | 600 | FG10137 | 220 | 480 | 60 |
| 12/10G-GH | G | 600 | GGH10137 | 210 | 800 | 80 |
| 14/12G-G | G | 600 | GG12137 | 241 | 1020 | 70 |
| 16/14G-G | G | 600 | GG14137 | 254 | 1020 | 44 |
| 16/14TU-GH | TU | 1200 | HG14137 | 230 | 1120 | 70 |
| 18/16TU-G | TU | 1200 | GG16137 | 254 | 1200 | 50 |
| 20/18TU-G | TU | 1200 | HG18137 | 330 | 1500 | 46 |
| 24/20TU-G | TU | 1200 | HG20137 | 380 | 1700 | 66 |
| 28/24TU-G | TU | 1200 | HG24137 | 380 | 3800 | 70 |

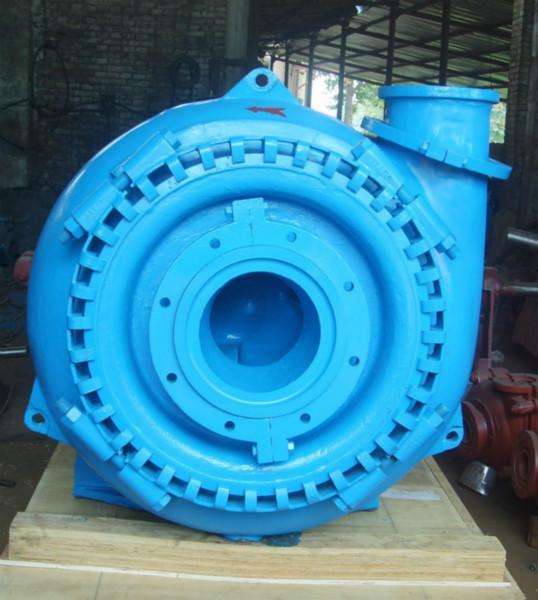

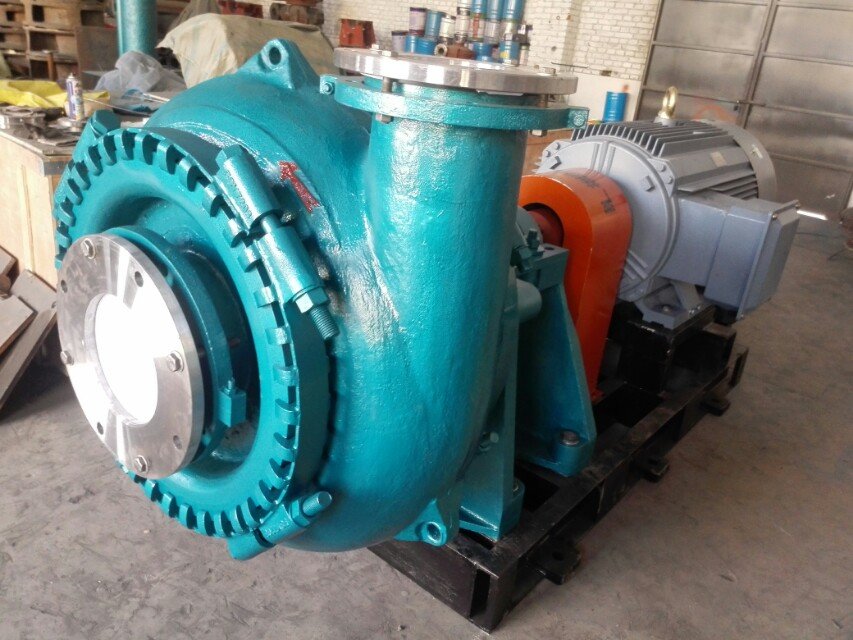

Pictures
