| Special Features: | Waterproof / Weatherproof |
|---|---|
| Technology: | with mic. |
| Sensor: | CCD |
| Type: | Analog Camera |
| Brand Name: | MiyeaEye |
| Style: | Mini Camera |
| Model Number: | AV-M134CE |
| Place of Origin: | China (Mainland) |
| Resolution: | 420tvl |
| Sensor: | 1/3'' CCD of SONY |
| Minimum Illumination: | 0.01Lux |
| Lens: | 3.6mm board lens |
| Demension: | 34x34mm |
Quick Details
Specifications

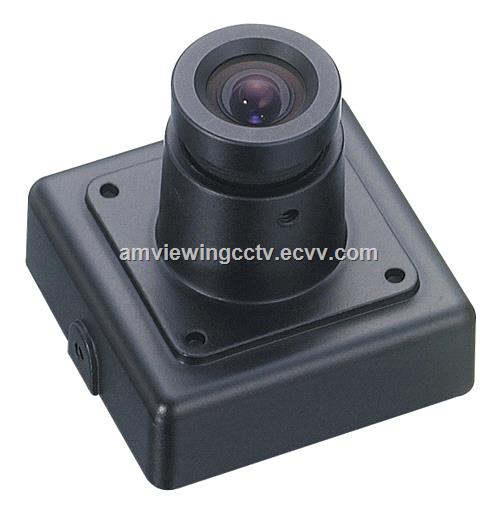

Mini Color Mini CCD Camera, with Audio
Model: AV-M134CE
1/3" CCD of SONY;
420TV Lines, 0.01Lux;
Size:34*34mm; (20*20mm/25*25mm/30*30mm
/34*34mm, 40*40mm available; )
/34*34mm, 40*40mm available; )
Metal Casing;
Detailed Specifications of the Parameters
Model |
AV-M134CE |
AV-M134CDN |
AV-M334C | ||||
Image Device |
1/3"CCD of Sony |
1/3"CCD of Sony |
1/3" CCD of Sharp | ||||
Horizontal Resolution |
420TVL | ||||||
Minimum Illumination |
0.01Lux |
0.5(D)/0.05(N)Lux |
0.5Lux | ||||
Effective Pixels |
PAL: 500(H)*582(V) NTSC: 510(H)*492(V) | ||||||
Scanning System |
PAL: 625 Lines, 50 Field/Sec; NTSC: 525 Lines, 60 Field/Sec | ||||||
S/N Ratio |
More Than 48dB(AGC off) | ||||||
Electronic Shutter |
PAL: 1/50~1/100,000 Sec; NTSC: 1/60~1/100,000 Sec, auto | ||||||
Gamma Characteristic |
0.45 | ||||||
White Balance |
Auto | ||||||
Lens Option |
3.6mm lens; (pinhole lens, wide angle lens, vari-focal lens available) | ||||||
BLC |
Auto | ||||||
AGC |
Auto | ||||||
Sync System |
Internal Synchronization | ||||||
Video output |
1Vp-p 75 Oms, Negative | ||||||
Power Consumption |
12V 10%DC, 50mA | ||||||
Operation Temperature |
-10 ~ + 50, RH 95% Max | ||||||
Storage Temperature |
-20 ~ + 60, RH 95% Max | ||||||
Housing |
Black | ||||||
Dimension |
34x34mm | ||||||
Weight |
30g | ||||||

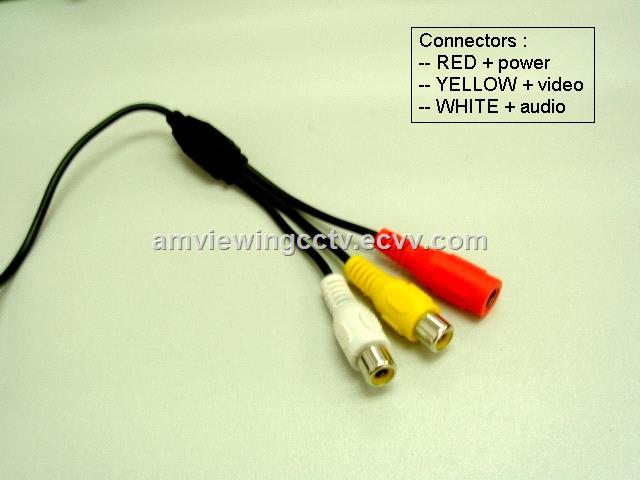

Supplied Accessories |
User manual, cable, screw, bracket | ||||||
