| Brand Name: | AE |
|---|---|
| Weight: | about 100g |
| Sampling Method: | Diffusion |
| Size: | 96mm*65mm*32mm |
| Alarm type: | Sound, vibration, light |
| Model Number: | AGH5100 |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

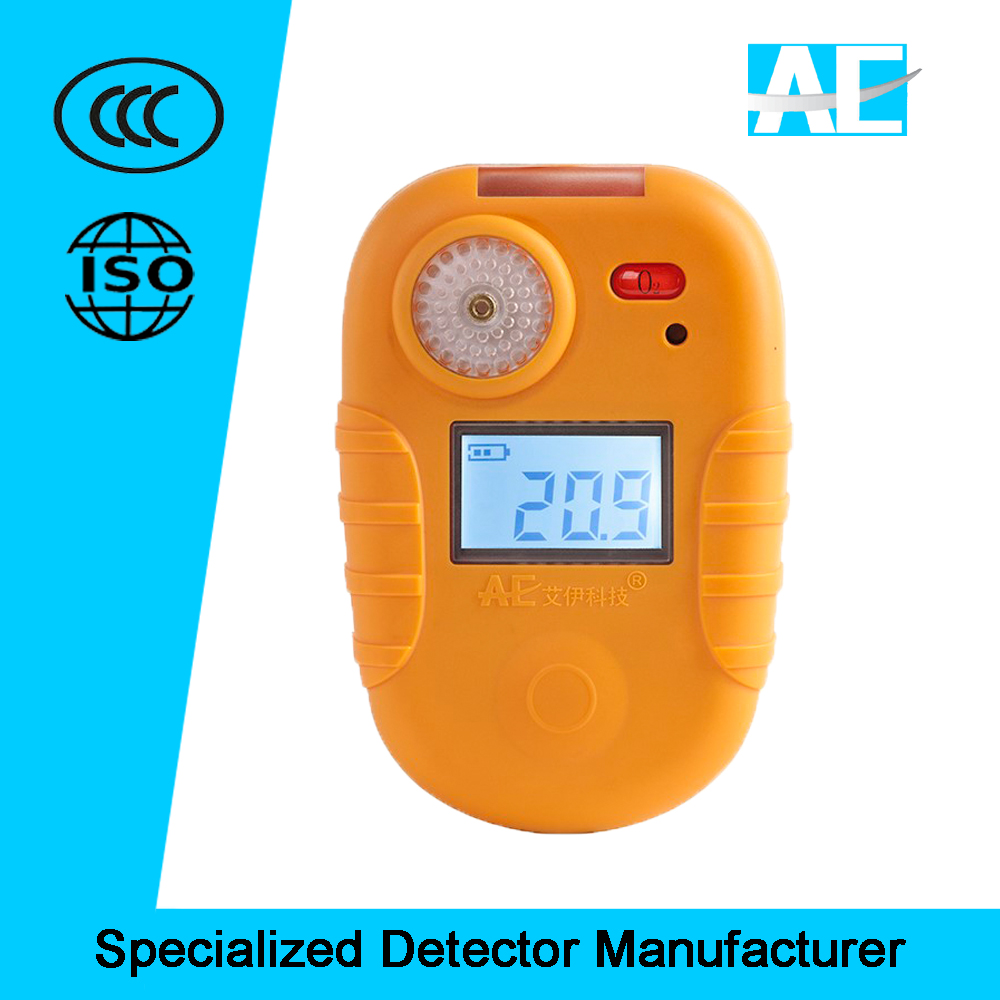

Industrial Portable Single Gas Detector for leak alarm
AGH5100 is our portable single gas detector for detecting single toxic gas leak such as oxygen and other toxic gases.
>>>Key Features
- Small size for hand-grasp.
- Three Two-graded alarming ways for effective notice.
- Imported battery cell, which is super low power consuming with a super long stand-by time.
-High-strength rubber casing, which is dust proof, water proof, firm and shock proof.
>>>Technical Specification
Gas sensor |
Advanced sensor made in UK |
Detection principle |
Electrochemical |
Measure range |
Customize |
Detecting gas |
Toxic gas |
Alarm type |
Sound, vibration, light |
Power supply |
Rechargeable Lithium Battery |
Explosion-proof grade |
Ex ibIICT3 |
Sampling method |
Pump, diffusion |
Display |
LCD display |
Sensor life |
3~5 years for catalytic combustion, 2~3years for Electrochemical |
Warranty |
1 year |
Dimensions |
96mm*65mm*32mm |
Weight |
150g |
>>>Related Application
Related Application | ||||
GAS DETECTED |
MEASURE RANGE |
PRINCIPLE |
ACCURACY | |
Combustible gas |
EX |
0-100%LEL |
Catalytic combustion |
1%LEL |
Oxygen |
O2 |
0-30%VOL/0-25%VOL |
Electrochemical |
0.1%VOL |
Carbon monoxide |
CO |
0-1000PPm |
Electrochemical |
1PPm |
Hydrogen sulphide |
H2S |
0-100PPm |
Electrochemical |
1PPm |
Chlorine |
CL2 |
0-20PPm |
Electrochemical |
0.1PPm |
Sulphur dioxide |
SO2 |
0-20PPm/150PPm |
Electrochemical |
0.1PPm |
Ammonia |
NH3 |
0-100PPm |
Electrochemical |
1PPm |
Nitric oxide |
NO |
0-250PPm |
Electrochemical |
1PPm |
Nitrogen dioxide |
NO2 |
0-20PPm |
Electrochemical |
0.1PPm |
Hydrogen chloride |
HCL |
0-30PPm |
Electrochemical |
0.1PPm |
Ozone |
O3 |
0-1PPm |
Electrochemical |
0.01PPm |
Ethylene oxide |
C2H4O |
0-20PPm |
Electrochemical |
0.1PPm |
Formaldehyde |
CH2O |
0-20PPm |
Electrochemical |
0.1PPm |
Methanol |
CH3OH |
0-20PPm |
Electrochemical |
0.1PPm |
Phosphine |
PH3 |
0-5PPm |
Electrochemical |
0.1PPm |
Hydrogen |
H2 |
0-1000PPm |
Electrochemical |
1PPm |
Fluorine |
F2 |
0-1PPm |
Electrochemical |
0.01PPm |
Hydrogen fluoride |
HF |
0-10PPm |
Electrochemical |
0.1PPm |
Hydrogen cyanide |
HCN |
0-50PPm |
Electrochemical |
0.1PPm |
Phosgene |
COCL2 |
0-1PPm |
Electrochemical |
0.01PPm |
Arsenic hydride |
AsH3 |
0-1PPm/0-20PPm |
Electrochemical |
0.01PPm |
Silane |
SiH4 |
0-50PPm |
Electrochemical |
0.1PPm |
Acrylonitrile |
C3H3N |
0-20PPm |
Electrochemical |
0.1PPm |
Carbon disulfide |
CS2 |
0-20PPm |
Electrochemical |
0.1PPm |
Ethanol |
C2H5OH |
0-20PPm |
Electrochemical |
0.1PPm |
Sulfur hexafluoride |
SF6 |
0-1000PPm |
Infrared |
1PPm |
Methane |
CH4 |
0-5%VOL/100%VOL |
Infared |
0.1%VOL |
Carbon dioxide |
CO2 |
0-5%VOL/100%VOL |
Infrared |
0.1%VOL |
VOC |
VOCs |
0-20PPm/1000PPm |
PID |
0.1PPm |
Toluene |
C7H8 |
0-20PPm |
PID |
0.1PPm |
Xylene |
C8H10 |
0-20PPm |
PID |
0.1PPm |
Benzene |
C6H6 |
0-20PPm |
PID |
0.1PPm |
Acetic acid |
C2H4O2 |
0-1000PPm |
PID |
1PPm |
>>>Calibration
You can search "AGH5100" to watch the calibration video on Youtube.
>>>Pre-Sales and after-Sales Service
- Inquiry and consulting support.
- Sample testing support.
- View our Factory.
- Training how to install the device, and training how to use them.
- Engineers' available to service machinery overseas.
>>>Why choose us?
- We are manufacturer.
- World Leading Sensors inside
- ISO Standard Quality Control
- 24-hours Service
>>>FAQ
1, Q: What about after-sale service?
A: 12 months warranty for all kinds of products; we also provide life-long paid service. If you find any defective accessories first time, we will give you the new parts for free to replace in the next order, as an experienced manufacturer, you can rest assured of the quality and after-sales service.
2, Q: What about lead time?
A: Usually we offer 7 working days after order confirmed and payment received, and we can also accept an urgent order for prompt shipment.
