| Nominal Center Frequency: | 10KHZ~30MHZ |
|---|---|
| Package Type: | Surface Mount |
| Transfer Function: | Low Pass |
| Type: | EMI Filter |
| Brand Name: | YBX |
| Stopband Attenuation: | 20~100dB |
| Input Impedance: | 50 |
| Insertion Loss: | 60~90db |
| 3dB Bandwidth: | 3.75 |
| Model Number: | YB-C |
| Place of Origin: | China (Mainland) |
| Type: | YB-C |
| Rated current: | 1A~10A |
| Rated voltage: | 125VAC 250VAC |
| Environmental Temp: | 40 degree |
| Operating Frequency: | 50/60HZ |
| Line to Line: | 1450VDC |
| Certificate: | CQC CE ROHS UL |
| Port: | SHENZHEN |
Quick Details
Specifications
| Model |

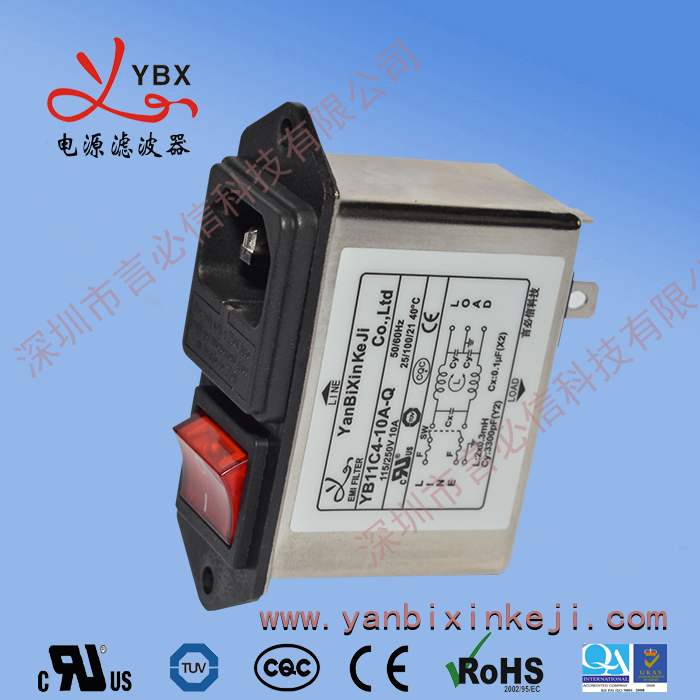

with Double Fuse and Switch and Socket Type Power Filter -YB-C |
| Transfer Function |
Low Pass |
| Package Type |
Surface Mount |
| Nominal Center Frequency |
10K-30MHZ |
| Insertion Loss |
60~90dB |
| Input Impedance |
50 |
| Rated Voltage |
125VAC 250VAC |
| Rated Current |
1A 3A 6A 10A |
| Environmental Temperature |
40C |
| Temperature Range |
25 / 085 / 21 |
| Operating Frequency |
50/60HZ |
| Line to Line |
1450VDC |
| Line to Ground |
2250VDC |
| Maximum Leakage Current |
115VAC/50HZ 0.3uA Max |
| Lead Time |
5~15 weekday |
