| Power Souce: | Diesel Engine |
|---|---|
| Type: | Powered Pallet Truck |
| Brand Name: | WECAN |
| Condition: | New |
| Year: | 2017 |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Certification: | CE |
| Overall Dimensions: | 4040*1230*2110mm |
| Fork Width: | 125mm |
| Fork Length: | 1220mm |
| Min. Lifting Height: | 80mm |
| Max. Lifting Height: | 3000MM |
| Rated Loading Capacity: | 3000kg |
| Model Number: | CPCD30FR |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

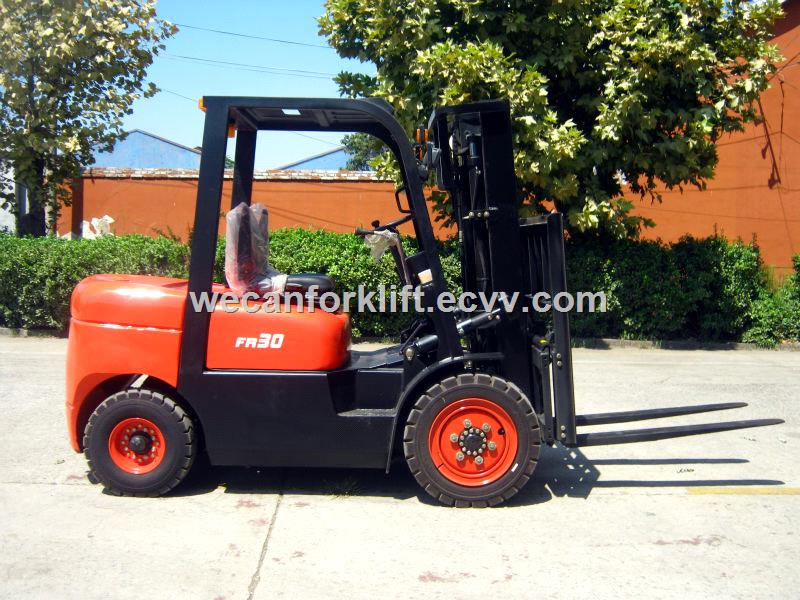

WECAN 3Tons Diesel Forklift Truck with CE
Powerful engine
Low center of gravity, small turning radius, more stable and reliable
Comfortable seat for long-time operation
Safe overhead guard
Rear light for working in the dark
Dual air filter
Streamline balance weight
Side shifter is optional
Optional fork: 1370mm / 1520mm / 1820mm / 2000mm
Optional mast: 2-stage 3.3m / 3.5m / 4m mast; 3-stage 4.5m / 5m / 5.5m / 6m / 7.3m mast
Optional engine: EURO II/III China engine; DEUTZ-DACHAI engine; ISUZU engine;
YANMAR engine.
WECAN 3Tons Diesel Forklift Main Specification
General |
1 |
Model |
CPCD30FR | |
2 |
Rated capacity |
3000 kg |
6613.9 lb | |
3 |
Load center |
500 mm |
19.7 in | |
4 |
Power type |
Diesel |
Diesel | |
5 |
Transmission |
Hydraulic |
Hydraulic | |
Dimensions |
6 |
Lifting height (H1) |
3000 mm |
118.1 in |
7 |
Free lifting height |
80 mm |
3.15 in | |
8 |
Min. Turning radius |
2500 mm |
98.4 in | |
9 |
Min. under-clearance |
135 mm |
5.3 in | |
10 |
Min. Right angle aisle width |
2110 mm |
83.1 in | |
11 |
Overall length (including fork) (A) |
3800 mm |
149.6 in | |
12 |
Overall width (B) |
1230 mm |
48.5 in | |
13 |
Overall height (mast lowered) (H) |
2110 mm |
83.1 in | |
14 |
Overall height (mast raised) (H2) |
4270 mm |
168.1 in | |
15 |
Overall height (overhead guard) (H3) |
2110 mm |
83.1 in | |
16 |
Fork length (A3) |
1220 mm |
48 in | |
17 |
Fork width (B3) |
125 mm |
4.92 in | |
18 |
Fork thickness (H4) |
45 mm |
1.97 in | |
Performance |
19 |
Max driving speed (with/without load) |
18/20 km/h |
11.2/12.4 mph |
20 |
Max lifting speed (with load) |
400 mm/s |
0.89 mph | |
21 |
Max traction (with/without load) |
15.5/10.5 kN |
15.5/10.5 kN | |
22 |
Gradeability (with/without load) |
15% / 20% |
15% / 20% | |
23 |
Tilting angles(forward/backward) (/) |
6/ 12 |
6/ 12 | |
24 |
Total weight |
4320 kg |
9524 lb | |
Engine |
25 |
Engine model |
China Engine |
China Engine |
26 |
Power |
39 kw |
52.3 HP | |
27 |
Rated speed |
2650 rpm |
2650 rpm | |
28 |
Displacement |
2.67 L |
2.67 L | |
29 |
No. of cylinder |
4 |
4 | |
Wheel |
30 |
Front overhang (A1) |
465 mm |
18.3 in |
31 |
Wheel base (A2) |
1700 mm |
66.9 in | |
32 |
Front tread (B1) |
1000 mm |
39.4 in | |
33 |
Rear tread (B2) |
970 mm |
38.2 in | |
34 |
Front tire |
28X9-15 |
28X9-15 | |
35 |
Rear tire |
6.50-10 |
6.50-10 | |
