Main Advantages:

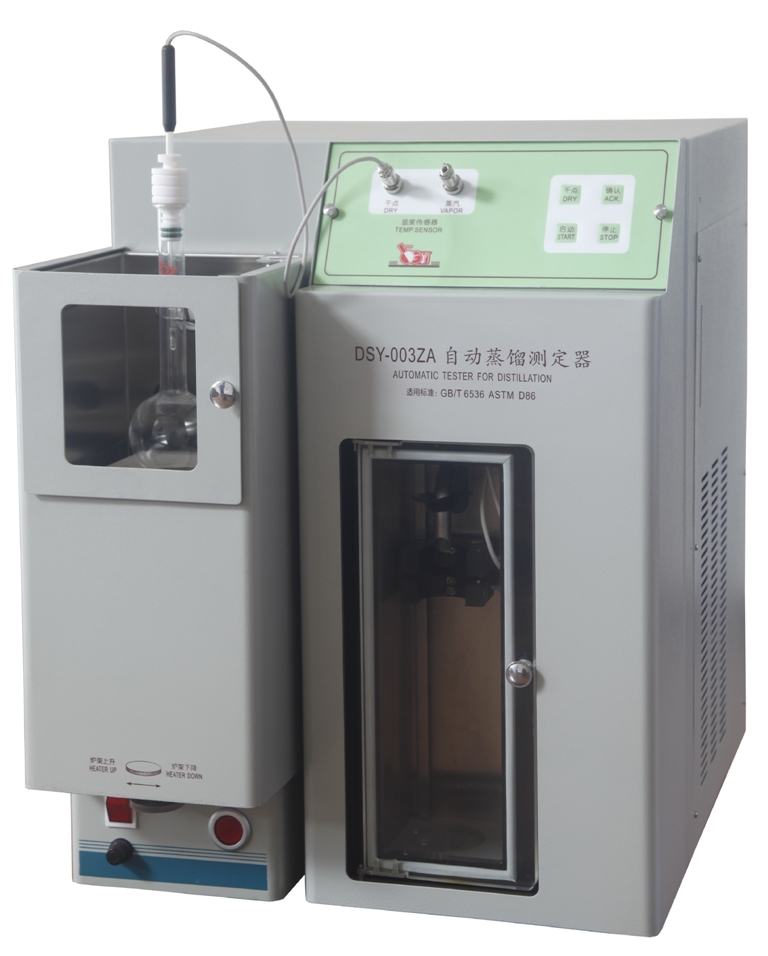

DSY-003ZA is designed to perform automatic distillation of petroleum products like gasoline, fuel oils, kerosene, naphtha and other solvent products. The software can automatically control distillation rate, recovery volume and determinate the IBP, FBP, DP and residue corrections.



Computer can display simultaneously the temperature of heater, steam, cooling tube, receiver compartment. Three kinds of curves (distillation rate, heating temperature, steam temperature) can be displayed in real-time as well.





Technical details:



Standard Test Methods	ASTM D86  ASTM D850  ASTM D1078   GB/T 6536  GB/T 7534
TemperatureRange	Vapor:         0400 Condenser:     060 Receiving room: 050
Temperature sensor	Pt100 for Vapor, Condenser and Receiver chamber;  Thermocouple for Heater
Barometric correction	Correction by barometric pressure sensor
Cooling System	Built-in Compression Chiller
Safety	Automatic fire alarm and extinguisher (N2 gas delivered with the tester)
Communication port	RS-232Com x 2
Dimensions	480  620  610 (mm)
Weight	85 kg
Power Supply	AC220 V10%  50Hz  2500W
