| Surface Finishing: | Immersion gold |
|---|---|
| Board Thickness: | 2.0mm |
| Copper Thickness: | 1OZ |
| Base Material: | FR4 |
| Brand Name: | OLEADING |
| Min. Line Spacing: | 64mil |
| Min. Line Width: | 64mil |
| Min. Hole Size: | 0.2mm |
| Number of Layers: | |
| Model Number: | 16L HDI PCB |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

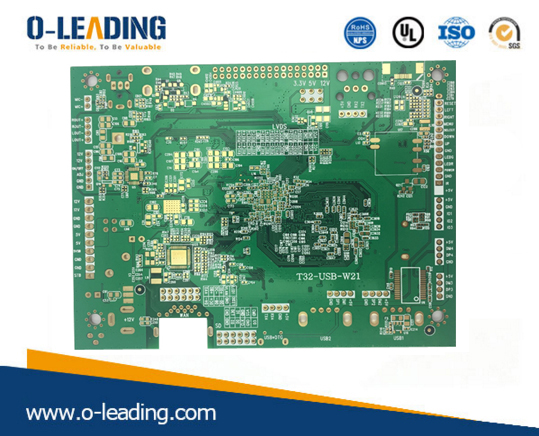

- 1.PCB P/N:254725
- 2.Material: FR-4
- 3.Layer: 16L
- 4.Board thk:2.0mm
- 5.Copper thk:35UM
- 6.Smallest hole size:0.2MM
- 7.No. of holes (pcs):29
- 8.Line w/s:6/6mil
- 9.Impedance control. Y / N (Tol %):N
- 10.Surface: Immersion Gold
- 11.Solder Mask Silkscreen:Green
- 12.Single board size:Dim X (mm):196;Dim Y (mm):85
- 13.Special: Impedance control
- 14.Routing/Punching:CN
