Product Main

Quick Details

Usage: Balancing Machine
Power: Electronic
Brand Name: AEM
Warranty: 1 Year
weight: 1600kg
Model Number: YYQ
Place of Origin: China (Mainland)

Specifications

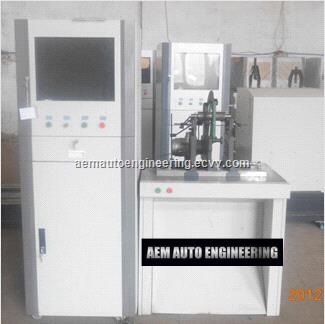

YYQ Hirozontal type Hard Bearing Belt Drive Dynamic Balancing Machine
YYQ Hirozontal type Hard Bearing Belt Drive Dynamic Balancing MachineYYQ Hirozontal type Hard Bearing Belt Drive Dynamic Balancing Machine

Characteristics:

Widely apply for industries like motor, blower, diesel Motor, turbocharger,

Armature, rotors of paper machinery and textile machinery Etc.

Horizontal hard bearing dynamic balancing machine serials

Wheel bearing

Belt drag

Motor and Inverter for speed regulation

Industrial computer to process data

Colored screen display unbalance value, phase angle, and Practical rotation speed

Overall cast base, better stability

Balance test as single side, double side, multi side

Apply for shaft, plate, and extended focus rotor

High accuracy, direct, dependable quality, convenient Maintenance

Software has two calibration function like usual piece and standard rotor

Parameter input, overview, test, data save, operate and Menu

Model

Max. Mass of workpiece (kg)

Max.Diameter of workpiece

  (mm)

Distance between two bearing support

  (mm)

Max.Rotor

Diameter

(mm)

Balancing speed min

  (r/min)

Min.Achievable residual

Unbalance

(g.Mm/kg):

Unbalance reduction ratio(%):

Drive power

 (kw)

RYQ-3

 0.1-3

350

30-450

3-22

400-10000

0.5

90

0.09

RYQ-10

 1-10

500

30-600

5-60

400-10000

0.5

90

0.18

YYQ-5

0.1-5

400

50-600

3-40

400-5000

0.5

90

0.09

YYQ-16

0.3-16

500

60-600

5-40

400-5000

0.5

90

0.18

YYQ-50(A)

1-50

900

60-800

8-70

300-5000

(ANeutralspeed regulating)

0.5

90

0.75

(A:0.75)

YYQ-100(A)

2-100

900

80-1000

10-140

300-5000

(ANeutral speed regulating

0.5

90

0.85/1.1

(A:1.5)

YYQ-160(A)

2-160

950

100-1400

10-180

300-2500

(ANeutral speed regulating

0.5

90

0.85/1.1

(A:1.5)

YYQ-300A

5-300

1200



150-1500

20-180



300-2500

Neutral speed regulating

0.5

90

4.0

YYQ-500A

10-500

1500



150-1500

20-240



 180-2500

Neutral speed regulating

0.5

90

4.0

YYQ-1000A

10-1000

1500



150-2600

20-240

180-2500

Neutral speed regulating

0.5

90

5.5

YYQ-1600A

30-1600

1800

150-2600

20-240

180-2500

Neutral speed regulating

0.5

90

7.5

YYQ-3000A

100-3000

2000



150-2600

15-300



180-2500

Neutral speed regulating

0.5

90

11
