| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 2 years |
| Certification: | ISO9001 |
| Brand Name: | ZY |
| Condition: | New |
| Weight: | 5 tons |
| Dimension(L*W*H): | 800*140*150cm |
| Voltage: | 380v |
| Power(W): | 8000 |
| Model Number: | ZY |
| Place of Origin: | China (Mainland) |
| Production Capacity: | 50 sets/month |
| Use: | Roof |
| Tile Type: | Colored Steel |
| Type: | Tile Forming Machine |
| Applied slab thickness:1.8mm-3.5mm: | C Z Channel Making Machines Price |
| Applied plank stuff:color armor plate: | C Z Channel Cold Forming Machines |
| Roll diameter:80mm: | C Z Channel Cold Rolling Forming Machines Price |
| Line speed:16-18m/min: | Steel C U Z Profile Roll Forming Machine Made In China |
| Rollers for leveling: 3 roller: | C And Z Shaped Steel Cold Roll Forming Machine |
| HS Code: 84552210: | C And Z Shaped Steel Cold Roll Forming Machines |
| Roll Diameter: 90mm: | C And Z Shaped Steel Cold Roller Forming Machinery |
| Cutting type: Hydraulic cutting: | C And Z Shaped Steel Cold Roller Forming Machine |
| Forming Roller stand: 12: | C And Z Shaped Steel Cold Roller Forming Machines |
| Cutting length tolerance: +/- 1.5mm: | C And Z Shaped Steel Cold Rolling Former Machinery |
Quick Details
Specifications

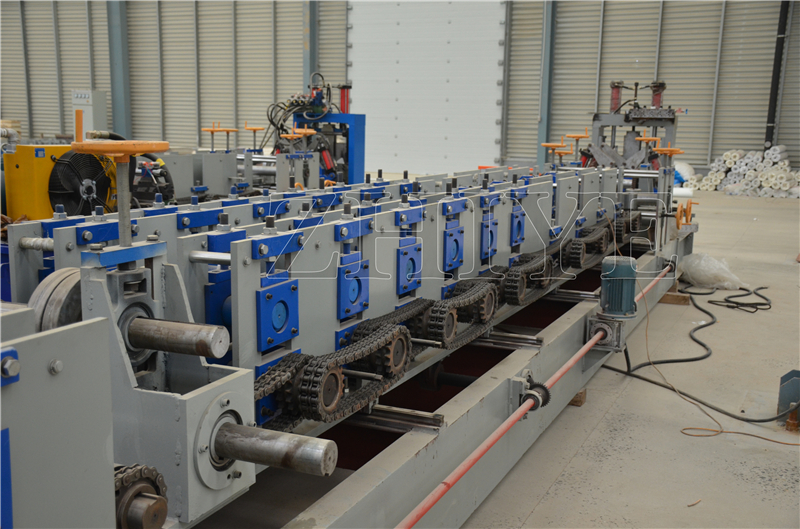

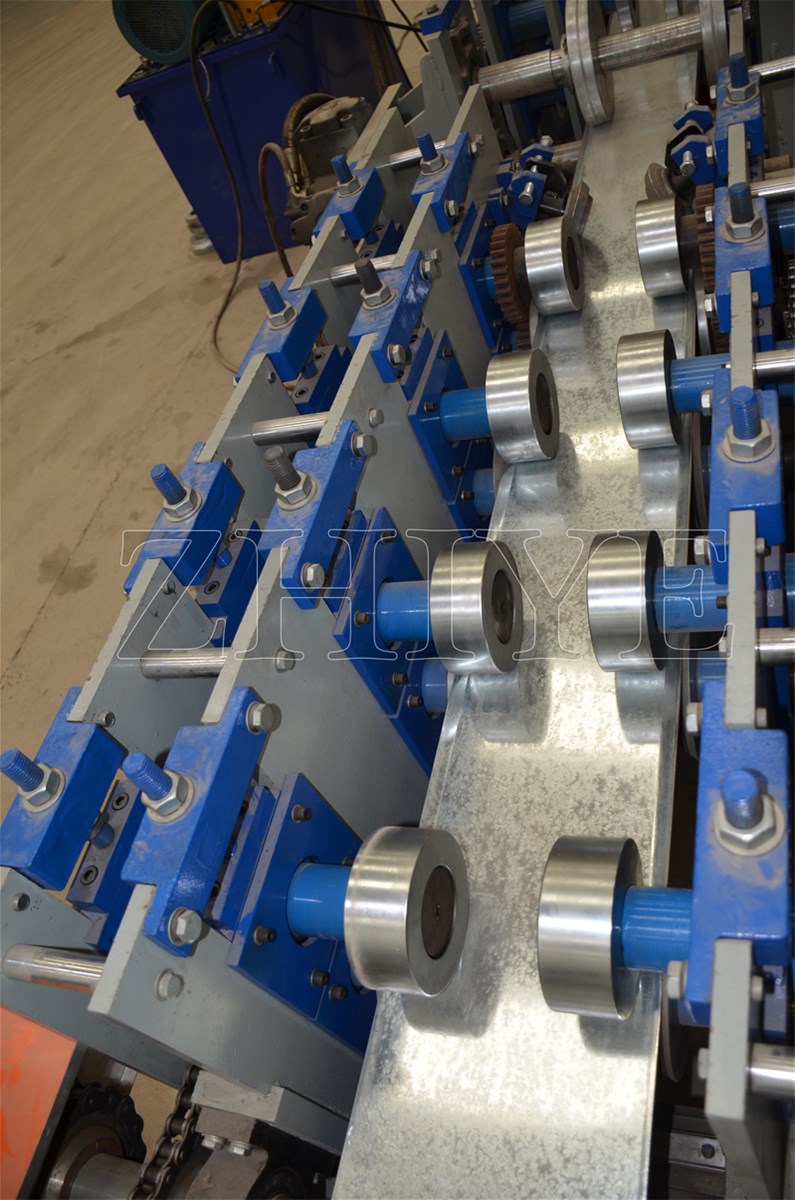

C/Z purline formed by C Z Channel Making Machines Price,advantages of well compressivestrength and flatness
Automatioc measureing, cutting and punching; high-level of automation and conveniently installation.
It can be used in the main body stress structure of the large and medium-size enterprises civil construction, like the plant, warehouse, locomotive shed, hangar
Exhibition building, theatre, stadiums, roofing load-bearing
Load and wall surface support of the arbour.
Material of rollers: Shaft Bearing steel(Quenching)
C Z Channel Making Machines Price| Items | Specification | |
| Steel Coil | Steel Coil Thickness | 1.5-3.0mm |
| Coil Width | 120mm to 400mm | |
| Gross weight of the coil | up to 5000 Kg | |
| Forming System | Main Motor Power | 25 Kw |
| Hydraulic Pressure | 16 MPa | |
| Hydraulic Station Power | 5.5 kw | |
| Sprocket | P-50.8 | |
| Forming Station | 15 | |
| Material of Rollers | C45 steel hard chrome plate | |
| Length of Production Line | 11m | |
| Diameter of Principal Axis | 85mm | |
| Material of Rollers | Cr12 | |
| Length of Tolerance | 2mm | |
| Processing Speed | 8-12 m/min | |
| Gross Weight | 8000 Kg | |
| Installation Dimension (L*W*H) | 9.5m*1.2m*1.4m | |
| Cutting System | Material of Cutting Blade | Cr12Mov |
| Cutting Length | Automatic Measuring Device | |
| Tolerance of the cutting | 2mm | |
| Electrical Control System | Way of Control | PLC Control (Siemens) |
| Inverter | Fuji, Mitsubishi, Delta | |
| Low voltage electric device |
Schneider |
