| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Power(W): | 0.37kw |
| Brand Name: | Kingplas Technology |
| Application: | Sheet |
| Condition: | New |
| Weight: | 0.8T |
| Dimension(L*W*H): | two point six *one point eight*one point four |
| Model Number: | 500 |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

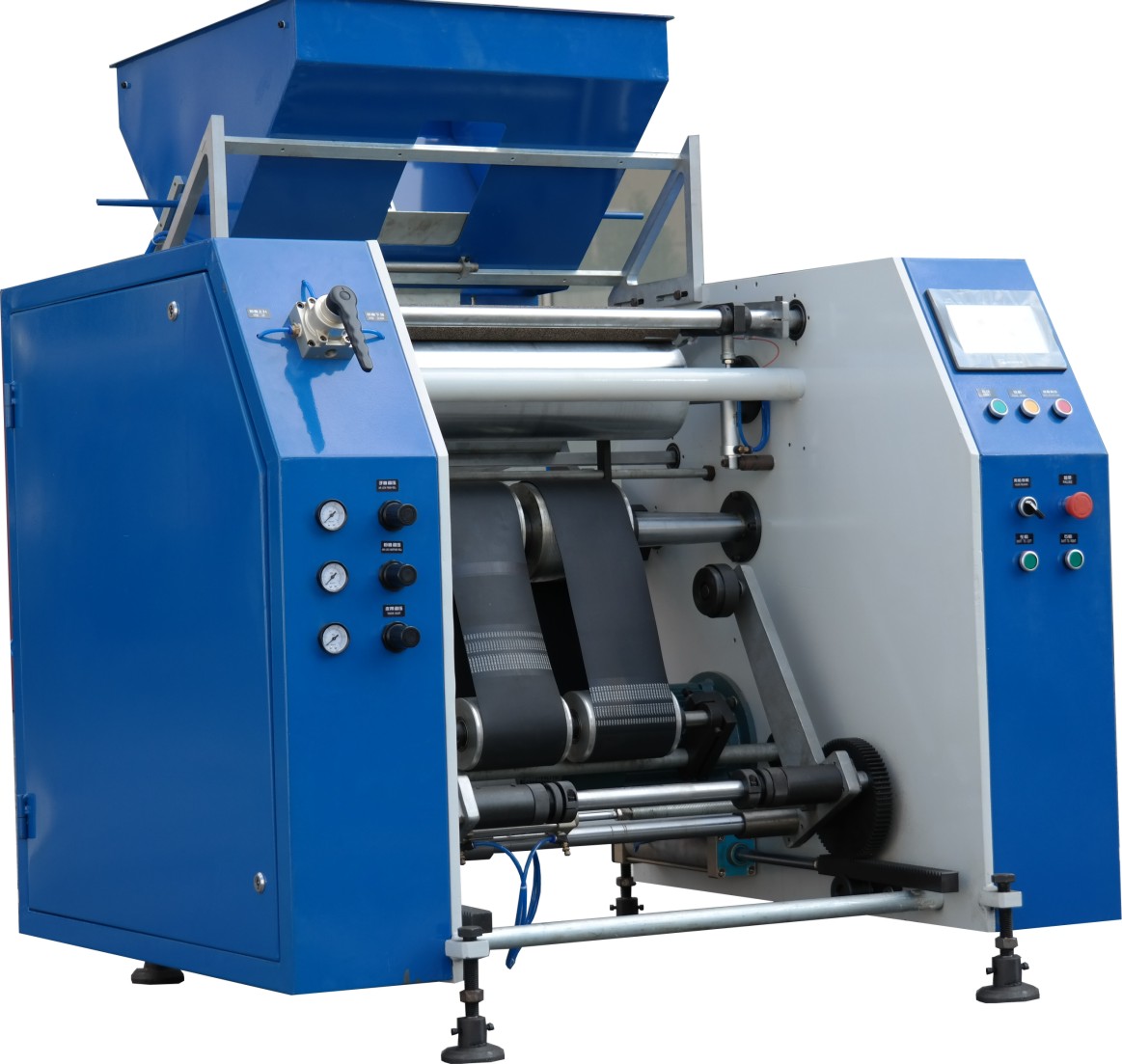

1.Fully automatic Stretch film rewinding machine is used to rewind the jumbo roll film into small roll.It is a kind of multi-function machine integrated with rewinding.Meter counting and automatic out-off.
2.Automatic cutting,automatic rewinding,automatic Collection
3.PLC control with inverter,which is easy operating and safe.
Main Technical Data:
| Model | Five hundred |
| Width of finished product(mm) | Five hundred |
| Main motor(kw) | four |
| Swing Motor | Zero point three seven kw |
| Line speed(m/min) | Eight hundred |
| Roll Laying Mode(mm) | Automatic |
| Diameter of parent roll(max)(mm) | Three hundred and fifty |
| Width of parent roll (max)(mm) | Five hundred |
| Core specification of parent roll | Three" |
| Cutting mode | by resistance wire |
| Width of sub-roll (max)(mm) | Five hundred |
| Diameter of sub-roll (max)(mm) | One hundred and fifty |
| Core specification of sub-roll | Two" +three" |
| Overall dimensions(LWH)(m) | Two point six*one point eight*one point four |
| Weight(T) | Zero point eight Tons |
