| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Power(W): | 4KW |
| Brand Name: | Kingplas Technology |
| Application: | Film |
| Condition: | New |
| Model Number: | 500mm/1000mm/1500mm |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

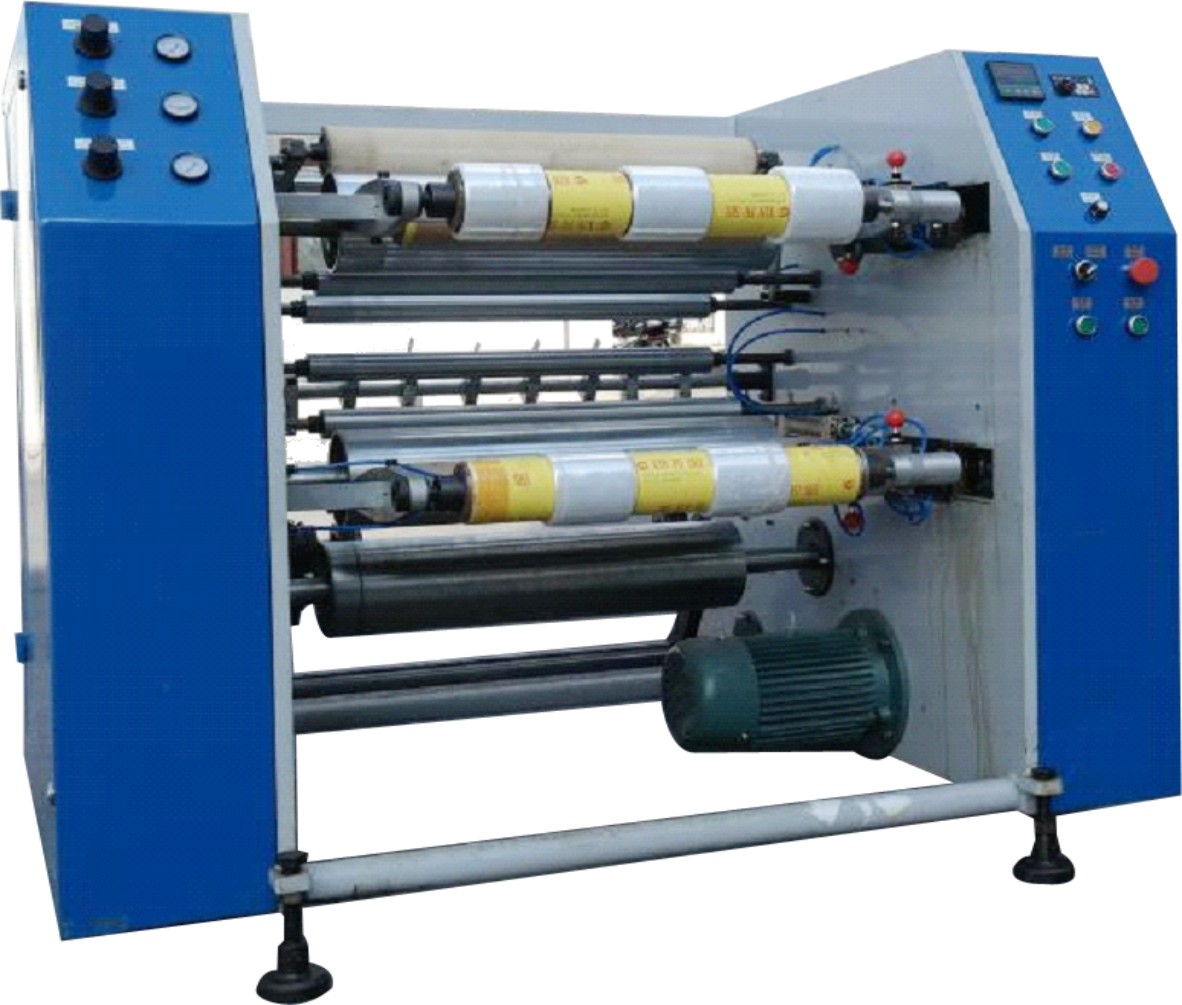

Stretch film rewinder&slitter can both rewind and slit jumbo roll into small roll,the min can be cut is 50mm,the max width we can rewind and slit is 1500mm.the material can be PE or PVC film.
1.Easy operating and non-skilled worker required
2.High speed and inverter control,which is safe and stable
3.Slit and rewind into different size,meeting the different requirements.
|
Model |
500mm/1000mm/1500mm |
|
Width of finished product(mm) |
50mm-1500mm |
|
Power of motor(kw) |
2.2/2.2/4kw |
|
Speed of machinery(m/min) |
200-600m/min |
|
Roll Laying Mode(mm) |
by hand |
|
Diameter of parent roll(max)(mm) |
400mm |
|
Width of parent roll (max)(mm) |
500/1000mm/1500mm |
|
Core specification of parent roll |
3" |
|
Diameter of sub-roll (max)(mm) |
150mm |
|
Core specification of sub-roll |
1" 1.5" 2" 3" |
