| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Power(W): | 2.2KW |
| Brand Name: | Kingplas Technology |
| Application: | Film |
| Condition: | New |
| Model Number: | 300 |
Quick Details
Specifications

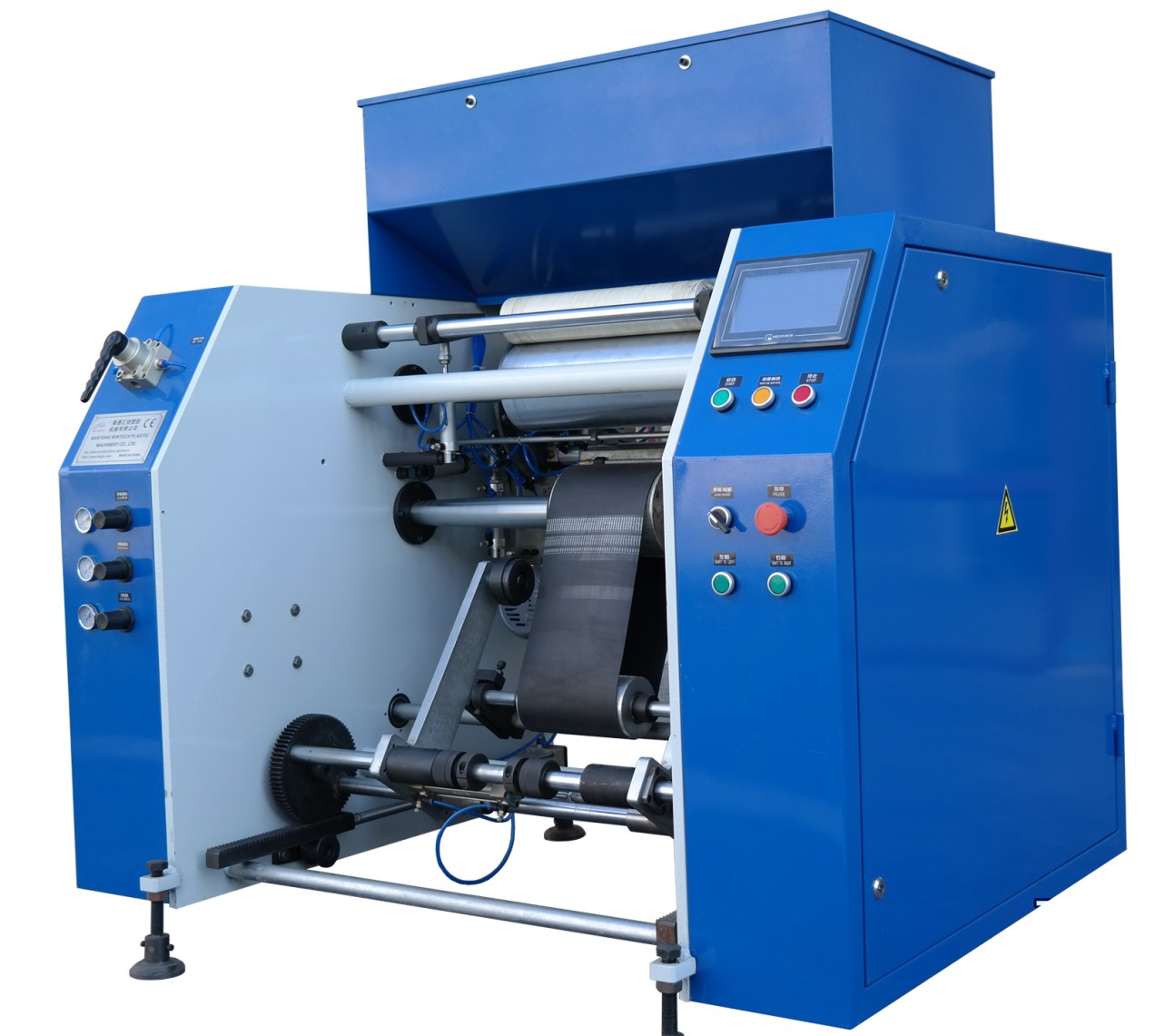

Fully automatic cling film rewinder is mainly used to rewind the PE/PVC JUMBO roll into small roll.It is with 5-shafts which can improve the running efficiency and reduce the cost.
1.5-Shafts continuous rewinding,improving the work efficiency
2.PLC+HMI+Inverter control,which is convenient and fast.
3.Machine will alarm and stop if there is no paper core in the hopper and the shaft,which is very safe.
Main Specification
|
Model |
300 |
|
Width of mother roll(mm) |
300mm |
|
Power of motor(kw) |
2.2 |
|
Line speed(m/min) |
0-500m/min |
|
Finished roll length |
8m-120m |
|
Diameter of mother roll(max)(mm) |
500 |
|
Core specification of parent roll |
3 |
|
Width of baby roll (mm) |
300 |
|
Diameter of sub-roll (max)(mm) |
100 |
|
Core specification of sub-roll |
1",1.5" |
|
Overall dimensions(LWH)(m) |
1.41.21.2 |
