| Plate Type: | Screen Printer |
|---|---|
| Automatic Grade: | Automatic |
| Usage: | bottle printing |
| Brand Name: | ONCE |
| Condition: | New |
| Plate Type: | screen printing |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Warranty: | one year |
| Certification: | ce |
| Weight: | 1600kg |
| Color & Page: | Multicolor |
| Model Number: | OS-767 |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

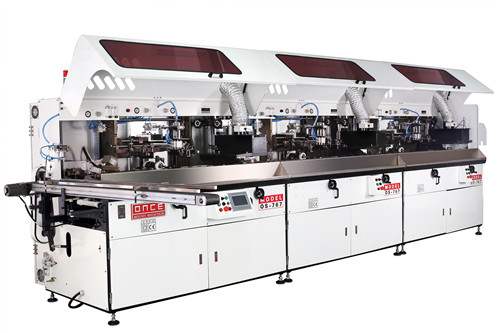

1 to 6 color automatic UV screen printing press
Print speeds up to 70 bottles per minute
Prints on round & oval containers
Mechanical walkingbeam indexed
Heraeus Fusion brand UV Units(optional)
Omron PLC or Allen Bradley (optional)
Integrated anti-static blowing and flame treating
FAST & ACCURATE
the OS-767 series of precision automatic UV container screen printing machines feature aDC motor controlled linear walking beam system that is solidly built to provide accurate color to color printregistrationwith print speeds up to 70 bottles per minute. Either round or oval bottles can beplaced into the optional automatic bowl feeder where they are automatically oriented and transportedinto the UV cured screen printing line. Once bottles enter the OS-767 machinery they areautomatically flame treated and fed through each of the subsequent printing and UV curing stations.
HIGH QUALITY PRINTING
the accurate color to color registration of the OS-767 series is ensured by use of a precision mechanicalcam driven indexing drive system and mechanical control of the screen printing stations. as bottles aretransported into the printing stations, they are securely lifted and held in place via a high power vacuumtransport system. The bottles are then placed into precision machined fixtures (with one-way clutch) and
They are direct driven and precisely rotated during printing. There is also a "no-part no-print" sensor whichprevents the squeegee from operating if no bottle is present in the printing station. after the bottles leavethe printing station, they are handed-off to the UV drying station where they are rotated under the UVlamps.
Print speeds up to 70 bottles per minute
Prints on round & oval containers
Mechanical walkingbeam indexed
Heraeus Fusion brand UV Units(optional)
Omron PLC or Allen Bradley (optional)
Integrated anti-static blowing and flame treating
FAST & ACCURATE
the OS-767 series of precision automatic UV container screen printing machines feature aDC motor controlled linear walking beam system that is solidly built to provide accurate color to color printregistrationwith print speeds up to 70 bottles per minute. Either round or oval bottles can beplaced into the optional automatic bowl feeder where they are automatically oriented and transportedinto the UV cured screen printing line. Once bottles enter the OS-767 machinery they areautomatically flame treated and fed through each of the subsequent printing and UV curing stations.
HIGH QUALITY PRINTING
the accurate color to color registration of the OS-767 series is ensured by use of a precision mechanicalcam driven indexing drive system and mechanical control of the screen printing stations. as bottles aretransported into the printing stations, they are securely lifted and held in place via a high power vacuumtransport system. The bottles are then placed into precision machined fixtures (with one-way clutch) and
They are direct driven and precisely rotated during printing. There is also a "no-part no-print" sensor whichprevents the squeegee from operating if no bottle is present in the printing station. after the bottles leavethe printing station, they are handed-off to the UV drying station where they are rotated under the UVlamps.
|
OS-767 |
Round container size: |
Diameter:10-130mm, Height: 30-260mm |
Round container max. Print area: |
L 260 x W220mm |
Oval container size: |
R: 10-250mm, Height: 30-260mm |
Oval container max. Print area: |
L 120 x W220mm |
Printing capacity: |
up to 70 pcs/min |
UV lamp power: |
5 KW |
Drive: |
Mechanical Driven |
Electrical: |
380V/480V 3phase 50/60Hz |
Air requirement: |
5-7 bar |
Power consumption: |
5.4 KW/UNIT |
Weight: |
1600 KG |
