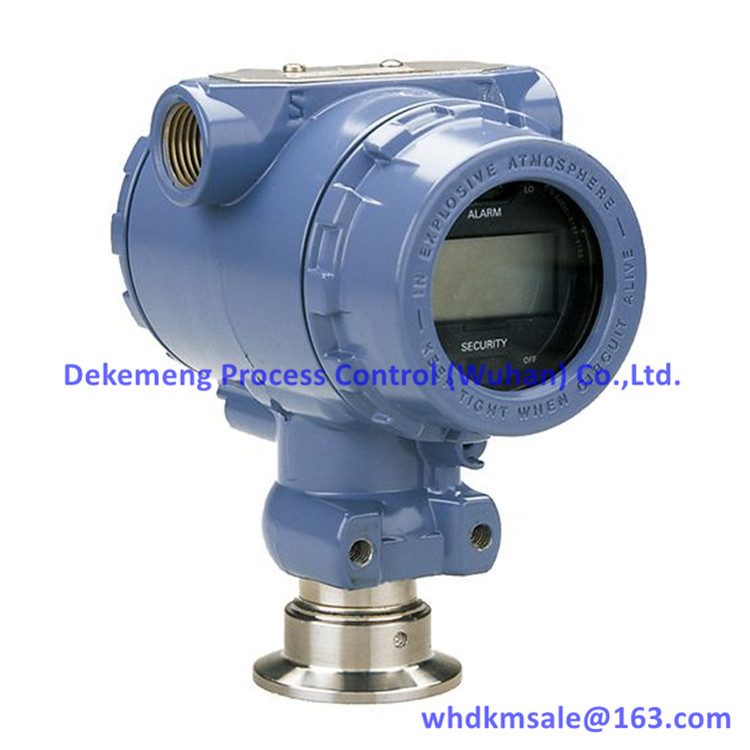

Rosemount 2090F Hygienic Pressure Transmitter



Introduction

Designed for hygienic applications, the Rosemount 2090F Hygienic Pressure Transmitter is specifically engineered for thePharmaceutical and food and beverageIndustries. Built with industry standard process connections, this device connects to sanitary fittings without special mounting hardware. In addition, this hygienic pressure transmitter conforms to 3-A Sanitary Standards, allowing you to meet tough process requirements.



Specifications

Accuracy

     0.20%



Power Supply

10.5-42.4 V



Warranty

up to 5-year limited warranty



Rangedown

up to 20:1



Communication Protocol

4-20 mA HART



Measurement Range

up to 300 psig (20,7 bar) Gage, up to 300 psia (20,7 bar) Absolute



Process Wetted Material

316L SST



Diagnostics

Basic Diagnostics



Certifications/Approvals

3-A Sanitary Standards, hazardous location, see full specs for complete list of certifications



Features

Tri Clamp process connection designed for standard sanitary fittings

Conforms to 3-A Sanitary Standards for hygienic application compliance

Utilizes single-filled sensor system for reliability and accuracy

Features CIP/SIP service for process temperatures of up to 140

Fully configurable LCD displays process variable, percent of range and diagnostic messages



Normal Models

2090FA1S2DE1B4M5

2090FA2S2DE1B4M5

2090FA3S2DE1B4M5

2090FG1S2DE1B4M5

2090FG2S2DE1B4M5

2090FG3S2DE1B4M5

2090FA1S2DF1B4M5

2090FA2S2DF1B4M5

2090FA3S2DF1B4M5

2090FG1S2DF1B4M5

2090FG2S2DF1B4M5

2090FG3S2DF1B4M5

2090FA1S2DE2B4M5

2090FA2S2DE2B4M5

2090FA3S2DE2B4M5

2090FG1S2DE2B4M5

2090FG2S2DE2B4M5

2090FG3S2DE2B4M5

2090FA1S2DF2B4M5

2090FA2S2DF2B4M5

2090FA3S2DF2B4M5

2090FG1S2DF2B4M5

2090FG2S2DF2B4M5

2090FG3S2DF2B4M5
