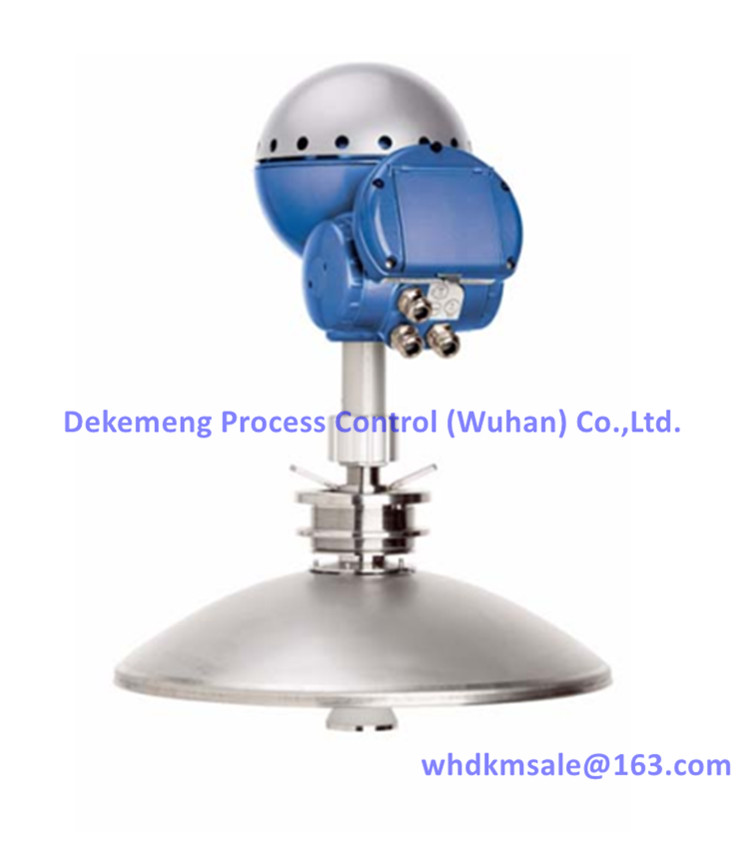

Rosemount 5600 Non-Contacting Radar Level Transmitter



Introduction

the Rosemount 5600 Level Transmitter allows for advanced processing and is suitable for high temperature and high pressure applications as well as for measuring solids. the strength of a 4-wire device is its high sensitivity and its ability to detect weak radar echoes in challenging process environments. the built-in diagnostics are able to detect disturbing objects and identify the true echo.



Specifications

Accuracy

0.2" (5 mm)



Repeatability

0.04 in. (1 mm)



Measurement Range

0-164'(0-50 m)



Operating Pressure

Full vacuum to 798 psi (Full vacuum to 55 bar)



Operating Temperature

-40 to 400



Communication Protocol

4-20 mA/HART, Modbus



Safety

TV tested and WHG approved for overfill prevention



Antenna Type

Cone antenna, Process seal antenna, Parabolic antenna, Cone Antenna with Integrated Flushing Connection



Operating Frequency

FMCW 10GHz



Features

Suitable for most applications due to a wide selection of materials, process connections, antenna styles, and accessories

Easy connection with adjustable power supply, 24 Vdc or 110-240 Vac, 0-60 Hz

Interchangeable transmitter heads and antennas



Common models

5601UE1P5A0PE24SPVNR

5601SE1P5A0PE24SPVNR

5601AE1P5A0PE24SPVNR

5601UE1P5A0PE24SPVNR

5601UE5P5A0PE24SPVNR

5601UE6P5A0PE24SPVNR

5601UE7P5A0PE24SPVNR

5601UEMP5A0PE24SPVNR

5601UIMP5A0PE24SPVNR

5601AE1P5A0PE24SPVNR

5601AE5P5A0PE24SPVNR

5601AE6P5A0PE24SPVNR

5601AE7P5A0PE24SPVNR

5601AEMP5A0PE24SPVNR

5601AIMP5A0PE24SPVNR

5601SE1P5A0PE24SPVNR

5601SE5P5A0PE24SPVNR

5601SE6P5A0PE24SPVNR

5601SE7P5A0PE24SPVNR

5601SEMP5A0PE24SPVNR

5601SIMP5A0PE24SPVNR
