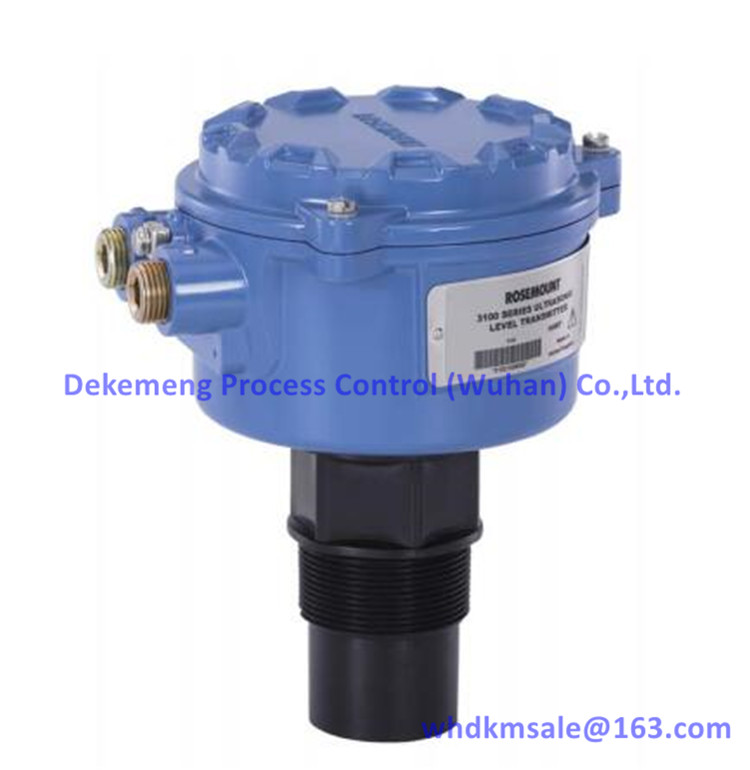

Rosemount 3100 series ultrasonic level transmitter



Introduction

the Rosemount 3100 Level Transmitter is a reliable and cost-effective solution optimized for level, volume, and open channel flow measurement. It is suitable for storage tanks, effluent pits, buffer tanks, and open channel flow. It features a local operator display with buttons for quick and easy commissioning. Temperature compensation is integrated and you can equip the Rosemount 3100 with an external sensor for dynamic temperature compensation. the automatic false echo detection together with easy setup makes this a device you can trust.



Specifications

Accuracy

3101:  <3.3 ft (1 m), 0.2 in (5 mm)

          >3.3 ft (1 m), 0.5% Measuring distance

3102 & 3105:  <3.3 ft (1 m), 0.1 in (2.5 mm)

                 >3.3 ft (1 m), 0.25% Measuring distance

(under reference conditions)



Measurement Range

3101: 1 - 26 ft (0.3 - 8 m)

3102: 1 - 36 ft (0.3 - 11 m)

3105: 1 - 36 ft (0.3 - 11 m)



Operating Temperature

-22 to 158 F (-30 to 70 C)



Communication Protocol

420 mA/HART



Display/Interface

Integral push-buttons with LCD, Rosemount 3490 Controller, or AMS Device Manager, Field Communicator



Features

Simple set-up and operation with an integral LCD display and buttons

Non-contacting measurement with no moving parts

Option of two integral signal relays

Automatic temperature compensation

Empty tank mapping helps ignore up to four false echoes without the need for user interaction
