| Type: | Aviation Obstruction Lights |
|---|---|
| Brand Name: | REDDOT |
| Light Source: | LED |
| Emitting Color: | Red |
| IP Rating: | IP65 |
| Type: | Low Intensity Obstruction Light series |
| Model Number: | OL10 |
| Place of Origin: | China (Mainland) |
| Base Type: | E26 |
| Lamp Body Material: | Aluminum |
| Certification: | CE,EMC,LVD |
| Beam Angle(): | 360 |
| Color Temperature(CCT): | |
| Lamp Power(W): | 6 |
| Input Voltage(V): | 12VDC, 24VDC, 48VDC, 110VAC, 220VAC |
Quick Details
Specifications

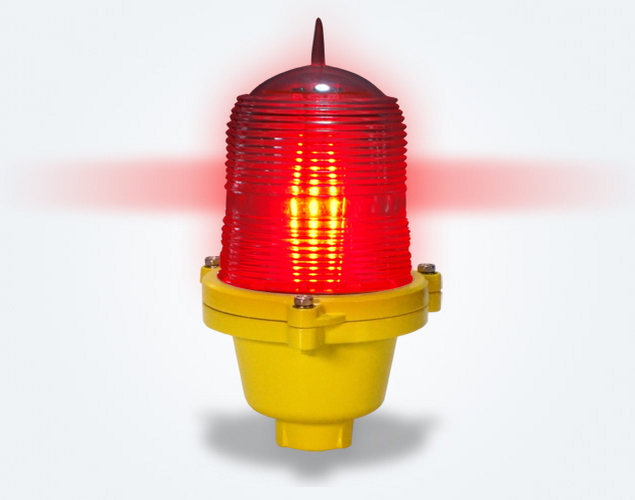

OL10 LED based low intensity double aviation obstruction light(service+standby)
Reddot Signal's OL10 series is typically a standard LED obstruction light designed for airway fixed obstacle marking application. It comply with ICAO regulation, low intensity, type A. Working mode is steady burning.
OL10 series double light Double light is integrated by 2 single lights (working + stand-by). If works with control box, it will auto-switch the " stand-by" light on when the " working" light fails, which makes sure that there is always a light working atop of the tower.
OL10 series double light Double light is integrated by 2 single lights (working + stand-by). If works with control box, it will auto-switch the " stand-by" light on when the " working" light fails, which makes sure that there is always a light working atop of the tower.
Functions & Features
- Special optical design provides better light distribution
- LED light source esures long lifetime, maintenance free
- Low power consumption
- Shock and vibration resistant
- Corrosion resistant and UV stable polycarbonate housing
- Ease of mount, mount accessories available
- Available both in single and double type
- 5 years warranty
- Special optical design provides better light distribution
- LED light source esures long lifetime, maintenance free
- Low power consumption
- Shock and vibration resistant
- Corrosion resistant and UV stable polycarbonate housing
- Ease of mount, mount accessories available
- Available both in single and double type
- 5 years warranty
| SPECIFICATIONS | |
| LIGHT OUT-PUT | |
| Effective Intensity | 10 Candela |
| Vertical Divergence | -3~20 more than 10cd Centering at 10 |
| Horizontal out-put | 360 Degree |
| LED Color | Red |
| LED Lifespan | 100,000 Hours |
| OPERATION | |
| Flash Pattern | Steady-burning |
| POWER SUPPLY | |
| Input voltage | 12VDC, 24VDC, 48VDC, 110VAC, 220VAC |
| Frequency | 50Hz ~ 60Hz |
| Power consumption | |
| MECHANICAL STRUCTURE | |
| Lens | Polycarbonate, UV Stabilize |
| Body | Die-casting Aluminum |
| Water-proof | IP65 |
| Weight | 1.0 KG |
| Temperature Range | -40C ~ +55C |
| Relative humidity | 100% with condensation |
| Dimensions | 230mm H, 245mm Diameter |
| Warranty | 5 years |
| Optional | Available in flashing pattern (40FPM default) Available with built-in photo sensor |
| Order codes: | |||||
| Series | Single/Double | AC/DC | Voltage | Flashing | Photo sensor |
| OL10 | S | A | 12 | F | P |
| D | D | 24 | |||
| 48 | |||||
| 110 | |||||
| 220 | |||||
| for example, L10SD24 means a single, DC power supply, 24V steady-burning light | |||||
