| Type: | Aviation Obstruction Lights |
|---|---|
| Brand Name: | REDDOT |
| Light Source: | LED |
| Emitting Color: | Red |
| IP Rating: | IP67 |
| Type: | Medium intensity obstruction light |
| Model Number: | Om2k |
| Place of Origin: | China (Mainland) |
| Base Type: | E27 |
| Lamp Body Material: | Aluminum Alloy |
| Certification: | CE,EMC,LVD |
| Beam Angle(): | 360 |
| Color Temperature(CCT): | |
| CRI (Ra): | 85 |
| Lamp Luminous Flux(lm): | 6280 |
| Lamp Power(W): | 25 |
| Input Voltage(V): | 85-126VAC;48VDC;24VDC;12VDC |
Quick Details
Specifications

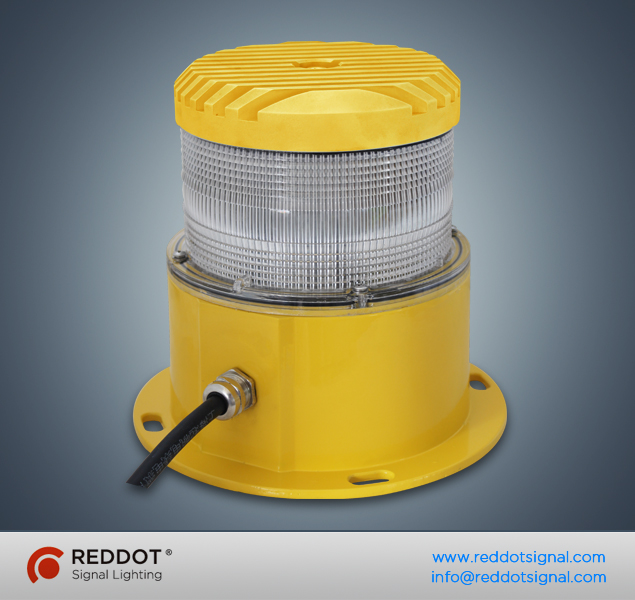

OM2K LED ICAO Medium Intensity Type B Aircraft Warning Light for telecom towers
OM2K is a new generation medium intensity obstruction light. It comes with compact size and light-weight, which makes installation job nice & easy. the optical part is based on Fresnel lens, a transformed convex lens which can concentrate light to a small specific angel to meet with ICAO requirements. Fresnel lens is often used to design obstruction light.
the ingress protection level of OM2K medium intensity obstruction light is IP67, assures the light is well sealed to stand harsh environment such as near the sea, rainy season, tropical weather and so on. If work with control box, more functions such as synchronization and alarm monitoring will be realized. GPS or GPRS are also available if needed.
OM2K medium intensity obstruction light is usually used for towers taller than 45m. OM2K can either work alone or in combination with low intensity, medium intensity and/or high-intensity obstruction lights.
FEATURES
Super-bright OSRAM LEDs reliable light source ensures long lifespan
Optimized optical Lens design provides excellent optic distribution for complying ICAO medium intensity type B&C and FAA L-864
Aluminum heatsink provides excellent thermal dissipation performance
Aluminum base with powder painted provides good weather and corrosion resistant
Excellent shock and vibration resistant
Longer lifetime expectancy, almost maintenance free
Lower voltage (than xenon) makes it safer for installer
Internal LED driver and constant current regulator make the light illuminate steadily
Built-in 20KA surge protector module to protect the light from induction lightning strike
Prewired cable makes wiring job easier
for example: OM2KA220FPSP, is OM2K LED medium intensity obstruction light, 85-265VAC, red flashing, with built-in photocell, with 20KA surge protector.
