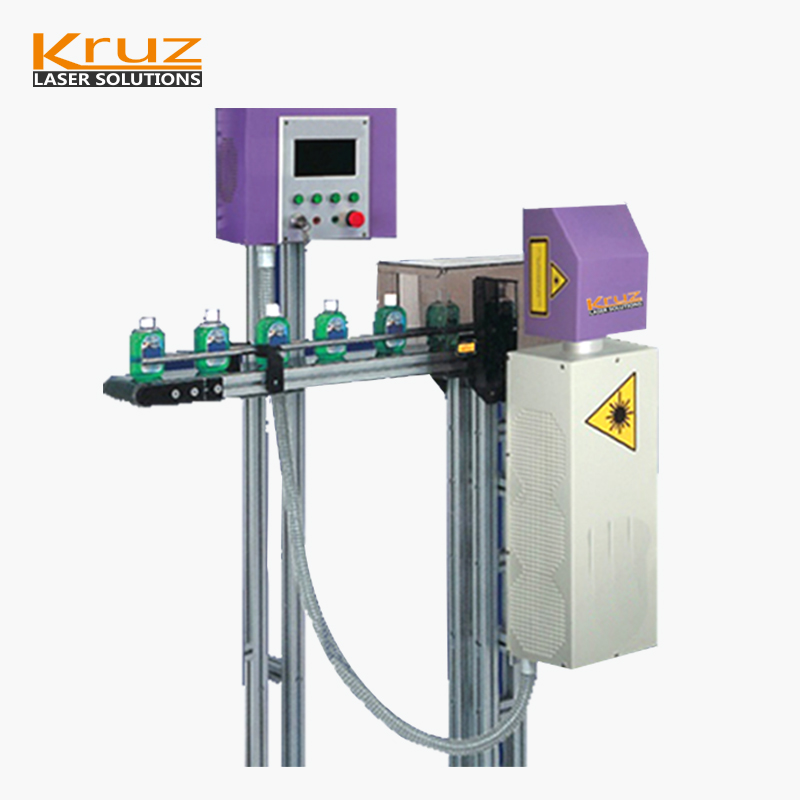

Online Flying Laser Marking Machine

TypeKAL1 Simple,KAL2 Simple,KAL3/KAL4 Fast

Laser type/Wavelength          Fiber 1064nm,Green laser 532nm,UV     laser355,10.6CO2

Laser power                                 Order

Beam quality                                  M2<3

Pulse width                                 100ns

Pulse repetition frequency                     20kHz ~ 200kHz

Power stability                                 >4h+/-2% rms

Marking size                                 100mm x 100mm 180mm x 180mm

                                             or Order up to 300 x 300mm

Marking depth                                 Adjustable

Marking speed                             15000mm/s

Marking width Min                             0.01mm(10m)

Marking character Min                         0.1mm

Repeat marking accuracy                     10/rad

Power total                                 800W

Power supply                                 AC 220V/50Hz

Outsize(Difference by types)                     2750*850*1350mm

Online Flying Laser Marking Machine Advantages:

1.the air cooling system, no need of maintenance;

2.Stable performance, the life time can be up to 100000 hours;

3.All kinds of metal materials and some kinds of non-metallic material marking; can be used for deep marking, the applicability is very widely;

4.with the computer, can freely change the marking and parameters;

5.the laser spot is small, can marking a fine,unique and never wear marks.

Online Flying Laser Marking Machine Applications:

1.Areas with depth, smoothness, and finer requirements;

2.Mobile phone keypad, plastic translucent keys;

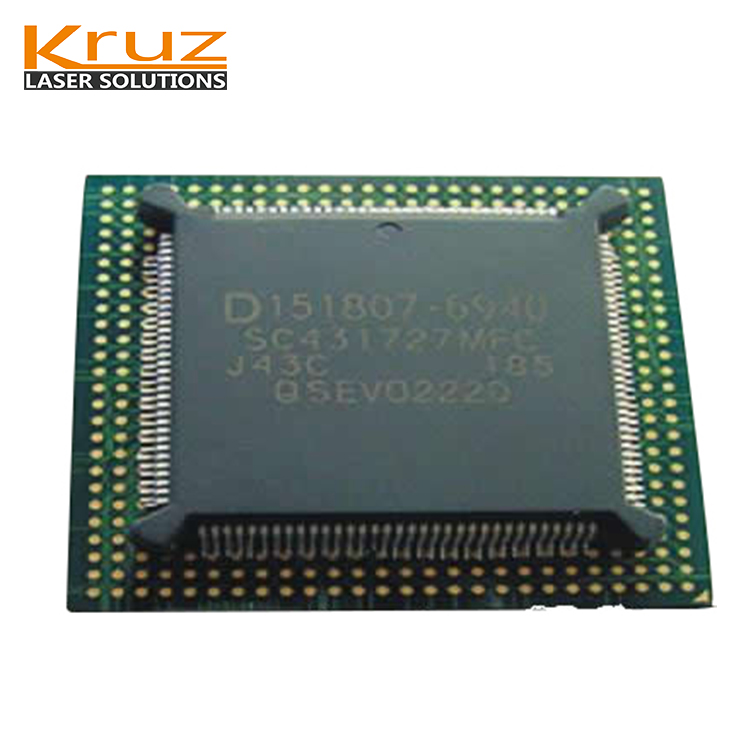

3.Electronic components, integrated circuits (IC), PCB;

4.Electrical appliances, communication products, signage;

5.Sanitary ware, hardware products;

6.Tool accessories, precision instruments;

7.PVC pipe, medical equipment and other industries.
