| Brand Name: | SonnePower |
|---|---|
| Size: | 100*114.25*39 mm |
| Type: | 4 I/O |
| Material: | aluminium housing |
| Color: | black |
| Model Number: | SPC-STW-S0402CTR |
| Place of Origin: | China (Mainland) |
| Operating voltage: | 8~32V |
| Housing/Storage Temperature: | -40~+85 |
| Weight: | 0.37 kg |
| Connector: | 16-pin AMP |
| housing: | durable plastic housing |
Quick Details
Specifications
SonnePower has been cooperating with Germany company STW since 2014 to offer high quality and cost-effective programmable controllers. the controller units base on powerful 32-bit processors and are ideally suited for the harsh environment and extreme temperatures of off-highway vehicles and mobile machines.
the item SPC-STW-S0402CTR has the features as below:
- Comply with IEC-61131-3 standard, supporting to CoDeSys 2.3
- 32-bit high performance MCU
- Max 4 inputs / 2 outputs
- 3 CAN interfaces, supporting to CANopen/SAEJ1939/free protocol
- 1 standard RS232 communication port, baud rate can be configured
- 1 sensor power output,5V/10V output configurable
- 1 blue LED for status indication
- All inputs support short ciruit to GND/VBB
- All digital outputs provide short circuit and overheat protection
- Protecting rating: IP67

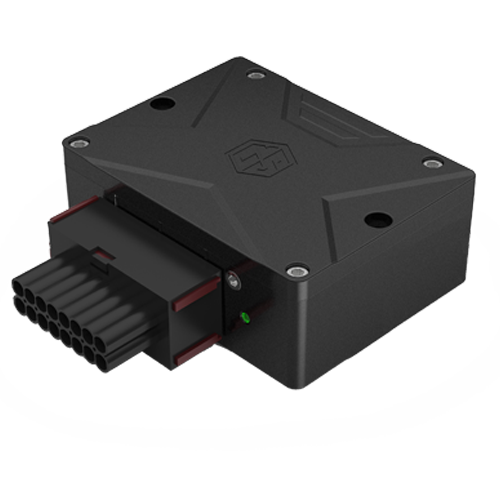

Product picture:
