| After-sales Service Provided: | No overseas service provided |
|---|---|
| Weight: | 1~50 Tons |
| Brand Name: | Jiankai |
| color: | As Customer Required |
| height: | Customized available |
| Dimension(L*W*H): | Customized available |
| Place of Origin: | China (Mainland) |
| Condition: | New |
Quick Details
Specifications
1.Technical Data
Heat exchanging area of one plate: 0.4095 m2
Space between plates: 4.0 mm
Crosssectional area of one flow passage: 0.001353 m2
Maximum disposal volume: 200 m/h
Whole length of flange: 125 DN mm
Working temperature: 150
Working pressure: 0.6,1.0,1.25 Mpa
Diameter of angle holes: 125 mm
Line graph of heat coefficient-speed(water-water)
Graph of pressure decrease -speed
2. MBR0.4Parameter | |||
OUtside size of plate(mm) |
12204600.6 |
NOrmal ripple pitch(mm) |
13 |
Effective heat exchanging area(m2) |
0.4095 |
WIdth of flow passage(mm) |
410 |
WEight of one plate(kg) |
2.5 |
AVerage space between plates(mm) |
4 |
DIameter of angle hole(mm) |
125 |
AVerage crossed sectional area(m2) |
0.001353 |
HEight of ripple(mm) |
3.3 |
AVerage Equivalent diameter(mm) |
6.6 |
FOrm of ripple |
ISosceles triangle |
MAterial of plate |
304 316 316L Ti |

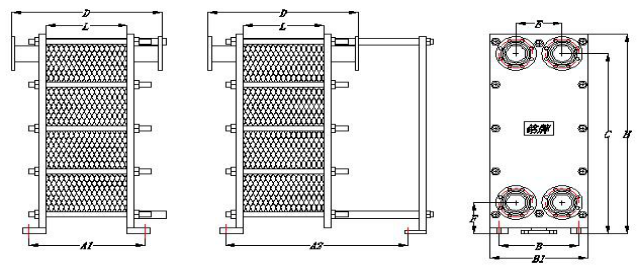

3. Installing Size of MBR0.4
Floor-type Hanging type
B=460 C=1203 F=176 E=270 H=1340 B1=550 DN125 PN1.0 Heat exchanging area(m2) 30 35 40 45 50 55 60 65 70 Plate number(sheet) 76 88 101 113 126 138 151 163 176 L (mm) 304 352 404 452 504 552 604 652 704 D (mm) 712 760 812 860 912 960 1012 1060 1112 A1(mm) 484 532 584 632 684 732 784 832 884 Weight (kg) 676 714 755 792 833 870 910 948 989 A2 (mm) 1200 1400 1670
4.Plate material:
1.SUS304 SUS316L
2.Titanium and Palladium
3.Hadtelloy Alloy
4.Nickel
5.Design features
1.High efficiency and low Consumption: Its heat exchanging parameter is 2000-4500kcal/m2..H, which is several times higher than of cellpacking heat exchanger.
2.Compact structure: Plate-type heat exchanger is arranged compactly. Compared with other types of heat exchanger, it takes up less area and space. It is only 1/5 the size of line-type heat exchanger, considering the same area.
3.Easy cleaning convenient dismantlement: Set flat and plate are held together by twisting bolts. Therefore it is convenient to dismantle. You can clean it whenever you like.What'S more, it's not easy to get scale because of its smooth flat surface and high frequent flowing.
4.Long using time: plate-type heat exchanger is made of rustless steel or titanium alloy. It can endure corrosion of different kinds of medium. the rubber pad can be changed freely. It is convenient to dismantle or test.
5.Strong adaptability: the plates are separate units. It can increase or decrease flowing according to requirement. from is varied. It can be used for different technological requirements.
6.No mixed liquid: There is a liquid passage in the sealed groove. Every medium cannot be mixed together. Medium runs out even when there appears leakage.
