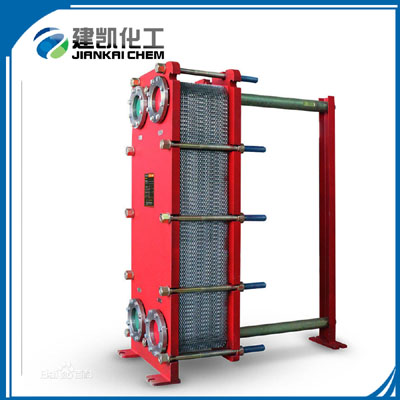

| After-sales Service Provided: | No overseas service provided |
|---|---|
| Weight: | 1~50 Tons |
| Brand Name: | Jiankai |
| color: | As Customer Required |
| height: | Customized available |
| Dimension(L*W*H): | Customized available |
| Place of Origin: | China (Mainland) |
| Condition: | New |
Quick Details
Specifications
1.Technical Data
Heat exchanging area of one plate: 0.308 m2
Space between plates: 4.3 mm
Crosssectional area of one flow passage: 0.00118 m2
Maximum disposal volume: 120 m/h
Whole length of flange:: 80 DN mm
Working temperature: 150
Working pressure: 0.6, 1.0, 1.25 Mpa
Diameter of angle holes:: 80 mm
Line graph of heat coefficient-speed(water-water)

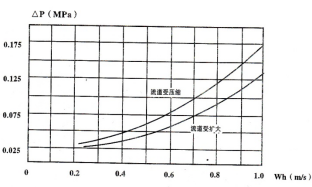

Graph of pressure decrease -speed
2.BR0.3Parameter
Outside size of plate(mm) |
11353700.6 |
normal ripple pitch(mm) |
15 |
Effective heat exchanging area(m2) |
0.308 |
Width of flow passage(mm) |
320 |
Weight of one plate(kg) |
1.95 |
Average space between plates(mm) |
4.3 |
Diameter of angle hole(mm) |
80 |
Average crossed sectional area(m2) |
0.00118 |
Height of ripple(mm) |
3.7 |
Average equivalent diameter(mm) |
7.0 |
Form of ripple |
Isosceles triangle |
Material of plate |
304 316 316L Ti |

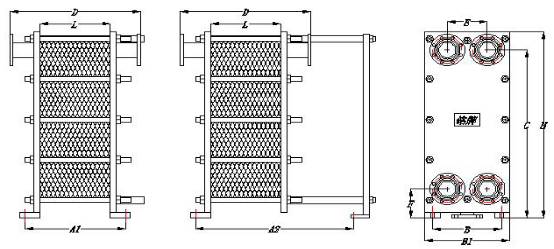

3.Installing Size of BR0.3
Floor-type Hanging type
B=370 C=1135 F=145 E=224
H=1245 B1=460 DN80 PN1.0
Heat exchanging area (m2) |
12 |
15 |
18 |
20 |
22 |
25 |
28 |
30 |
35 |
40 |
45 |
50 |
Plate Number (sheet) |
40 |
50 |
60 |
67 |
74 |
84 |
94 |
100 |
117 |
134 |
150 |
167 |
L (mm) |
172 |
215 |
258 |
288 |
318 |
361 |
404 |
430 |
503 |
576 |
645 |
718 |
D (mm) |
532 |
575 |
618 |
648 |
678 |
721 |
764 |
790 |
863 |
936 |
1005 |
1078 |
A1(mm) |
352 |
395 |
438 |
468 |
498 |
541 |
584 |
610 |
683 |
756 |
825 |
898 |
Weight (kg) |
435 |
458 |
483 |
499 |
515 |
540 |
564 |
578 |
619 |
659 |
696 |
736 |
A2 (mm) |
835 |
890 |
950 |
990 |
1025 |
1080 |
1140 |
1180 |
1280 |
1370 |
1470 |
1570 |
4. Notice for Order
A. According to the different requirements of customers, our joint pipe flange isdivided into carbon steel and rustless steel. so be sure to write the specification models of heat exchanger and the material of joint pipe and flange clearly.
B.Sealed pads we provide are usually oil-proofed rubber pad. We can provide pads with special material according to special requirements. Now we mainly produce nitrile rubber pad, triple ethylene propylene rubber pad, chloroprene rubber pad and sanitation pad in four colors: black, white, orange and green.
C.the flow of the equipment can be arranged according to customers's requirements. If the customers cannot choose type and calculate, we can provide the service of calculating and arranging flow and heat exchanger area.
