| Type: | Aviation Obstruction Lights |
|---|---|
| Brand Name: | REDDOT |
| Light Source: | LED |
| Emitting Color: | Red |
| IP Rating: | IP67 |
| Type: | Low Intensity Obstruction Light series |
| Model Number: | FS810 |
| Place of Origin: | China (Mainland) |
| Base Type: | E27 |
| Lamp Body Material: | Aluminum Alloy |
| Certification: | CE,EMC,LVD |
| Beam Angle(): | 360 |
| Color Temperature(CCT): | |
| Lamp Power(W): | 20 |
Quick Details
Specifications

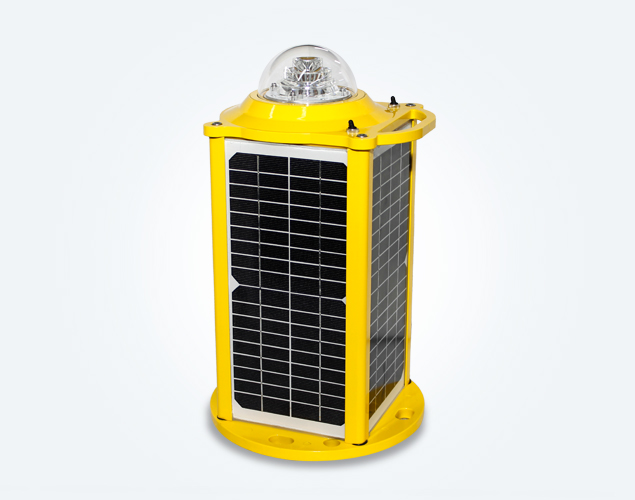

FS810 Solar Powered Low Intensity Aviation Obstruction Light
the solar system comes with FS810 provides power supply to the light, which makes it a self-contained and care-free light unit. Also, with the solar function, the light is easy to deploy to almost any condition and any emergency case. Robust body built and surface coating provides good protection against hash environments.
FS810 is equipped with a high-efficiency coiled SLA rechargeable battery which mainly used in military products.
FS810 is compliant to ICAO low intensity type B, also FAA L810.
Features
Osram LEDs with more reliability
Self-contained without extra power supply
Coiled SLA battery provides long lifetime
Energy-saving mode if long cloudy environment detected
Auto-off after being packed for 18 hours
Optional RS485 Synchronization
Optional Dry Alarm Contacts
Application
Telecommunication tower
Electricity transmission tower
High-rise building
Crane
Wind Turbine
Chimney&Cooling tower
Road obstruction marking
Navigation aid
Port, dock entrance & walkway
Buoy marking
Offshore gas & oil platform
Standard
Low intensity Type B, ICAO Annex 14, Volume I
L810, FAA AC No. 150/5345-43G
DGAC Mexcio
Specification
Light Source
Osram LEDs
Color
Red
Effective Intensity
>32.5 Candela
Vertical Divergence
10 Degree
Horizontal Output
360 Degree
LED Lifespan
100,000 hours
OPERATION
Autonomy
10 days
on&off Level
70/100 Lux
Operation Mode
Steady Burning
POWER SUPPLY
Power Source
Solar Module, Mono-Crystalline Silicon
Solar Efficiency
13.5%
Max.Power Output
20W
Battery Type
High-efficiency Coiled SLA
Battery Capacity
12V/16Ah
Battery Replacement
Yes, replaceable
MECHENICAL
Lens
Polycarbonate, UV stabilized
Body
Extrude-Aluminum
Protection
IP67
Operation Temperature
-40 C~+55 C
Weight
13.5KG
Dimension
Height: 440mm
Width: 235mm
Optional
RS485 Synchronization
Dry Alarm Contacts
Warranty
3 years
