| Type: | Aviation Obstruction Lights |
|---|---|
| Brand Name: | REDDOT |
| Light Source: | LED |
| Emitting Color: | Red |
| IP Rating: | IP67 |
| Type: | Low Intensity Obstruction Light series |
| Model Number: | PL10 |
| Place of Origin: | China (Mainland) |
| Base Type: | E27 |
| Lamp Body Material: | Aluminum Alloy |
| Certification: | CE,EMC,LVD |
| Beam Angle(): | 360 |
| Color Temperature(CCT): | |
| Lamp Power(W): | 6 |
| Battery Capacity: | 8 AH / 3.6V |
| Autonomy: | Flashing : 200 Hours / Steady : 100 Hours |
| Power Source: | Solar module, mono-crystalline silicon |
| Battery Type: | High-efficiency NiMH rechargeable battery |
Quick Details
Specifications

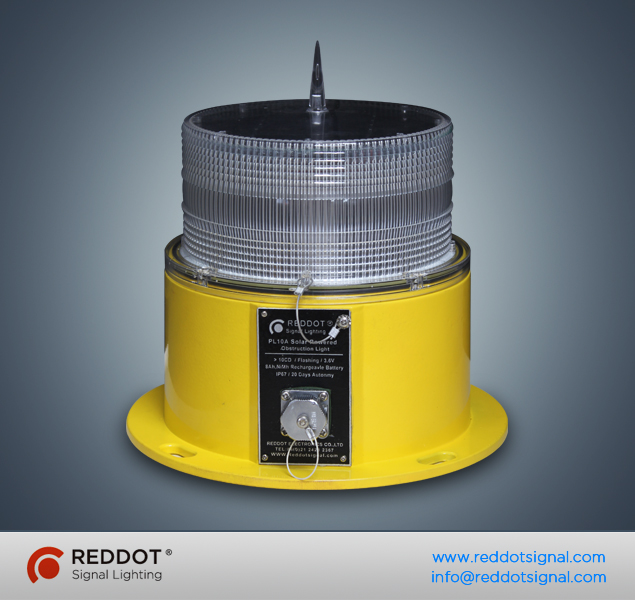

PL10 Solar Powered Obstruction Light
the solar panel comes with PL10 provides power supply to
the light, which makes PL10 a self-contained and care-free
Light unit. Also, with the solar function, the light is easy to
Deploy to almost any condition and any emergency case.
Robust body built and surface coating provides good
Protection against hash environments.
PL10 is equipped with an 8Ah NiMH rechargeable battery which could power the light up to 20 days
When the weather is cloudy & rainy. NiMH battery is also a clean power source with no pollution. The
NiMH battery is also easy to find almost anywhere.
PL10 is also available with an optional on/off switch for
Storing and protect battery from over-discharging.
Features
Ultra-light LEDs, energy saving
Self-contained without outside power supply
Maximum visibility distance 4 KM
Once fully charged, it can work for up to 200
Hours
Auto-off after being packed for 18 hours
Application
High-rise building marking
Telecom tower marking
Road obstruction marking
Navigation aid
Port, dock entrance & walkway
Buoy marking
Offshore gas & oil platform
Compliant
ICAO Annex 14, Volume 1, 4th Edition, July 2004
FAA Advisory Circular AC150/5370-2F
the solar panel comes with PL10 provides power supply to
the light, which makes PL10 a self-contained and care-free
Light unit. Also, with the solar function, the light is easy to
Deploy to almost any condition and any emergency case.
Robust body built and surface coating provides good
Protection against hash environments.
PL10 is equipped with an 8Ah NiMH rechargeable battery which could power the light up to 20 days
When the weather is cloudy & rainy. NiMH battery is also a clean power source with no pollution. The
NiMH battery is also easy to find almost anywhere.
PL10 is also available with an optional on/off switch for
Storing and protect battery from over-discharging.
Features
Ultra-light LEDs, energy saving
Self-contained without outside power supply
Maximum visibility distance 4 KM
Once fully charged, it can work for up to 200
Hours
Auto-off after being packed for 18 hours
Application
High-rise building marking
Telecom tower marking
Road obstruction marking
Navigation aid
Port, dock entrance & walkway
Buoy marking
Offshore gas & oil platform
Compliant
ICAO Annex 14, Volume 1, 4th Edition, July 2004
FAA Advisory Circular AC150/5370-2F
