| Type: | Waterproof Membrane |
|---|---|
| Brand Name: | BOGuan |
| Type: | bitument type |
| Color: | Customizable |
| Thickness: | 1mm,1.2mm,1.5mm,2mm,2.5mm |
| Length: | Customizable |
| Model Number: | BG-05 |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

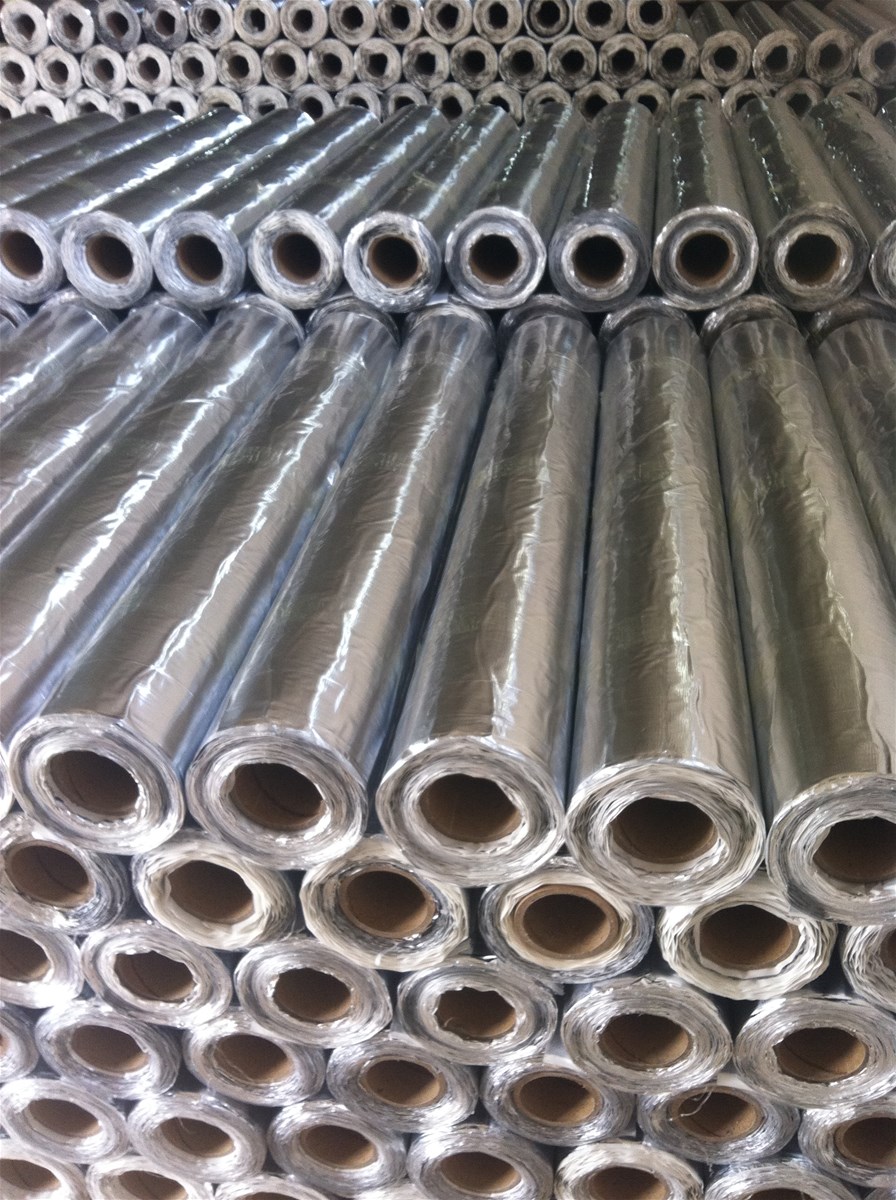

Self-adhesive membrane are produced with SBS elastomer and bitumen as raw materials, using polyethylene film.Aluminium foil coated on the upward or no file(both side self-adhesive) while self-adhesive protection layer on the downward surface.It has a widely prospect new contruction waterproof materials. Good self-adhesion, no leaking,cold flexibility,especially in self-adhesion. that is unque product in waterproof and application.
General:
Vehicle maintenance and repair, sealing around pipes and tanks, repairs to weatherproof enclosures, sealing over wood, concrete brick most metals and some plastics.
Surface:
1.Colorful Aluminum Foil
2.HDPE
3.PE
4.PVC
5.Fabric
6.Base on Customer's request.
Construction:
Flashing & Sealing to felt asphalt and bitumen surfaces, flashing of conservatories and porches, roof skirtings and parapet joints, sealing of skylights, vents, pipes, window sills and other openings, repair bandage for gutters and roofs, sealing glazing bars, cappings and protective coverings.
| NO. | PROGRAM | STANDARD | TEST | RESULT | |||
| 1 | ROLLS AREA,% | 99% | PASS | PASS | |||
| 2 | Kg/Square meter | 1.85 | 2.0 | 2.0 | |||
| 3 | THICKNESS | AVG | 1.50 | 1.51 | 1.50 | ||
| MIN | 1.35 | 1.45 | 1.50 | ||||
| 4 |
FACADE |
PERMEABILITY |
NO PENETRATIVE SPOTS | / |
NO SPOTS | ||
| SURFACE |
SMOOTH,NO HOLE,NO SHORT | / |
MEET STANDARD | ||||
| 5 |
PHYSICS PERFORMANCE |
IMPERVIOUSNESS | 120 min | 0.3 Mpa | IMPERVIOUS | ||
| MAX TEMPERATURE | NO AIRBELLS,NO SLIP | 80 C/240 min | NO-SLIP | ||||
| PULL N/50mm |
LONGITUDINAL | 200N | 230.65 | MEET STANDARD | |||
| LATERAL | 200N | 212.30 | MEET STANDARD | ||||
| ELONGATION |
LONGITUDINAL | 30% | 90% | MEET STANDARD | |||
| LATERAL | 30% | 90% | MEET STANDARD | ||||
| LOW TEMPERATURE | NO CRACK | -29C/240min | NO CRACK | ||||
| 6 | PACKAGE and MARK | Mark should complete,use artwork or shrink warp in rolls. | |||||
