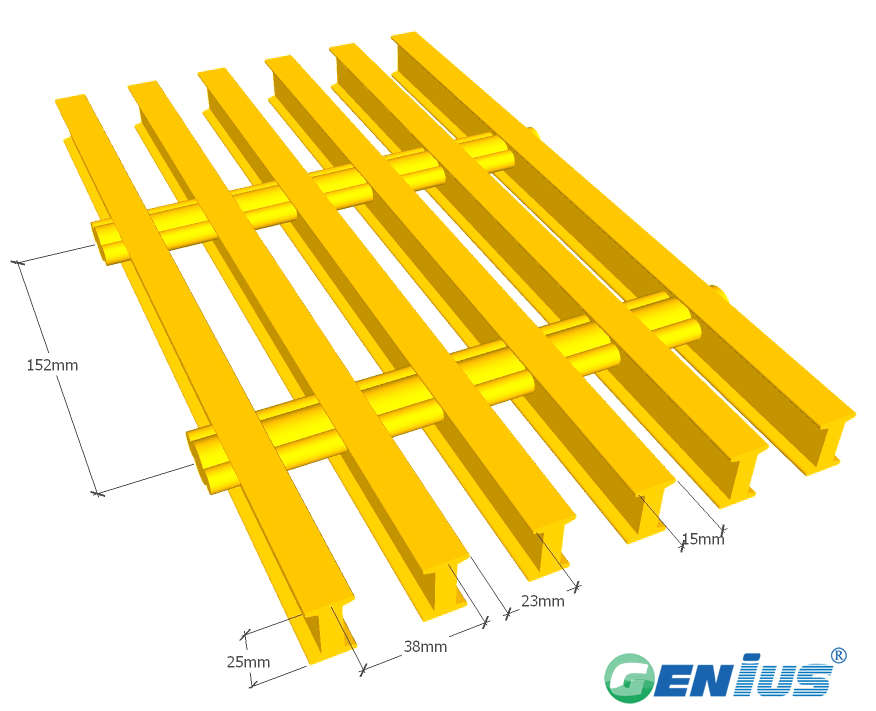

Standard Panel Size: 1220mm,915mm-wide  3050mm,6100mm-length Bearing Bar: 25mm Open Area: 60% Approx Weight (with three-core shoots): 12.2kg/m Liner load(units:mm)

Spacing	kg/m	kg/m	kg/m	kg/m	kg/m	kg/m	Limit
(mm)	300	450	750	1500	3000	5950	Load
450	0.59	0.89	1.52	2.94	5.83	11	11067
600	1.41	2.12	3.52	5.59	14.2	27.6	8639
900	4.75	7.13	11.9	23.7	---	---	5750
1200	11.2	16.9	28.2	---	---	---	4275

Uniform load(units: mm)

Spacing	kg/m	kg/m	kg/m	kg/m	kg/m	kg/m	Limit
(mm)	1000	1900	4000	7000	9500	19500	Load
450	1.23	2.36	4.95	8.67	11.9	22.2	48380
600	2.93	5.35	11.7	---	---	---	28344
900	9.91	19.52	---	---	---	---	12559
1200	23.5	---	---	---	---	---	6988
