| Dimensions: | 1m |
|---|---|
| Technique: | fiberglass |
| Surface Treatment: | Surface Mat |
| Application: | architecture |
| Brand Name: | Greenlogy |
Quick Details
Specifications
Genius FRP

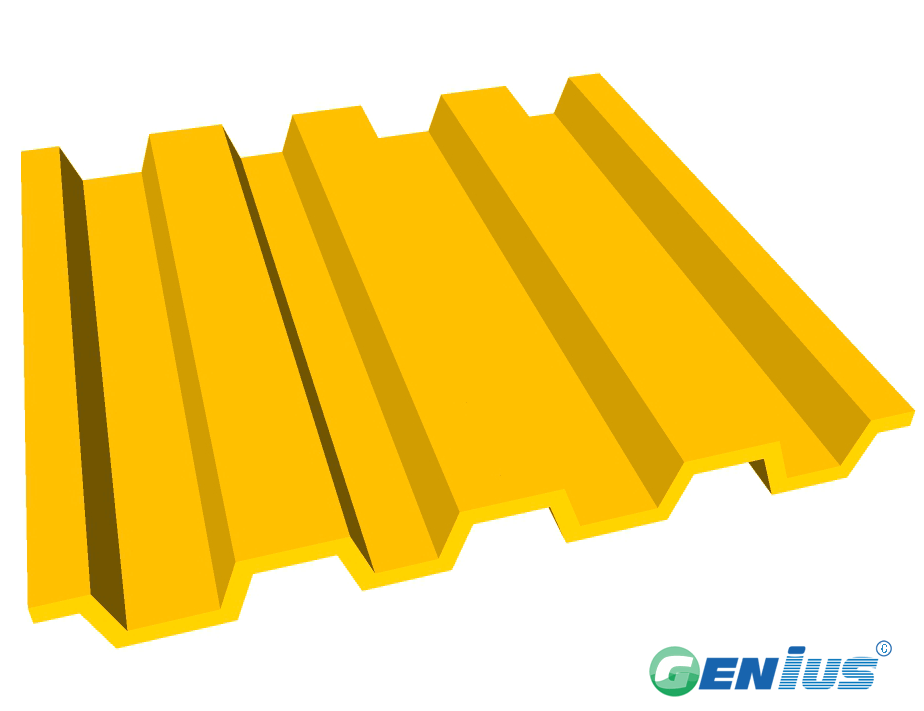

FRP structural shapes profile is made of glass fiber reinforced material, resin as adhesive, glass fiber cloth as a package reinforcement layer, through the thorough penetration, in the metal mold heating, molding, curing, drawing in the traction machine pulled A new type of composite material, with good physical properties, widely used in high strength, large span Situation.

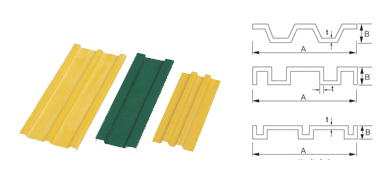

| Varieties | Size(mm) | Weight(kg/m) | Size(in) | Weight(lbs/in) |
| Skirting board | A*B*T | A*B*T | ||
| M2 | 100*13*3.2 M-shape | 1.1 | 4" x 1/2" x 1/8" M-shape |
2.43 |
| M3 | 100*16*5 M-shape | 1.3 | 4" x 5/8" x 3/16" M-shape | 2.87 |
| M4 | 148*12*3 M-shape | 1.27 | 23/4" x 1/2" x 1/8" M-shape | 2.8 |
| W1 | 100*19*5 W-shape | 1.36 | 4" x 3/4" x 3/16" W-shape |
3 |
| W2 | 100*15*3.2 W-shape | 1.1 | 4" x 9/16" x 1/8" W-shape |
2.43 |
| W3 | 150*15*3.2 W-shape | 1.6 | 6" x 9/16" x 1/8" W-shape |
3.53 |
