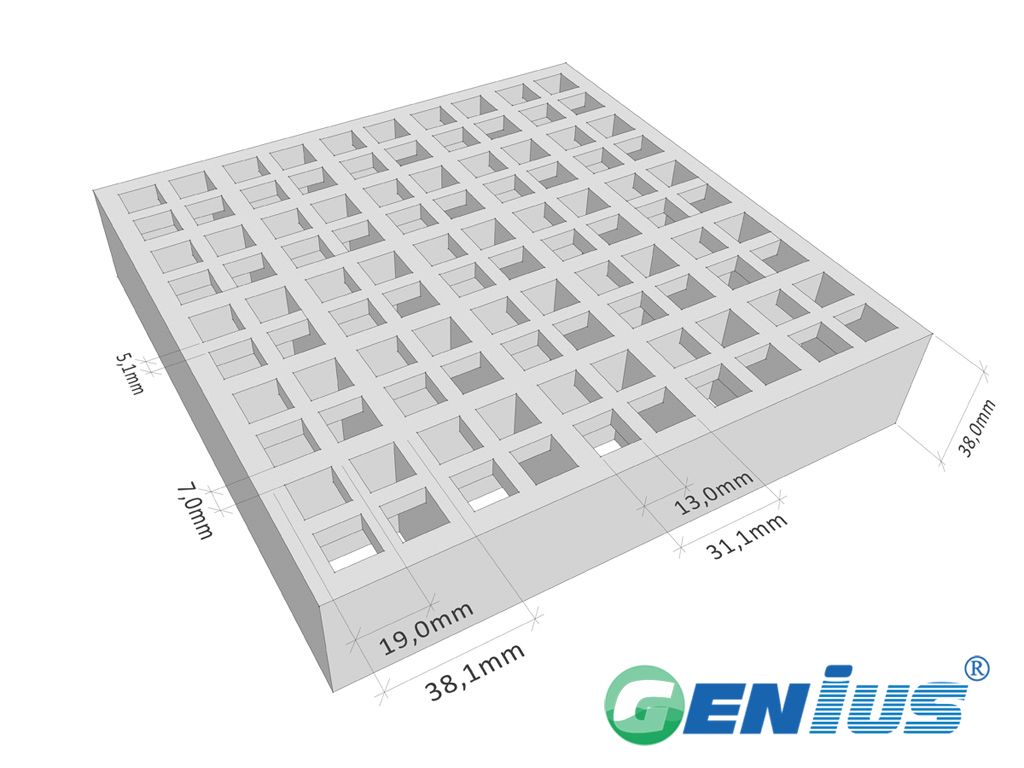

19*19*38(mm)

Panel size available:

1524*4000,1220*3660,1220*2440,

915*3050 Bidirectional force.

Bearing bar thickness (Top/Bottom): 7.5/5.0

Bearing bar center: 19

Open Aera: 40%

Approx Weight: 23.5kgs/m

Uniform load(units: mm)

Deflcvtion	kg/m	kg/m	kg/m	kg/m	kg/m	kg/m	kg/m
Span(mm)	240	480	980	1450	2450	3650	4880
300	0.09	0.19	0.38	0.49	0.78	1.05	---
600	0.43	0.81	1.55	2.31	3.84	5.74	---
900	1.70	3.45	6.96	10.5	17.5	23.3	---
1200	5.97	12.2	24.5	32.6	38.7	---	---

Liner load(units:mm)

Deflcvtion	kg/m	kg/m	kg/m	kg/m	kg/m	kg/m	Limit
Span( mm)	150	300	450	600	750	1500	Load
300	0.36	0.48	0.61	0.76	0.89	1.06	17116
600	0.66	1.25	1.85	2.46	3.07	8.48	8718
900	1.8	3.68	5.56	7.42	9.3	13.8	5817
1200	4.75	9.68	14.6	19.6	21.2	---	3755
