| Moving Type: | Wheel Loader |
|---|---|
| Type: | Front Loader |
| Brand Name: | UNIONTO |
| Condition: | New |
| Year: | 2017 |
| Make: | Shandong Kaiqiang Mechinery., Ltd |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Warranty: | one year |
| Certification: | ISO |
| Rated Load: | 3000kg |
| Dimension(Long * Breadth * High): | 6890*2430*3070mm |
| Place of Origin: | China (Mainland) |
| Model Number: | UNIONTO 836 |
| Bucket capacity: | 1.7-2.5m3 |
| Maximum traction force: | 95KN |
| Maximum breakout force: | 127KN |
| Name: | Engineering & Construction Machinery/Earth-moving Machinery Wheel loader/3Ton Unionto Wheel loader |
Quick Details
Specifications

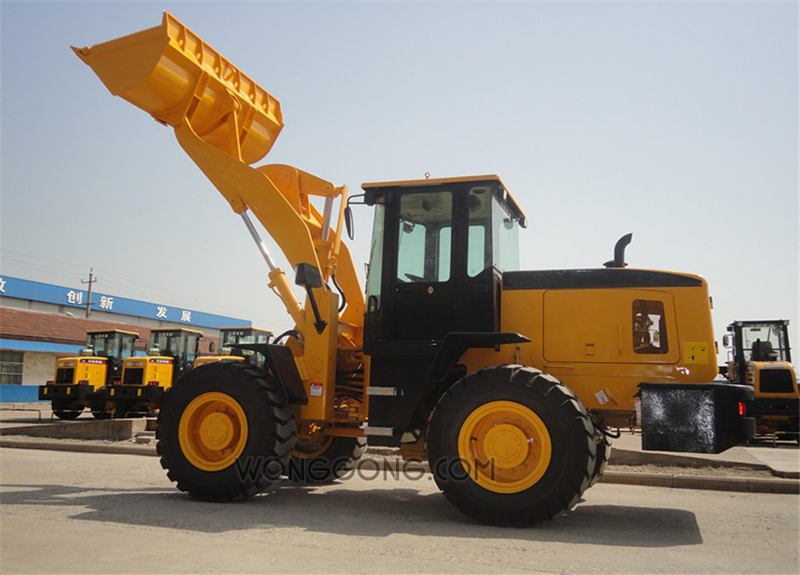

Engineering & Construction Machinery/Earth-moving Machinery Wheel loader/3Ton Unionto Wheel loader
the Main Performance Parameter of Wheel Loader UNIONTO-836
Performance |
1 |
Rated loading |
3000kg |
2 |
Overall weight |
9600kg | |
3 |
Bucket capacity |
1.7-2.5m3 | |
4 |
Maximum traction force |
95KN | |
5 |
Maximum breakout force |
127KN | |
6 |
Maximum grade ability |
30 | |
7 |
Maximum dump height |
3100mm | |
8 |
Maximum dump reach |
1006mm | |
9 |
Overall dimension (LWH) |
6890*2430*3070mm | |
10 |
Minimum turning radius |
5097mm | |
Engine |
11 |
Model |
YC6B125G-T20 |
12 |
Type |
Vertical, in-line, water cooled, 4-stroke diesel engine | |
13 |
NO. of cylinder-bore*stroke |
6-108*125 | |
14 |
Rated power |
92kw2200r/min | |
15 |
Maximum torque |
500N.M | |
16 |
Min. fuel-consume ratio |
210Kw h | |
Transmission system |
17 |
Torque converter |
YJ315-X |
18 |
Gearbox type |
Countershaft, constant mesh spur gear type, pOwer shiFt | |
19 |
Gears |
4 forward, 2 reverse | |
20 |
Maximum speed |
40km/h | |
Drive axles |
21 |
Main reducTion type |
Spiral bEvel gear Single Reduction |
22 |
Hub reduction type |
Single-stage pLanetary reduction | |
23 |
Wheel base (mm) |
2660mm | |
24 |
Wheel tread |
1800mm | |
25 |
Ground clearance |
400mm | |
Hydraulic system |
26 |
System working pressure |
16,5MPa |
27 |
Boom lifting time |
4.83 | |
28 |
Total time |
9.150.5s | |
Brake system |
31 |
Service brake |
Air over oil caliper disc brake on 4 wheels |
32 |
Parking brake |
Manual caliper disk brake | |
Tyre |
33 |
SPecification |
17.5-25 |
34 |
Front tyre pressure |
0.4Mpa | |
35 |
rEar tyre pressure |
0.35Mpa |
