the KCT range of split core current transformers have been specifically designed to be small CT and easy to open and yet maintain the accuracy required for kwh meters. the benefit of a split core current transformer is that it can be placed into position easily and without disturbing or disconnecting the main cables it is monitoring. the KCT range of current transformers has two insulated terminal covers for connecting the S1 and S2 cables which lock down over the terminal screws fully insulating the connections. this makes it ideal to use Autometers cable hamesses which are colour coded and individually numbered on each conductor ensuring simple and easy connection from the current transformer to the electricity meter.

Features:

1:the structure of the self-locking, Safe, easy to install, portable

2:Wide inner window, allowing clamping of big cables or bus-bars

3:Wide range of sizes to accommodate all the existing installations

4:Isolated plastic case recognized according to UL94-V0

5:Wires plugs,Audio plugs,Power plugs and so on five kinds of plugs

Applications:

1:Current measurement, monitoring and protection for electrical wiring and equipment.

2:Current and power measurement for electric motors, lighting, air Compressor,heating and ventilation system, air-condition equipment and automation control system.

3:Current, power and energy monitoring device.

4:Relay protection device.

Technique Index:

Electrical Parameter		Mechanical Parameter
Frequency	50-2KHz	Case	PA/UL94-V0
Rated Input	5A-200A	Bobbin	PBT
Measuring range	10%in-120%in	Core	Silicon steel
Rated Output	0.333V(AC)or 0-500mA	Internal structure	Epoxy
Ratio	1.0%	Construction	Tie
Phase angle	60min	Operation Temp	-25oC~+75oC
Dielectric strangth	2.5KV/1mA/1min	Operating Humidity	85%
Insulation Resistance	DC500V/100M min	Output Connection	UL1015 20AWG Wire2.5m

Specification:

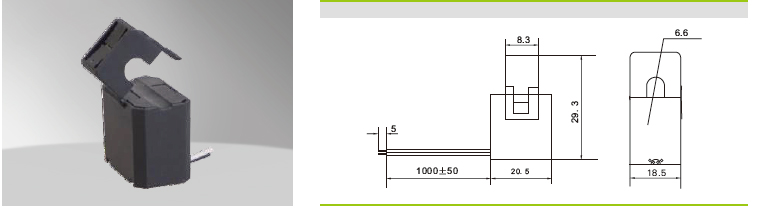

MODEL	KCT-6
Current Ratio	5A/2.5mA	10A/5mA	20A/10mA
Primary Current	5A	10A	20A
Max.Current	30A	30A	300A
Output	2.5mA	5mA	10mA
Load Resistance	200	100	50
Class	0.5/1.0
Turns Ratio	2000:1	2000:1	2000:1
Protection Level	7.5V0-P	7.5V0-P	7.5V0-P
Insulation Category	CATIII
Operating Condition	-20+50,85%RH,No condensation,in-house&Any direction installable
Storage Condition	-30+50,85%RH,No condensation

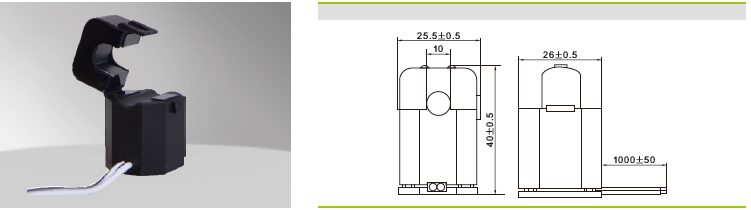

MODEL	KCT-10
Current Ratio	5A/2.5mA	20A/10mA	60A/20mA	75A/25mA	1~75A/0.333V
Primary Current	5A	20A	60A	75A	1~75A
Max.Current	60A	60A	750A	75A	1~75A
Output	2.5mA	10mA	20mA	25mA	333mV
Load Resistance	400	100	50	20	/
Class	0.5/1.0
Turns Ratio	2000:1	2000:1	3000:1	3000:1	/
Protection Level	7.5V0-P	7.5V0-P	7.5V0-P	7.5V0-P	7.5V0-P
Insulation Category	CATIII
Operating Condition	-20+50,85%RH,No condensation,in-house&Any direction installable
Storage Condition	-30+50,85%RH,No condensation

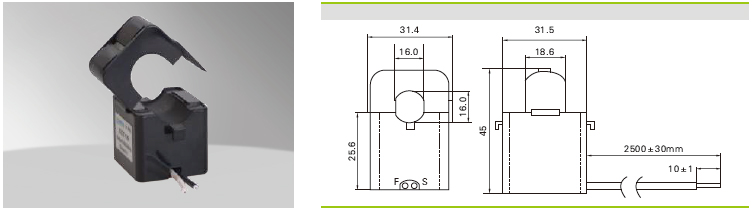

MODEL	KCT-16
Current Ratio	100A/33.3mA	100A/40mA	120A/40mA	200A/66.7mA	100~200A/0.333V
Primary Current	100A	100A	120A	200A	100~200A
Max.Current	120A	120A	120A	240A	240A
Output	33.3mA	40mA	40mA	66.7mA	333mV
Load Resistance	50				/
Class	0.5/1.0
Turns Ratio	3000:1	2500:1	3000:1	3000:1	/
Protection Level	7.5V0-P	7.5V0-P	7.5V0-P	7.5V0-P	7.5V0-P
Insulation Category	CATIII
Operating Condition	-20+50,85%RH,No condensation,in-house&Any direction installable
Storage Condition	-30+50,85%RH,No condensation

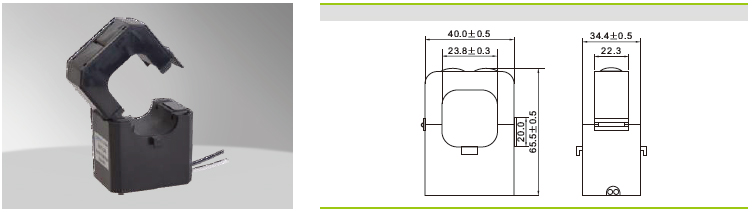

MODEL	KCT-24
Current Ratio	100A/40mA	200A/40mA	200A/66.7mA	400A/80mA	100~400A/0.333V
Primary Current	100A	200A	200A	400A	100~400A
Max.Current	150A	240A	240A	480A	4800A
Output	40mA	40mA	66.7mA	80mA	333mV
Load Resistance	50				/
Class	0.5/1.0
Turns Ratio	2500:1	5000:1	3000:1	5000:1	/
Protection Level	7.5V0-P	7.5V0-P	7.5V0-P	7.5V0-P	7.5V0-P
Insulation Category	CATIII
Operating Condition	-20+50,85%RH,No condensation,in-house&Any direction installable
Storage Condition	-30+50,85%RH,No condensation

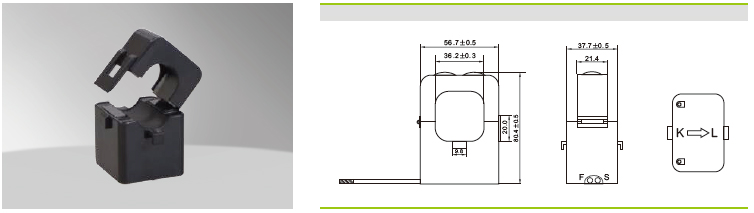

MODEL	KCT-36
Current Ratio	300A/100mA	400A/40mA	500A/50mA	600A/60mA	300~600A/0.333V
Primary Current	300A	400A	500A	600A	300~600A
Max.Current	360A	480A	600A	720A	720A
Output	100mA	40mA	50mA	60mA	333mV
Load Resistance	50				/
Class	0.5/1.0
Turns Ratio	3000:1	10000:1	10000:1	10000:1	/
Protection Level	7.5V0-P	7.5V0-P	7.5V0-P	7.5V0-P	7.5V0-P
Insulation Category	CATIII
Operating Condition	-20+50,85%RH,No condensation,in-house&Any direction installable
Storage Condition	-30+50,85%RH,No condensation
