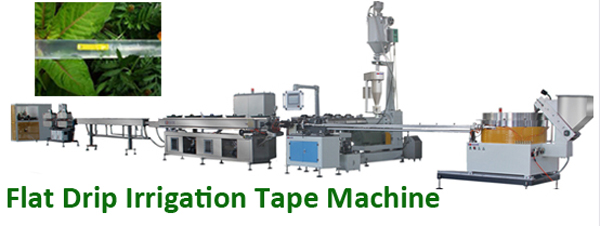

Inline flat drip irrigation pipe machine

1) Flat Dripper Screening Device:Special Designed centrifugal type screening structure. High precious dripper Screenand multiple dripper detecting device. to ensure the dripper Supply enough and 100% correct.

2) Dripper Transporting Device:Equip with high precious belt, Siemens Servo controller control.

3) High efficiency PE extruder: Special designed screw and barrel, ensure the material extrusion more stability and more higher efficiency.

4) High precious Gravimeter Device:Make sure the extruder pressure more stable, the manufactured pipe thickness more balance, largely save raw material

5) Die head:Special linear designed,360⁰ No dead corner.

6) Vacuum calibrating cooling stand: Siemens PLC to control the temperature

7) High speed pipe haul off machine:Driven by Siemens Servo motor, Siemens servo controller control. Ensure the haul off more smooth and steady.

8) Tape punching machine:with advanced punching type, high precious visual system, Siemens PLC control system. Ensure the punching position accurately.

9) Auto Pipe Coiling Machine:Servo traversing device,automatically change the coil, ensure the traverse tape even, orderliness

Specification for Inline Flat drip irrigation pipe machine

Model NO.	KDDG-II
Installation power	99KW
Operation power	54---59KW
Voltage	380V50HZ
Diameter	16mm
Wall thickness	0.15---0.6mm
Dripper distance	100---2000mm
Production speed	80-200 m/min
Emitter selection speed	<=1300 pieces/minute
Punching speed	<=900 holes/minute
Haul-off speed	<=200m/min
Coiling Speed	<=220m/min
Normal Water Consumption	0.1-0.5 m3/24hours
Normal Air Consumption	1.5m3/min
Required Air Pressure	>=0.5Mpa
Dimension	(L)30M*(W)4M*(H)2.5M
Container quality	1*40GP

Manufactured Pipe of the flat drip irrigation tape machine
