FRC Series Flexible Rogowski Coil
FRC is a flexible current transducer Based on Rogowski principle, particularly suitable for measurement in Combination with portable devices. FRC rogowski coils are available in Different sizes and can be supplied according to customer's design, therefore They can be used in all those applications, in which traditional transducers Are not fitting due to its size and/or weight. Due to its specific features, FRC Flexible rogowski coils is an extremely confortable solution for current Measurement and can be used in a number of cases where traditional current Transducer is not the adequate solution.
FEATURES:
Suitable to measure currents from A to hundreds of kA.High linearity.
the absence of magnetic core grants a wide frequency
Response to be suitable for measurement of harmonic
Content and transients.
Very useful with large size or awkward shaped conductors
or in places with limited access.
Non-intrusive, no power drawn from the main.Not damaged by large overloads.
There is no danger from open-circuited secondary.
SPECIFICATION: TRANSDUCER Coil length: 210mm/350mm/420mm/510mm/600mm/800mm Inner diameter: 60mm/103mm/125mm/155mm/180mm/245mm
(10%) Coil cross section: 6.50.2 mm/80.2 mm/100.2 mm Fastening: Bayonetholder Material: Thermoplastic UL94-V0 Color: Coil: black, red, yellow, blue
(other color could be customized) Closing unit: black CONNECTION CABLE Type: Cable
(with 3-wire terminal) Cable + BNC/Oscilloscope Interface Length: 3000 mm (standard), other length could be customized. Material: Color: black ELECTRICAL CHARACTERISTICS Output level (RMS): 40mV/1000A
@50Hz 80mV/1000A
@50Hz 100mV/1000A
@50Hz Accuracy: Class 1.0 (coil must be calibrated with
Amplifier/integrator load impedance) Linearity (10% to 100% of range): 0.1% of reading Frequency range/Bandwidth: Approx 10Hz to 10MHz Phase shift: 90 Conductor position sensitivity: 2% Maximum Influence of external field: 2% Maximum ENVIRONMENTAL CONDITIONS Operating temperature: from -20to +75 Storage temperature: from -30to +75(suggest normal temperature ) Safety Working voltage(max): 1000Vrms CATIII 600Vrms CATIV Hipot test 7400Vrms @50/60Hz 1min.
/

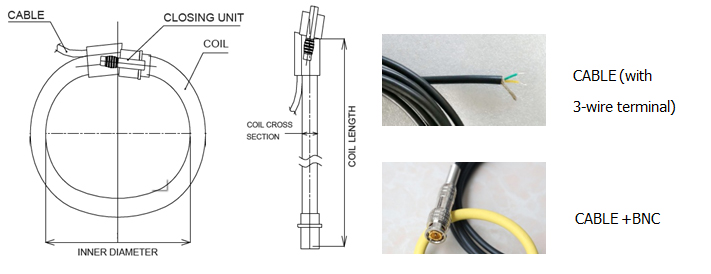

SCHEMATIC DIAGRAM: CABLE CONNECTION:
ORDER GUIDE: Model Coil length (mm) Inner diameter (mm) Output level (RMS) Coil color FRC 210 mm 60mm 10% 40mV/1000A @50Hz Black, Red, Yellow FRC 350 mm 103mm 10% 40mV/1000A @50Hz Black, Red, Yellow 80mV/1000A @50Hz Black, Red, Yellow, Blue FRC 420 mm 125mm 10% 40mV/1000A @50Hz Black, Red, Yellow 80mV/1000A @50Hz Black, Red, Yellow, Blue 100mV/1000A @50Hz Black, Red, Yellow FRC 510 mm 155 mm 10% 80mV/1000A @50Hz Black, Red, Yellow, Blue 100mV/1000A @50Hz Black, Red, Yellow FRC 600 mm 180 mm 10% 100mV/1000A @50Hz Black, Red, Yellow FRC 800 mm 245 mm 10% 100mV/1000A @50Hz Black, Red, Yellow
Flexible Rogowski Coil with G1 Integrator

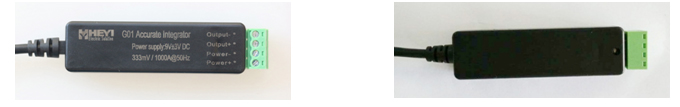

G1 is a USB-sized integrator, could be Combined with any model and any size of FRC series rogowski coils to amplify the output signal. It's essential to equalize and shift by 90 the output Signal from the rogowski coils. It consists of an active electronic circuit with negligible offset and a good linearity. Flexible rogowski coils with G1 Integrator meets customer requirements for different outputs and allows for More interfacing with more measurement devices.
SPECIFICATION:
ELECTRICAL CHARACTERISTICS | |
Current range |
1A - 10KA |
Output level (RMS): |
333mV(any volt signal within 3V could be customised) |
Accuracy: |
Class 1.0 (coil must be calibrated with Amplifier/integrator load impedance) |
Linearity (10% to 100% of range): |
0.1% of reading |
Frequency range/Bandwidth: |
Approx 10Hz to 100KHz |
Conductor position sensitivity: |
2% Maximum |
Inuence of external field: |
2% Maximum |
When you make the order, please notice What's the input current and output voltage signal do you require. the output Volt could be any one within 3V, like 333mV, 1V, 3V and so on.
G1
INTEGRATOR:
Flexible Rogowski Coil with G2 Integrator

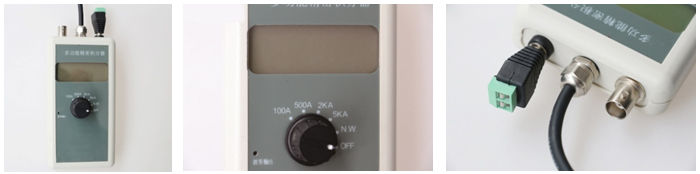

G2 is a handheld type integrator, Could be combined with any model and any size of FRC series rogowski coils to Achieve five current range measurement. It's essential to equalize and shift by 90 the output signal from the rogowski coils. It consists of an active Electronic circuit with negligible offset and a good linearity. the output Signal can be used in oscilloscope, digital multimeter or data logger recording Instrument.
SPECIFICATION:
ELECTRICAL CHARACTERISTICS | |
Current range: |
1-200A/500A/1000A/2000A/5000A |
1-500A/1000A/2000A/5000A/10000A | |
Output level (RMS): |
1V |
Accuracy: |
Class 1.0 (coil must be calibrated with Amplifier/integrator load impedance) |
Linearity (10% to 100% of range): |
0.1% of reading |
Frequency range/Bandwidth: |
Approx 10Hz to 100KHz |
Conductor position sensitivity: |
2% Maximum |
Inuence of external field: |
2% Maximum |
Output terminals: |
BNC plug |
G2 INTEGRATOR:
When you make the order, please notice what kind of current range do you require.
