| Moving Type: | Wheel Loader |
|---|---|
| Type: | Mini Loader |
| Brand Name: | UNIONTO |
| Condition: | New |
| Year: | 2017 |
| Make: | Shandong Kaiqiang Machinery., Ltd |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Warranty: | one year |
| Certification: | ISO |
| Rated Load: | 2000kg |
| Dimension(Long * Breadth * High): | 5633*2120*2712mm |
| Place of Origin: | China (Mainland) |
| Model Number: | 828 |
| Maximum tractive force: | >=54KN |
| Maximum breakout force: | >=51KN |
| Maximum dump height: | 2622mm |

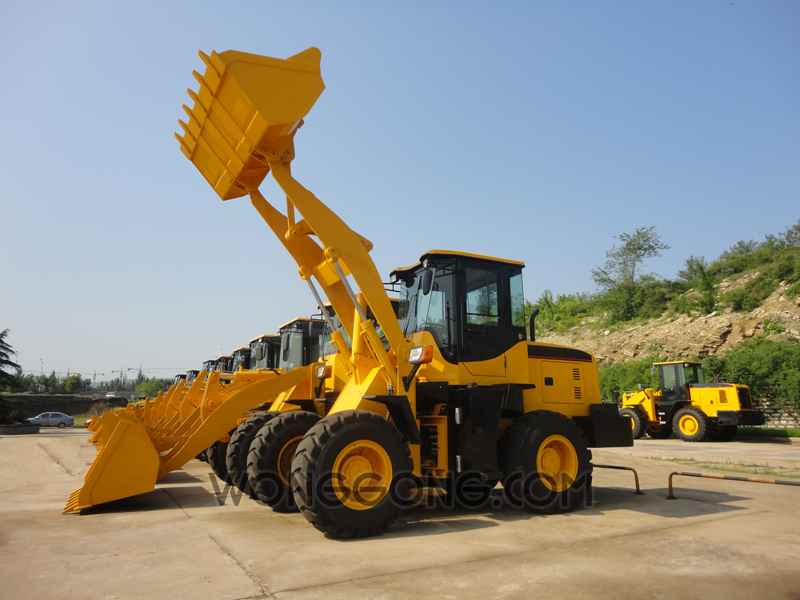

| Name: | Chinese mini safe wheel loader UNIONTO 828 |
Quick Details
Specifications
UNIONTO-828 wheel loader, Weichai engine (OEM Available)
Performance feature:
1) Single handle, full hydraulic pilot manipulation, portable and flexible, high efficiency
2) in-line, water cooled, 4-Stroke engine which produced by UK technology, with good cold start performance and high power.
3) Using split type torque converter and gearbox, high efficient, easy to maintenance
4) Streamlined design element, make the appearance more beautiful, more modern
5) Cab with full toughened molding glass, can optional chooses air condition make drive more comfortable and vision wider.
6) Improved spring connect model, equip with luxury dashboard and seat, vibration reduction, convenient and comfortable
7) Machine frame choose quality alloy steel, computer optimization design, outstanding performance. Increasing axle loading, safe and reliable
8) Longer wheelbase makes homework and running more smoothly, superior performance
the Main Performance Parameter of Wheel Loader UNIONTO-828
Performance |
1 |
Rated loading |
2000kg |
2 |
Overall weight |
5800kg | |
3 |
Rated bucket capacity |
1.2m3 | |
4 |
Maximum tractive force |
54KN | |
5 |
Maximum breakout force |
51KN | |
6 |
Maximum grade ability |
30 | |
7 |
Maximum dump height |
2622mm | |
8 |
Maximum dump reach |
752mm | |
9 |
Overall dimension (LWH) |
563321202712mm | |
10 |
Minimum turning radius |
4759mm | |
Engine |
11 |
Model |
Weichai4105G34 |
12 |
Type |
in-line, water cooled, 4-stroke, direct injection, diesel engine | |
13 |
No. of cylinder-bore/stroke |
4105120mm | |
14 |
Rated power |
55kw-2200r/min | |
15 |
Maximum torque |
270N.M | |
16 |
Min fuel-consume ratio |
243g/kw.H | |
Transmission system |
17 |
Torque converter |
YJ280A |
18 |
Gearbox type |
Countershaft power-shift | |
19 |
Gear shift |
2 forward shift, 2 reverse shift | |
20 |
Maximum speed |
24km/h | |
Drive axles |
21 |
Main reducTion type |
Circular Arc Bevel gear, single stage |
22 |
Hub reduction type |
Single stage planetary type | |
23 |
Wheel base (mm) |
2400mm | |
24 |
Wheel tread |
1640mm | |
25 |
Ground clearance |
310mm | |
Hydraulic system |
26 |
System working pressure |
160MPa |
27 |
Boom lifting time |
4.8s0.2s | |
28 |
Total time |
9.2s0.5s | |
29 |
Fuel tank capacity |
80L | |
30 |
Function of leveling automatically |
Yes | |
Brake system |
31 |
Service brake |
Air over hydraulic caliper disc brake on 4 wheels |
32 |
Parking brake |
Flexible shaft operated external drum | |
33 |
EMergency braking |
Hydraulic caliper disc brake on 4 wheels | |
Tyre |
34 |
SPecification |
16/7020 |
35 |
Front tyre pressure |
0.22Mpa | |
36 |
Rear tyre pressure |
0.18Mpa |
