| Application: | Laser Cutting |
|---|---|
| Certification: | CE,ISO |
| Brand Name: | joy |
| Graphic Format Supported: | AI,BMP,DST,DWG,DXF,PLT |
| Applicable Material: | Acrylic,Crytal,Glass,Leather,MDF,Metal,Paper,plastic,Plexiglax,Plywood,Rubber,Stone,Wood |
| Laser Type: | CO2 |
| After-sales Service Provided: | Overseas third-party support available |
| Model Number: | N145 |
| Place of Origin: | China (Mainland) |
| Cooling Mode: | Water Cooling |
| CNC or Not: | Yes |
| Condition: | New |
Quick Details
Specifications
Features:

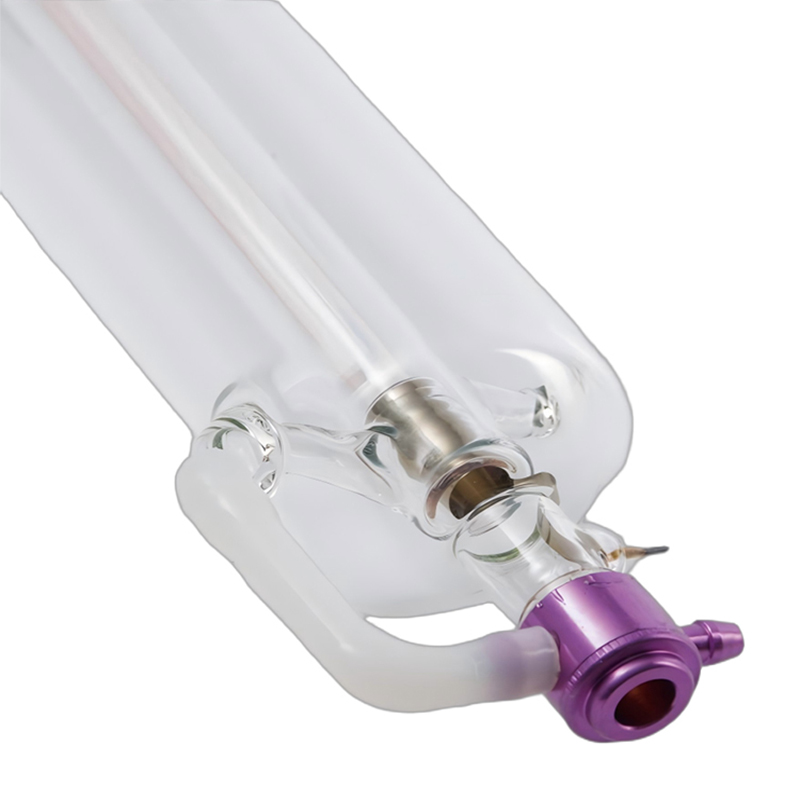

1.N series CO2LaserTube isthe traditional products.
2Beam:It'S adopted stable cavity structure to ensure the beam mode is up to TEM00.
3.Power:the powerIs higher compared to common laser tube with the same length.
4.Lifespan:the working life is up to 6000-8000 hours because of the catalyst coated discharge tube with processed electode.
5.Reliability:the discharge raw glass tube is made from Germany.the perfect seperation technique can effective block the air and prevent the internal gas from spreading.
Technical details:
Model |
Description of Goods |
Diameter (mm) |
Length (mm) |
Min Power(W) |
Max Power(W) |
Catalyst |
Warranty(month) |
N160 |
CO2 laser tube |
60 |
1600 |
80 |
100 |
No |
3 |
N125 |
CO2 laser tube |
80 |
1250 |
80 |
100 |
Yes |
6 |
N145 |
CO2 laser tube |
80 |
1450 |
100 |
130 |
Yes |
6 |
N165 |
CO2 laser tube |
80 |
1650 |
130 |
150 |
Yes |
6 |
N185 |
CO2 laser tube |
80 |
1850 |
150 |
180 |
Yes |
6 |
Advantage:
1.Mature products
2.Stable performance and high cost-efficiency
3.Stable output power,good spot mode
Application:
General type laser tube and widely used on CO2 laser engraving or cutting machine and other laser machinery.
Package:
Carton,foam and wooden box.
