| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 12 months |
| Brand Name: | China KAIDE |
| Application: | Microduct Bundle Machine |
| Condition: | New |
Quick Details
Specifications
2017 New Microduct Bundle Making Machine
1.General Information
Microducts bundles extrusion machine is used to produce the new type telecommunication Microduct Bundle,called MIcroduct Bundle.
HDPE MicroductsGeneral Description:
Using
MicroDucts is a better way to utilize that empty space, both today and
Tomorrow. It allows you to expand your fiber network as you bring on new
Customers. It enables you to increase bandwidth as your needs increase.
Micro
Duct is mainly made of high density polyethylene (HDPE) and
Manufactured by the technology of synchronized extrusion of PE. Its
Standard outer diameter is less than 16mm and its inner wall is
Permanently solid lubricant layer (silicon layer).
2.Micro tube size and tube bundle information:
Item No. |
Outer Diameter (mm) |
Inner Diameter (mm) |
Thickness (mm) |
Direct Installation Tube Bundle (Tube number) |
Direct bury Tube Bundle (Tube number) |
1 |
5.0 |
3.5 |
0.75 |
2; 4; 7; 12; 19; 24; 27 Outer thickness: 1.7mm |
2; 4; 7; 12; 19; 24; 27; Outer thickness:3.4mm |
2 |
7.0 |
3.5 |
1.75 |
|
|
3 |
7.0 |
5.5 |
0.75 |
|
|
4 |
8.0 |
6.0 |
1.0 |
|
|
5 |
10.0 |
8.0 |
1.0 |
1; 2; 4; 7; Outer lthickness: 1.7mm |
1;2;4;7; Outer thickness: 3.4mm |
6 |
12.0 |
8.0 |
2.0 |
|
|
7 |
12.0 |
10.0 |
1.0 |
1;2;4;7; Outer thickness: 1.7mm |
1;2;4;7; Outer thickness: 3.4mm |
8 |
14.0 |
12.0 |
1.0 |
|
|
9 |
14.0 |
10.0 |
2.0 |
|
|
10 |
16.0 |
12.0 |
2.0 |
|
|
11 |
16.0 |
14.0 |
1.0 |
|
Its construction has the following characteristics:
- Two layers, inner and outer layer is manufactured by the technology of Synchronized extrusion of PE in order to achieve the tight joint without separation.
- Inner Wall of duct has two kinds: smooth inner wall or the inner wall with Longitudinal ribs to guide the airflow. No matter which kinds, both are Permanently solid lubricant layer with very low friction of coefficient.
- the duct surface is smooth without defects such as visible holes or scars..

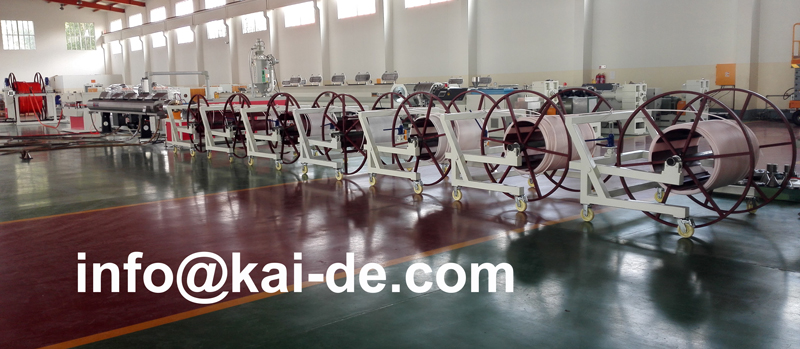

4. PE Silcon Microduct Bundle Tube Production Machine photo
Product List
KAIDE Plastics Pipe Extrusion Making Machine List: | |
PPR/PERT pipeExtrusion machine |
PEXa pipeExtrusion machine |
Glass fiber PPR pipeExtrusion machine |
PEXb pipeExtrusion machine |
HDPE pipeExtrusion machine |
PB pipeExtrusion machine |
PA pipeExtrusion machine |
EVOH pipeExtrusion machine |
Al-plastic pipeExtrusion machine |
PVC/PA/PE corrugated pipeExtrusion machine |
Drip irrigation pipeExtrusion machine |
PVC steel reinforced pipeExtrusion machine |
Warmly welcome to visit our factory to see machine and discuss further~~
HDPE PE optical cable Micro duct bundles Coating jacketed tube/pipe making machine
