| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 12 months |
| Brand Name: | China KAIDE |
| Application: | Energy Supply Pipe |
| Condition: | New |
Quick Details
Specifications

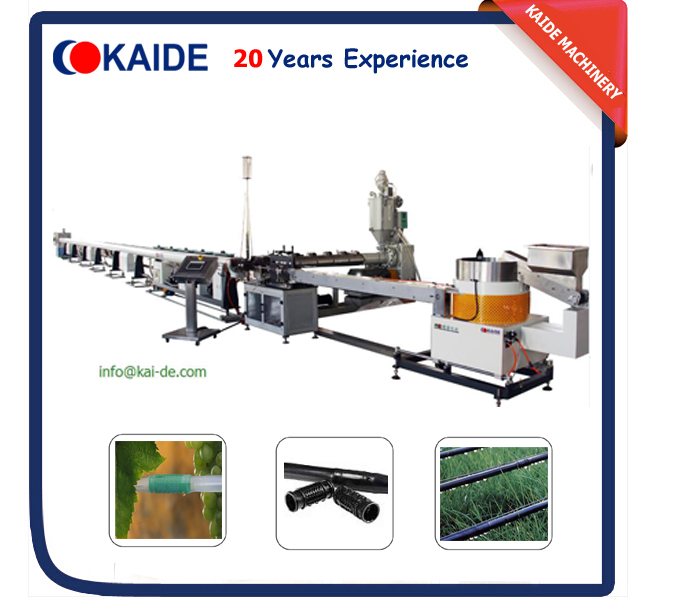

Pipe extrusion machine for making round drip irrigation pipe
the
Round Drip irrigation pipe machine is used to produce inline round drip
Irrigation pipe continously with high speed,steady thickness, high
Precise dripper space and hole punching.
Specification as below
| Line Model | Screw Diameter | L/D | Production Scope | Production Speed | Nominal Power |
| SJ-60 | 60mm | 36:1 | 8-20mm | 60m/min | 91KW |
| SJ-65 | 65mm | 33:1 | 8-20mm | 35m/min | 65KW |
| SJ-45 | 45mm | 30:1 | 8-20mm | 15m/min | 37KW |
1) Dripper sorting & conveying system:Dripper identifying speed 400pcs/min,which ensure the precise dripper supply during high speed production.
2) Punching system
the
Round drip irrigation pipe line adopted mechanical punching mode,
Automatically tracking the pipe production speed, guaranteed the
Accuracy of punching position. Punching speed: 400pcs/min
3) Siemens PLC Synchronous control
the
Synchronous control is realized from dripper feeding, screening &
Sequence, conveying & inlaid, haul-off, to punching and coiling,
Which ensures the precise control and stable running of high speed
Production.
Any interest, pls feel free to contact us.
