| Brand Name: | Olive |
|---|---|
| Weight: | 25g |
| Color: | black |
| size: | 62x51x11mm |
| Transmission Distance: | 15m |
| Place of Origin: | China (Mainland) |
| Model Number: | GL-HSPA2-BK |
| color: | black |
| HDMI version: | HDMI 1.4 |
| HDMI resolution: | 1920*1080/60Hz |
| Support audio format: | DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD HD(HBR) |
Quick Details
Specifications
Specifications
INTRODUCTION

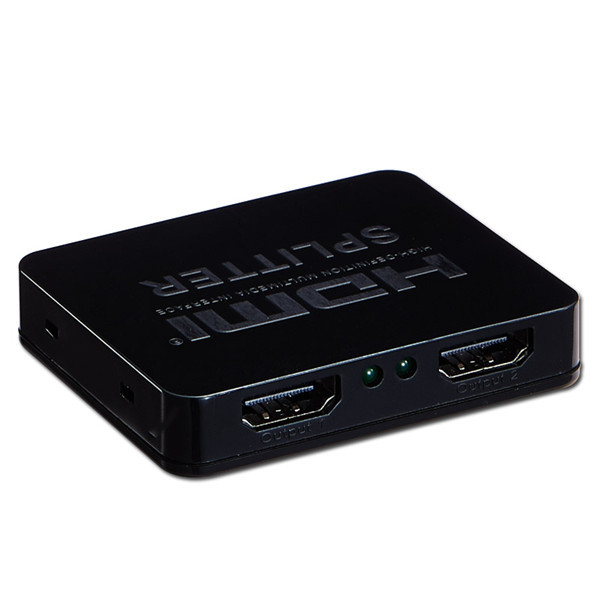

the Full 3D 1x2 HDMI Splitter use a single HDMI source,Accessing to multiple HDMI sinks. the Splitter allows one HDMI devices to be split easily to two HDMI compatible monitors or projectors. the Splitter can also be placed at the end of a long HDMI cable to regenerate the HDMI signal.
Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
FEATURES
L One HDMI input signal split to two HDMI sink devices
L Support Full HD, Full 3D
L Support up to 1080P/60Hz
L Support CEC
L Support deep color 30bit, 36bit
L Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
L Digital audio format, as DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD/HD(HBR)
L Support signal retiming
L Support input up to 15metres AWG26 HDMI standard cable length, output up to 20Metres AWG26 cable length
L No loss of quality
SPECIFICATIONS:
| HDMI version | HDMI 1.4a |
| HDMI resolution | up to 1920*1080/60Hz |
| Support video color format | 24bit/deep color 30bit,36bit |
| Support audio format | DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD HD(HBR) |
| Max bandwidth | 225MHz |
| Max rate | 2.25Gbps |
| Input/Output TMDS signal | 0.5~1.5Volts p-p(TTL) |
| Input/Output DDC signal | 5Volts p-p (TTL) |
| Input cable distance | 15m AWG26 HDMI standard cable |
| Output cable distance | 20M AWG26 HDMI standard cable |
| Max working current | 350mA |
| Operating Temperature range | (-15 to +55C) |
| Operating Humidity range | 5 to 90%RH (No Condensation) |
| Dimension (L x W x H) | 62x51x11Mm |
