| Brand Name: | Olive |
|---|---|
| Weight: | 40g |
| Color: | black |
| size: | 77x56x15 (mm) |
| Transmission Distance: | 15m |
| Place of Origin: | China (Mainland) |
| Model Number: | HDSW3-N |
| Resolutions: | 1080P/60Hz |
| HDMI version: | HDMI1.4a |
| color: | black and white |
| support 3D: | YES |
Quick Details
Specifications
the

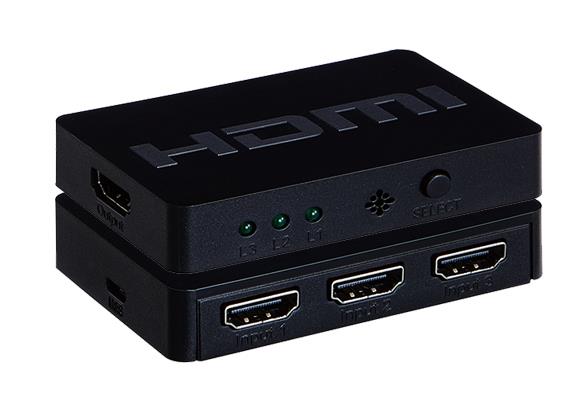

3- Port HDMI switch allows 3 HDMI ports to be switched to a single
Display terminal via remote control or buttons on unit. the switcher can
Be alsoplaced at the end of a long HDMI cable to regenerate the HDMI
Signal. this HDMI Switch supports video formats including 720p, 1080i,
1080p.
Note:No need to install drivers,portable,flexible,plug and play. If power Supply is insufficient,you can also connect the external power adapter.

Note:No need to install drivers,portable,flexible,plug and play. If power Supply is insufficient,you can also connect the external power adapter.
Functions
1.Support 2.5Gbps data rate for tmds clock up to 250MHz
2.Support HDMI1.4a
3.Support 3D
4.Supports highest video resolution 1080p/60Hz
5.Support UXGA,WUXGA
6.Support 8/10/12 bit deep color
7.Support AWG26 HDMI standard cable,Input up to 15metres,output up to 25metres
8.Supports single high definition display for multiple sources, such as DVD Players
and Satellite Receivers, Digital Projectors, A/V Receivers, Set Top Boxes
Specifications
| HDMI Version: | HDMI 1.4a |
| HDMI Resolution: | 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i |
| Support video color format: | 8/10/12 bit deep color |
| Support Audio Format: | DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD |
| Max Bandwidth: | 250MHz |
| Max Baud Rate: | 2.5Gbps |
| Input Cable Distance: | 15m AWG26 HDMI standard cable |
| Output Cable Distance: | 25m AWG26 HDMI standard cable |
| Max Working Current: | 150mA |
| Power Adapter Format: | Input AC (50HZ, 60HZ) 100V-240V; output: DC5V/2A |
| Operating Temperature Range: | -15 to +55 |
| Dimension (L x W x H): | 77x56x15 (mm) |
| Weight: | 40g |
Operating and Connecting:
1. Connect 3 HDMI signal sources into HDMI switch input with 3 HDMI cables
2. Connect 1 HDMI display source into HDMI switch output with 1 HDMI cable
