| Brand Name: | Olive |
|---|---|
| Weight: | 140g |
| Color: | black |
| size: | 128x53x20 (mm) |
| Transmission Distance: | 15m |
| Place of Origin: | China (Mainland) |
| Model Number: | HDSW3 |
| HDMI version: | HDMI 1.4A |
| HDMI resolution: | up to 1080p/60Hz |
| Support: | 8/10/12 bit deep color |
| power supply: | DC5V/1A |
Quick Details
Specifications
HDMI Switcher 3x1 with IR remote control 1080P
Product Description
the 3- Port HDMI switch allows up to 3 HDMI ports to be switched to a single Display terminal via remote control or buttons on unitl. the Switcher can also placed at the end of a long HDMI cable to regenerate the HDMI signal. this HDMI Switch support video formats including 720p, 1080i, 1080p.
Features
Support 2.5Gbps data rate for tmds clock up to 250MHz
Support HDMI1.4A
Support 3D
Supports highest video resolution 1080p/60Hz
Support UXGA,WUXGA
Support 8/10/12 bit deep color
Support AWG26 HDMI standard cable,Input up to 15metres,output up to 25metres
Supports single high definition display for multiple sources, such as DVD Playersand Stellite Receivers, Digital Projectors, A/V Receivers, Set Top Boxes
Remote Control for operational flexibility and easy to control
DC5V/1A power supply
Specifications
| HDMI version | HDMI 1.4A |
| HDMI resolution | 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i |
| Support video color format | 8/10/12 bit deep color |
| Support audio format | DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD |
| Max bandwidth | 250MHz |
| Max baud rate | 2.5Gbps |
| Input cable distance | 15m AWG26 HDMI standard cable |
| Output cable distance | 25m AWG26 HDMI standard cable |
| Max working current | 500mA |
| Power adapter format..Input | AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A |
| Operating Temperature range | (-15 to +55) |
| Operating Humidity range | 5 to 90%RH (No Condensation) |
| Dimension (L x W x H) | 128x53x20 (mm) |
| Weight | 140g |

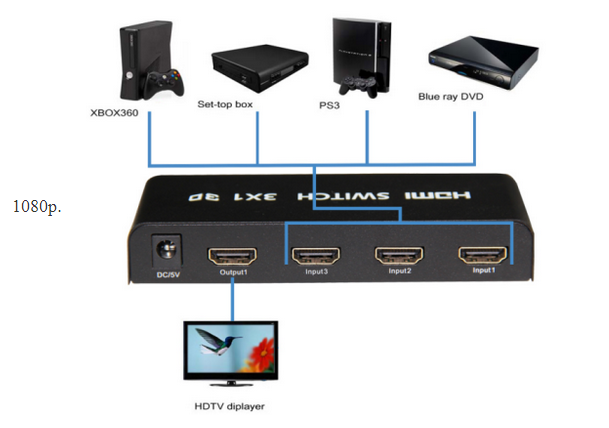

Operating and Connecting
1: Connect 3 HDMI cables from HDMI source device into HDMI switch input.
2: Connect 1 HDMI cable from HDMI source device into DOMI switch output.
3: Connect 5V/1A power adapter to the HDMI switch.
the Package includes:
1. HDMI Switcher
2. IR Remote Control
3. 5V DC Power adapter
4. User Manual
