| Brand Name: | JOHO |
|---|---|
| Color: | see below |
| mesh size: | N/A |
| Mesh wire diameter: | N/A |
| Geotextile: | Geotextile: |
| Model Number: | JH640-28015 |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

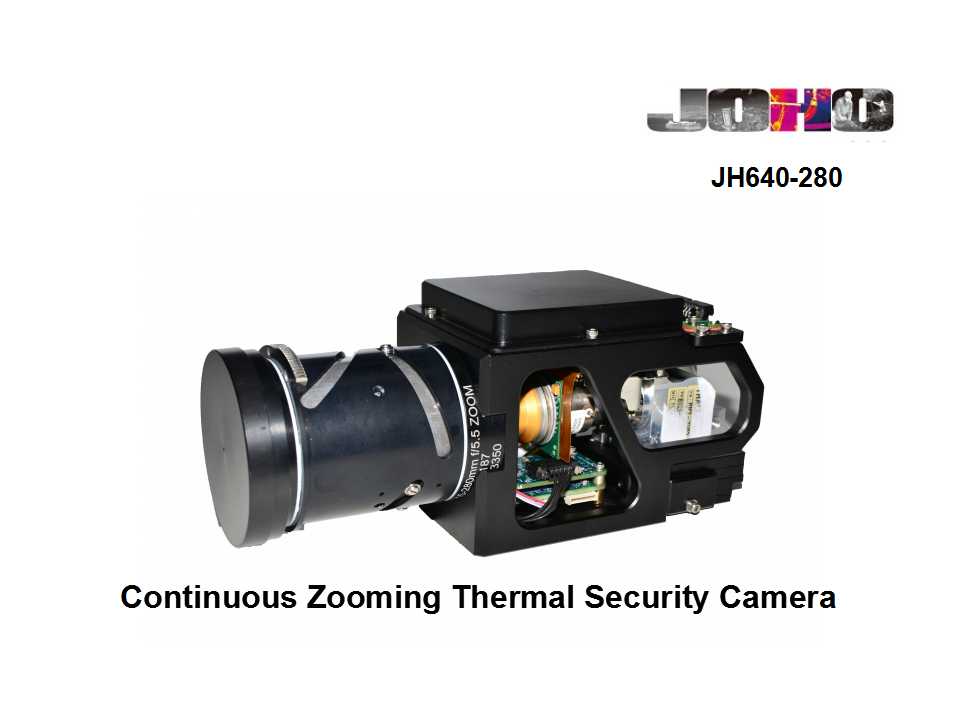

JH640-28015 Mini Thermal Security Camera
JH640-280 Cooled thermal camera is a matured and high reliable product developed by our company independently to meet military standard. It utilizes high-quality Material and top-end Manufacture technology. the thermal camera Is featured by Small size, high sensitivity, Easy to control, long surveillance range, all weather operations aNd Easy for integration. It adopts high sensitivity MWIR detector and 640x512 resolution for crispy image. In addition, Continuous zoom lens 15~280mm can distinguish the human, vehicle and ships at long range.
Technical Specification
Technical Specification
| Detector Parameters | |
| Detector type | Cooled FPA HgCdTe |
| Pixels | 640512, 15m15m |
| Spectral Range | 3.7m~4.8m |
| NETD | 25mK@25C |
| Cooling | Sterling |
| Optics Parameters | |
| Focus Length | 15~280mm continuous zoom |
| F number | 5.5 |
| FOV | 1.97(H)1.58(V) ~36.5(H)29.2(V) |
| Image Presentation | |
| Video output | PAL |
| Frame frequency | 30Hz (50Hz on request) |
| Digital video | 14bit LVDS |
| Brightness & Contrast | Auto/Manual |
| Polarity | BH&WH |
| E-zoom | 2/4 |
| Image enhancement | Yes |
| Image inverted | Yes |
| Power parameters | |
| Power supply | 24~36VDC |
| Power consumption | 10w@25C |
| Environmental Parameters | |
| Operating temperature | -32C~+60C |
| Storage temperature | -40C~+70C |
| Vibration test | GJB150.16-86/MIL-STD-810F-514.5 |
| Shock test | GJB 150.18-96 /MIL-STD-810F-516.4 |
| Physical Parameters | |
| Weight | 1.6kg |
| Dimension | 218mm98mm89mm |
| Color | Oxide black |
