| Brand Name: | JOHO |
|---|---|
| Color: | see below |
| mesh size: | N/A |
| Mesh wire diameter: | N/A |
| Geotextile: | N/A |
| Model Number: | JH602-1100 |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

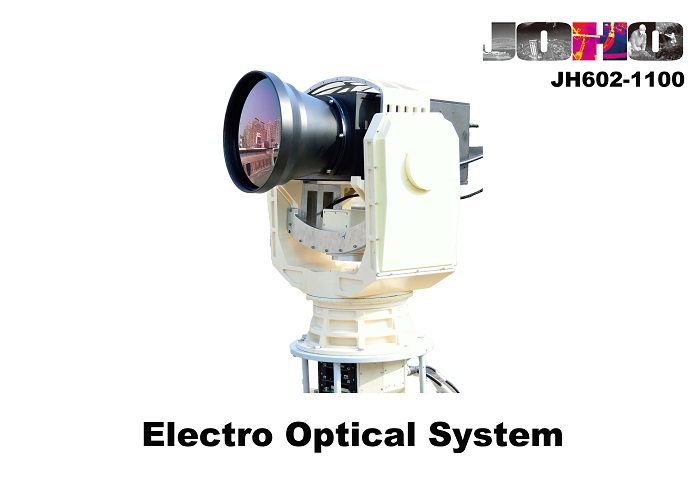

Long Range Surveillance Electro Optical Surveillance System EOSS JH602-1100
JH602-1100 electro optical surveillance system is equipped with a high resolution 640x512 MCT MWIR cooled thermal camera with 1100~110mm continuous zoom lens which
Offers super long range security and surveillance application, capable of observation,
Recognition, aiming and tracking target at day and night. JH6021100 system can either work
Independently for ship navigation at night, or slaving to radar by connected with CMS.
FUNCTIONAL AREA
N Day and night search targets in specified area
N Day/night detection, recognition and identification on specified target
N Isolate carrier (ship) disturbance, stabilized the LOS (line of sight)
N Manual/auto tracking target
N Real-time output and display LOS area
N Real-time report captured target azimuth angle, elevation angle and angular speed information.
N System POST (power-on self-test) and feedback POST result.
TECHNICAL DATA
| THERMAL CAMERA | |
| Detector | Cooled MCT FPA |
| Pixel | 640512 |
| Spectral band | 3.7m~4.8m |
| FOV | 0.50.4~54 with 1100~1100mm continuous zoom lens |
| Optical-axis parallelism | 1pixel |
| Electronic zoom | 2 (optional: 4) |
| SERVO | |
| Stabilization accuracy | 0.15mrad(1) |
| Turret direction range | Azimuth: 0~330 (optional n360); Elevation: -20~+75 |
| Turret maximum angle speed | Azimuth: >50/s; Elevation: >50/s |
| Tracking mode | CTW, CTB, COT |
| Video signal format | Standard CCIR |
| Data rate | 50Hz,100Hz |
| Communication | RS422 |
| POWER | |
| Input voltage | DC24V/15A, 220VAC |
| Consumption | 96W (average); 240W (maximum) |
| ENVIRONMENTAL | |
| Operating temperature range | -40C~+60C |
| Storage temperature range | -50C~+70C |
| PHYSICAL | |
| Dimension | 700mm 700mm 1050mm (system) 400mm 300mm 190mm (CDU) |
| Weight | Approx. 127kg (Camera); 10kg(CDU) |
